PROWIN Rubber Sheet
- RUBBER SHEET YOU CAN TRUST -
Natural rubber (NR) sheet
Product Name : Natural Rubber Sheet
Product Code : DNR150H65B
Product Grade : Basic Grade
Polymer : NR
Color : Black
Size : 1 mm x to 25 mm
Width : 1 meter, 1.2 meter, 1.4 meter, 1.5 meter
Status : In Stock
Mechanical and physical properties
Density (g / cm3) : 1.50
Tensile strength (MPa) : 6
Elongation at break (%) : 250
Hardness: 65 +/- 5 Shore A
Tear resistance (N / mm): 18
compression recovery (72 hours tested at 70 °C) : 40%
PROWIN basic grade natural(NR) rubber sheet - DNR150H65B
Basic natural rubber sheet made from 100% raw natural rubber which can better withstand scratches, bumps and friction, it's excellent elongation and tensile strength makes it widely used in mining rubber lining, gasket, abrasion resistance, bumper impacts absorbance, rubber lining for chemical tank.
Hardness - 65 +/- 5 Shore A
Tensile strength - 6Mpa
Surface - Smooth

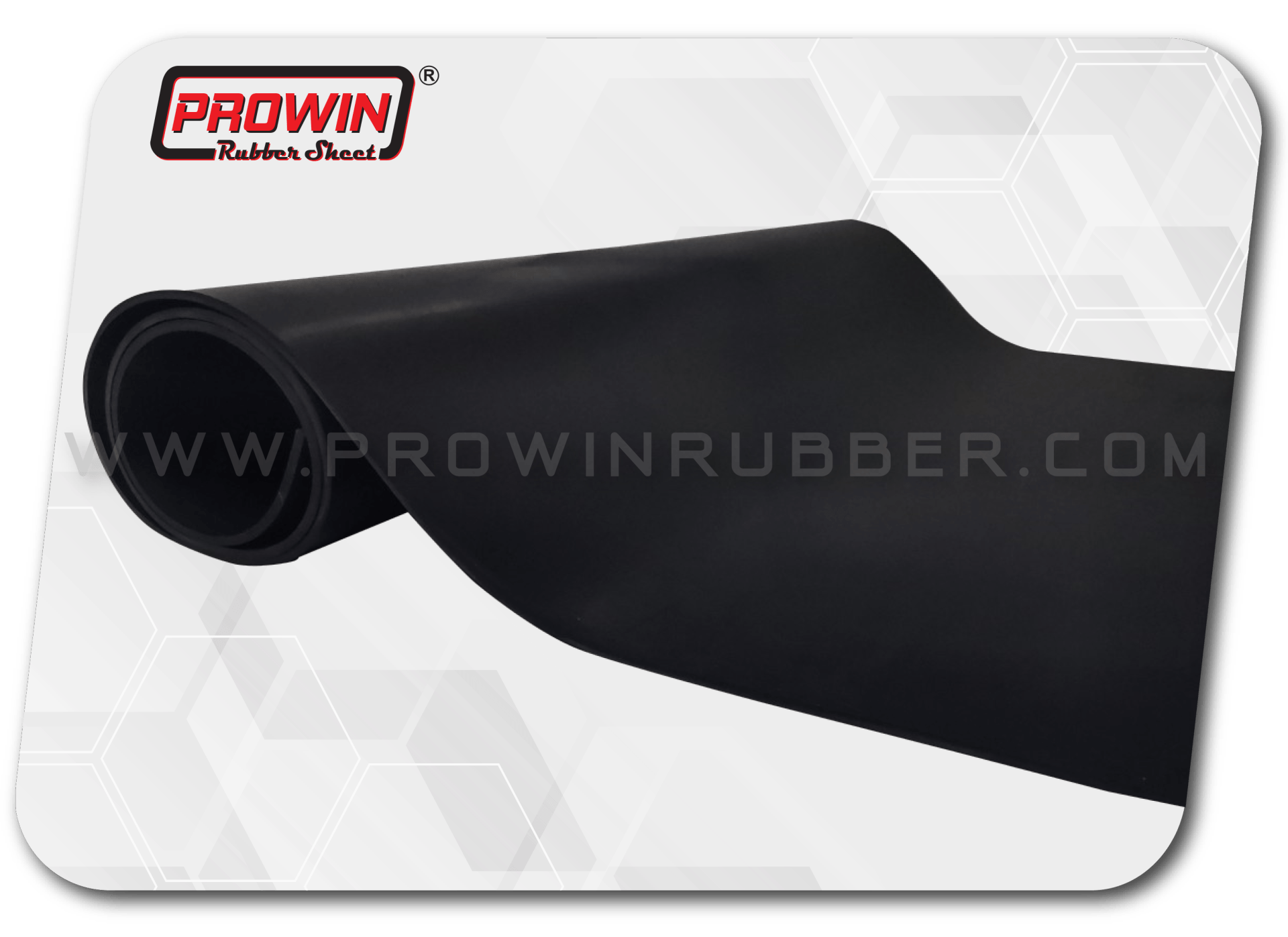

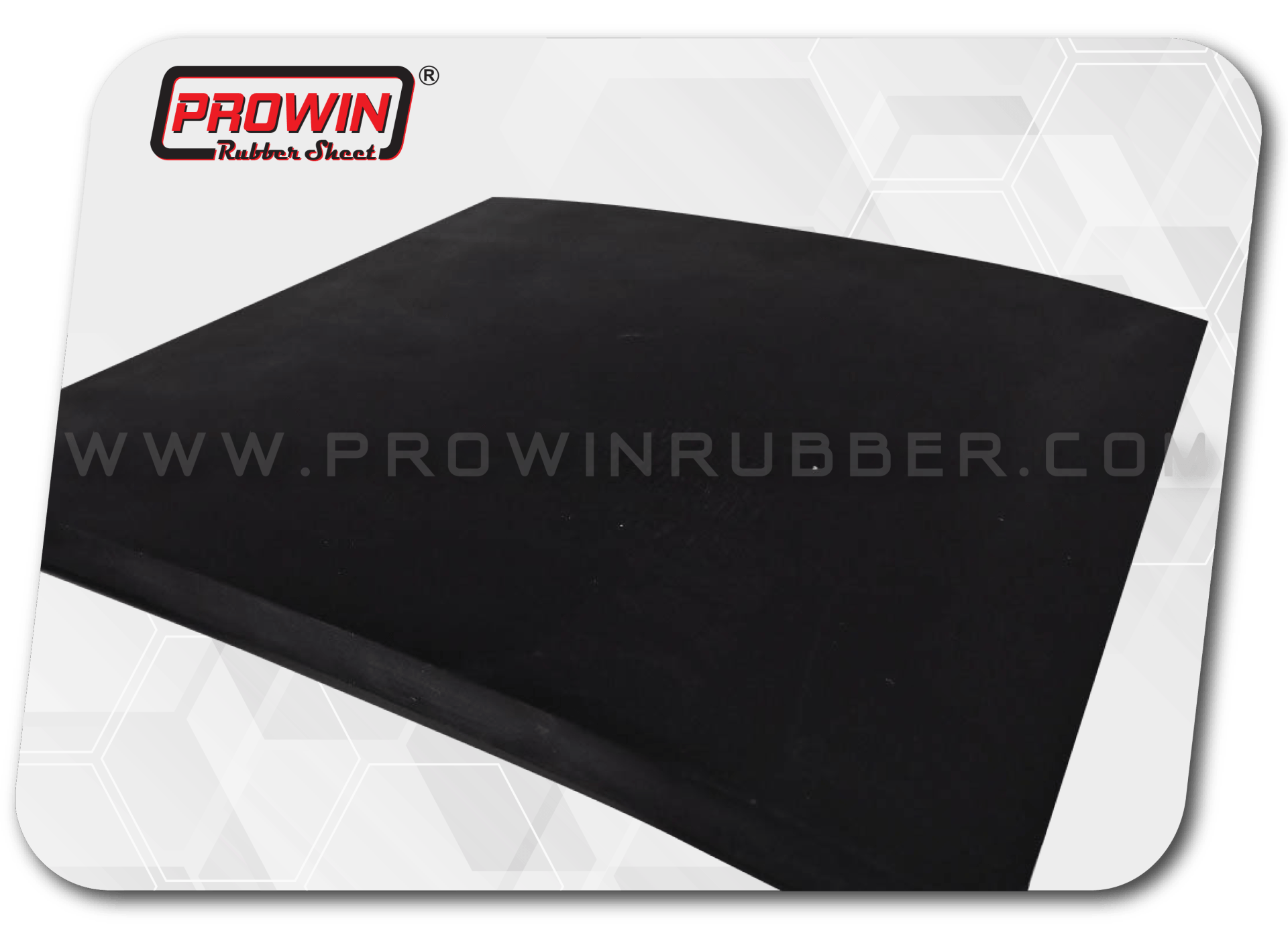

Rubber sheet sample image

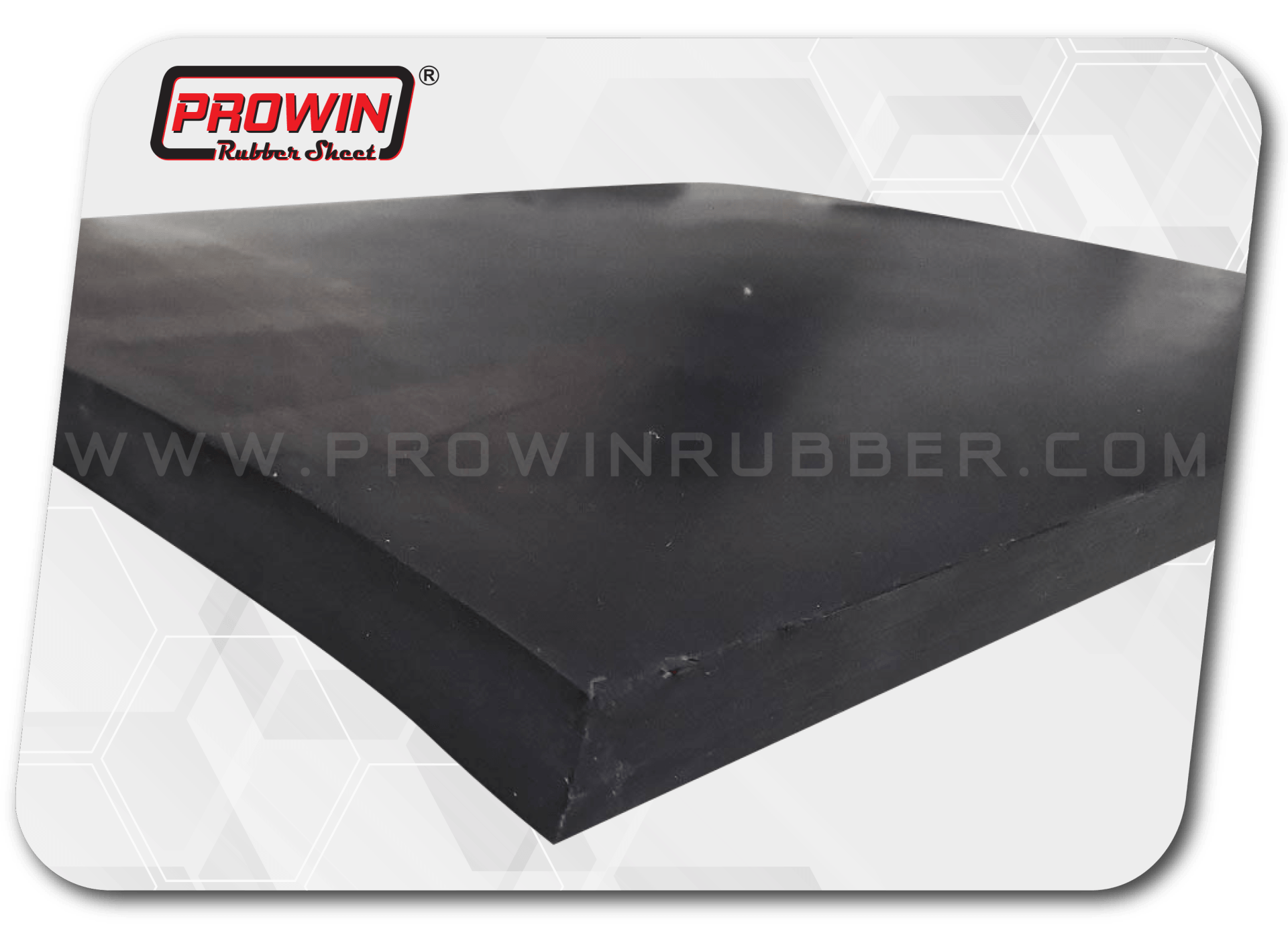

Side view

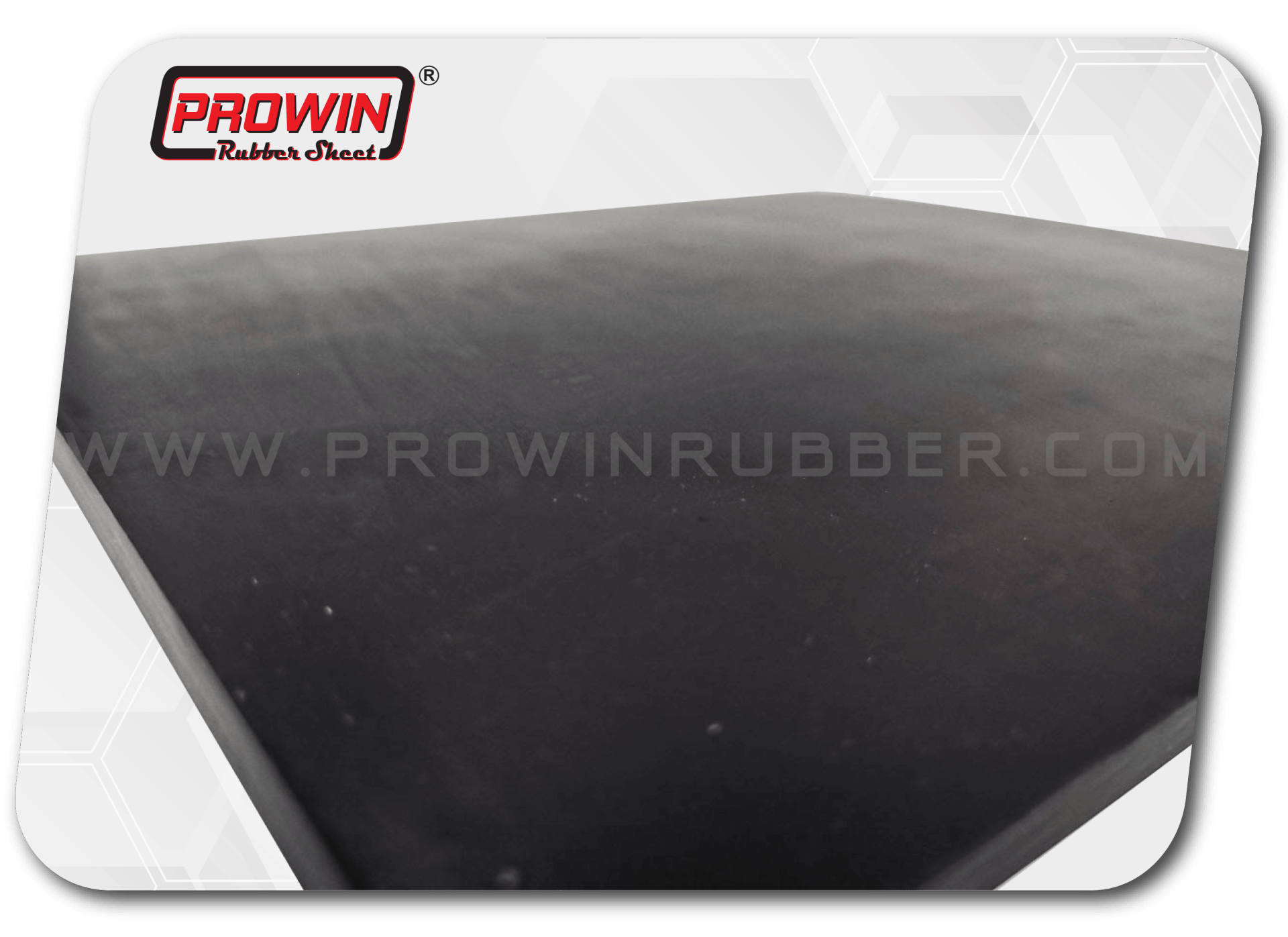

Sample image of rubber surface
Good resistance to scratches, bumps, friction, excellent impact resistance, cutting and tearing, excellent tensile strength, high flexibility
Tank coating applications, slurry handling, rubber lining, rubber chute, skirt board, sand blasting protection.
Operating temperature :
- Low temperature range: -1 °C to -20 °C
- Continuous low temperature : -20 °C
- High temperature range: 60 °C to 80 °C
- Continuous high temperature : 80 °C
Performance :
Flammability resistance : 0
Dry and wet abrasion : 6
Gas permeability : 3
Ozone resistance : 1
Oxidation resistance : 4
Weather resistance : 1
Water resistance : 6
Score rate :
6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
Related Products (Basic Grade, NR Rubber Sheet)

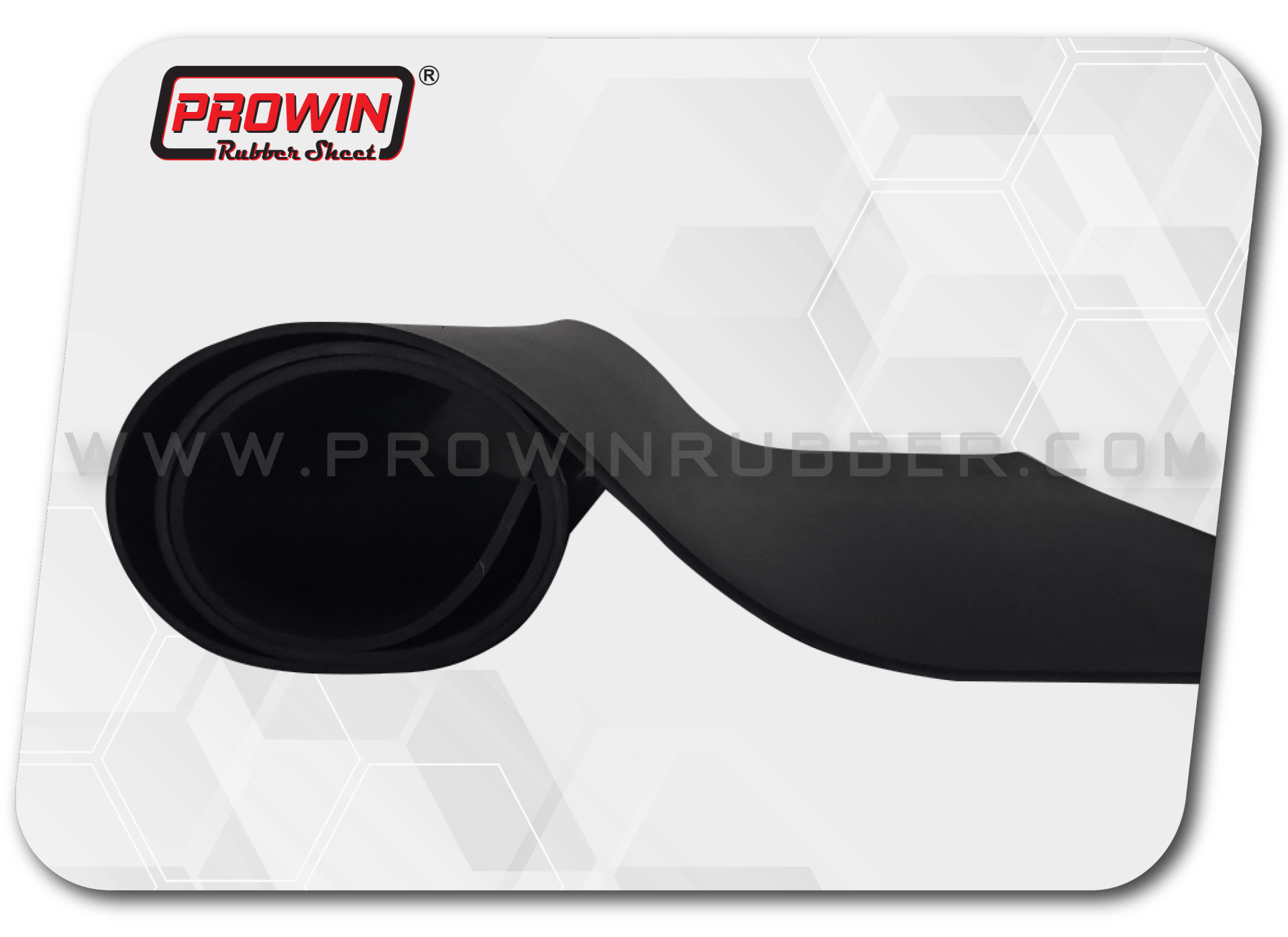

EPDM Rubber Sheet (DEP151H65B)
Hardness range: 65 +/- 5 Shore A
NBR Rubber Sheet (DNBR152H65B)
Hardness range: 65 +/- 5 Shore A

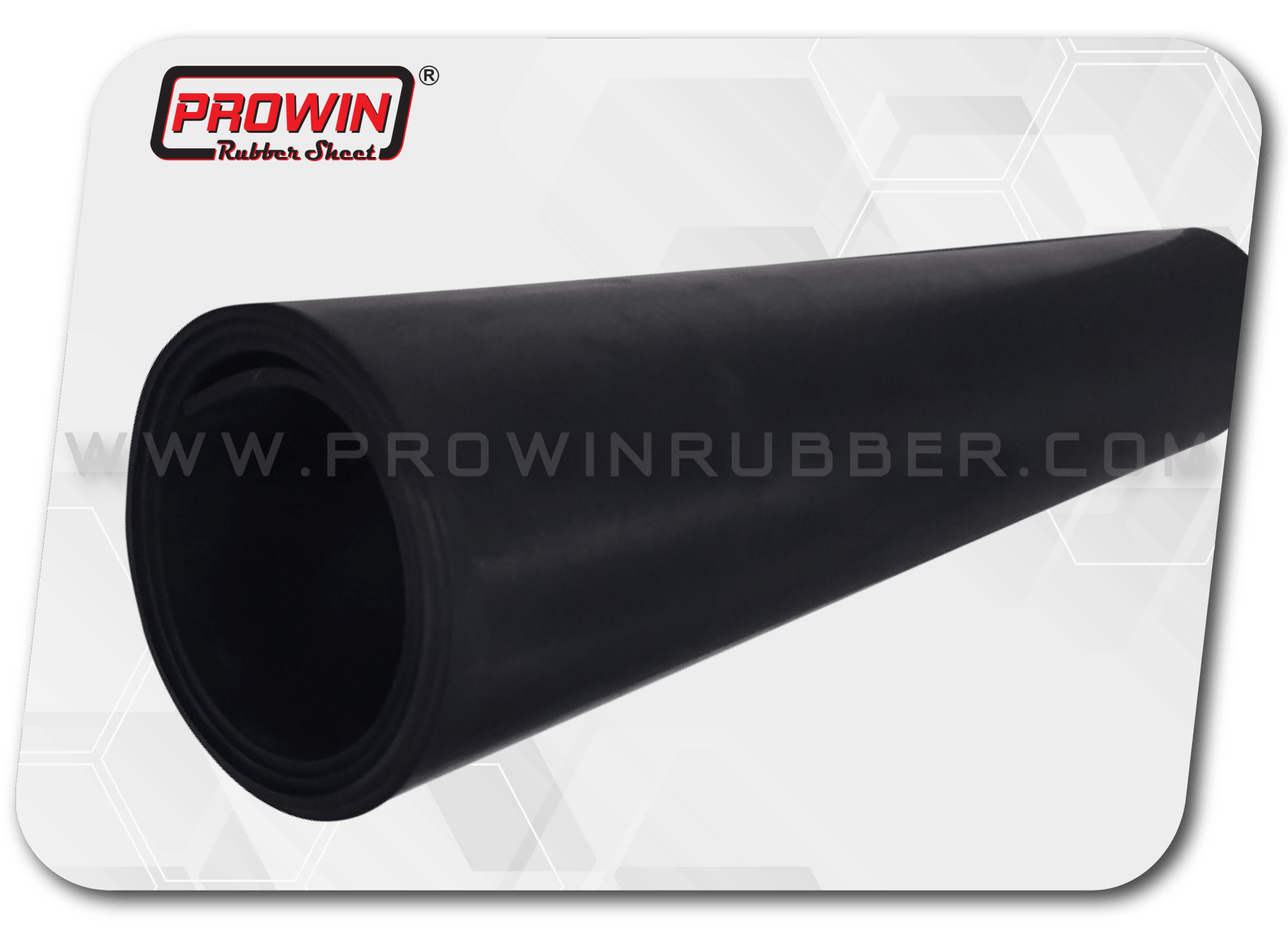

CR Rubber Sheet (DCR153H65B)
