Superior Grade: NBR Rubber Sheet (DNBR145H65B)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Nitrile Butadiene Rubber (NBR) Sheet
Product Name : Nitrile Butadiene（NBR） Rubber Sheet Product Code : DNBR145H65B
Product Grade : Superior Grade
Polymer : NBR/NR
Color: Black
Size : 1 mm to 25 mm
Width : 1 meter, 1.2 meter
Status: In Stock
Mechanical and physical properties
Density (g/cm3) : 1.45
Tensile strength (MPa) : 5
Elongation at break (%) : 300
Hardness : 65 +/- 5 Shore A
Tear resistance (N/mm) : 17
Compression recovery (72 hours at 70 °C) : 40%
PROWIN superior grade Nitrile Butadiene(NBR) rubber sheet - DNBR145H65B
Superior Nitrile Butadiene(NBR) rubber sheet is made using high grade of raw natural rubber and high quality chemical manufacturer, this NBR has excellent resistance to mineral oil, is widely used in oi and gas industry, power transformer and power plant. With temperatures ranging from -30 to 125 degree celsius NBR is also widely used in automotive seal and gasket.

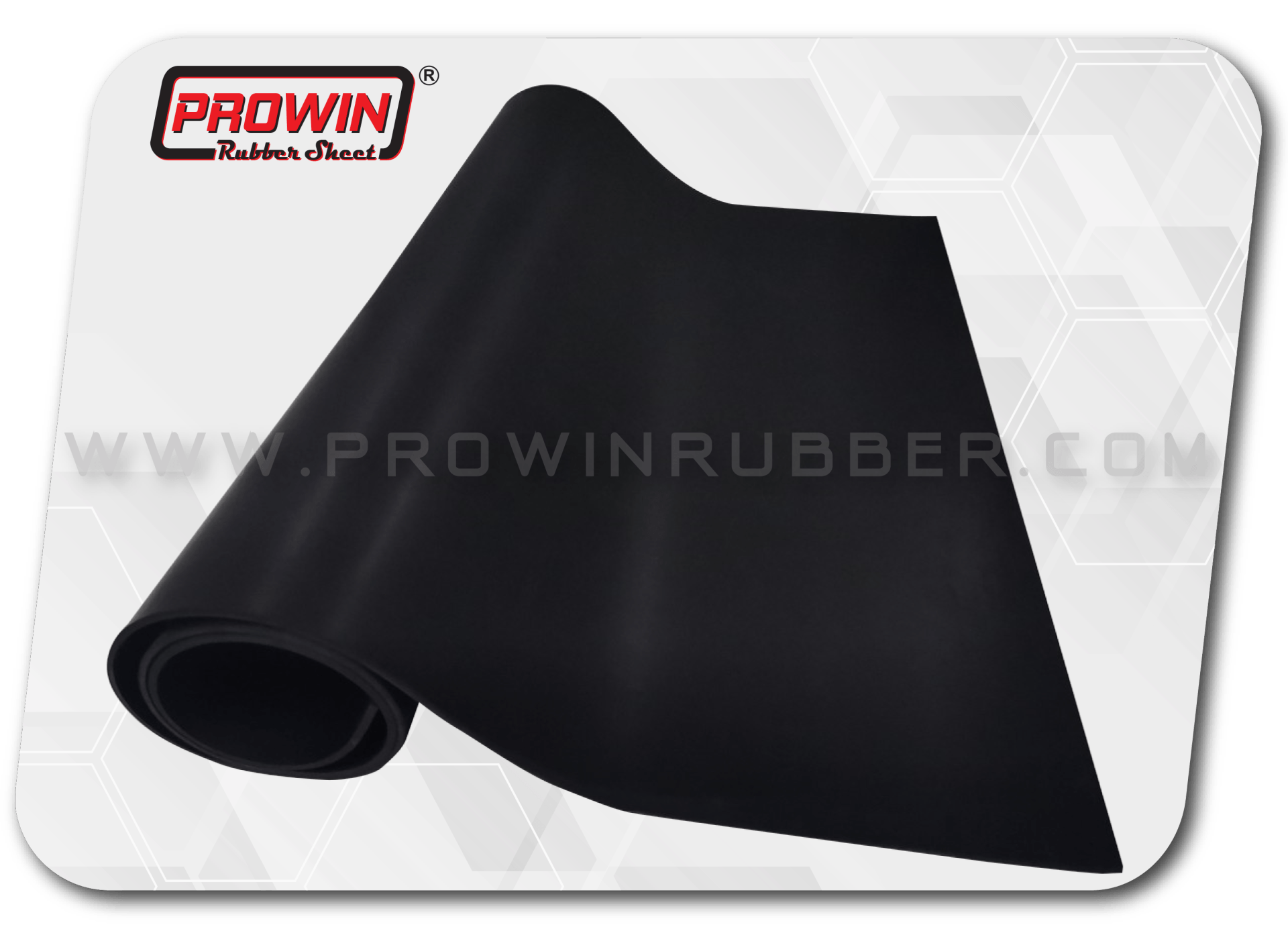

Rubber sheet sample image
Side view
Sample image of rubber surface
Excellent oil resistance, good resistance to heat and aging and slow deterioration, good gas permeability, resistant to scraping, impact, and friction
Application :
Carburetor and diaphragm applications, fuel pumps,rubber lining for chemical tanks, seals and gaskets,oil tubing for vehicles.
Operating temperature :
- Low temperature range : -1 °C to -30 °C
- Continuous low temperature : -30 °C
- High temperature range : 80 °C to 125 °C
- Continuous high temperature : 125 °C
Performance :
Flammability resistance : 2
Gas permeability : 3
Ozone resistance : 5
Oxidation resistance : 5
Weather resistance : 6
Water resistance : 6

Score rate :
6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
