Superior Grade: FKM-Viton Rubber Sheet (DFKM1959H75B)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Superior Grade: FKM-Viton Rubber Sheet
Product Name: FKM-Viton Rubber Sheet Product Code: DFKM1959H75B Product Grade: Superior Grade High quality rubber sheet Polymer: Fluoropolymer Color: Black Status: Made to order
Mechanical and physical properties Density (g / cm3): 1.95 Tensile strength (MPa): 9 Elongation at tear point (range%): 250% Hardness: 75 +/- 5 Shore A Tear resistance (N / mm): 18 compression recovery (72 hours tested at 70 ° C heat): 40%
PROWIN Rubber Sheet: FKM-Viton Rubber Sheet (DFKM1959H75B) FKM & VITON is a fluoroplastomer. (Fluoroelastomer) created for the needs of today's most demanding applications. Highly resistant to acid, hot water, low pressure steam Chlorine solvent Aliphatic Hydrocarbon Compounds and Aromatic Petroleum Oils Ozone fuel, environment, weather, lubricating oil, vegetable oil, animal oil, etc. With applications in a wide temperature range of -30 degrees Celsius to 260 degrees Celsius, FKM & VITON is well known for their performance. High work of tires That is resistant to hydrocarbons, chemicals, oils and high heat. It also has excellent resistance to pressure, especially at high temperatures. This type of rubber sheet is widely used in oil industry, airport, automobile industry. Aviation industry Chemical industry And usage in various environments Violent Or high change. PROWIN Rubber Sheet FKM-Viton Rubber Sheet (DFKM1959H75B) Superior Grade is a high quality rubber grade of rubber sheet that uses genuine pure rubber in production. Resulting in the use of this grade of high quality rubber And is the only production grade for FKM-Viton tires
Rubber sheet sample image

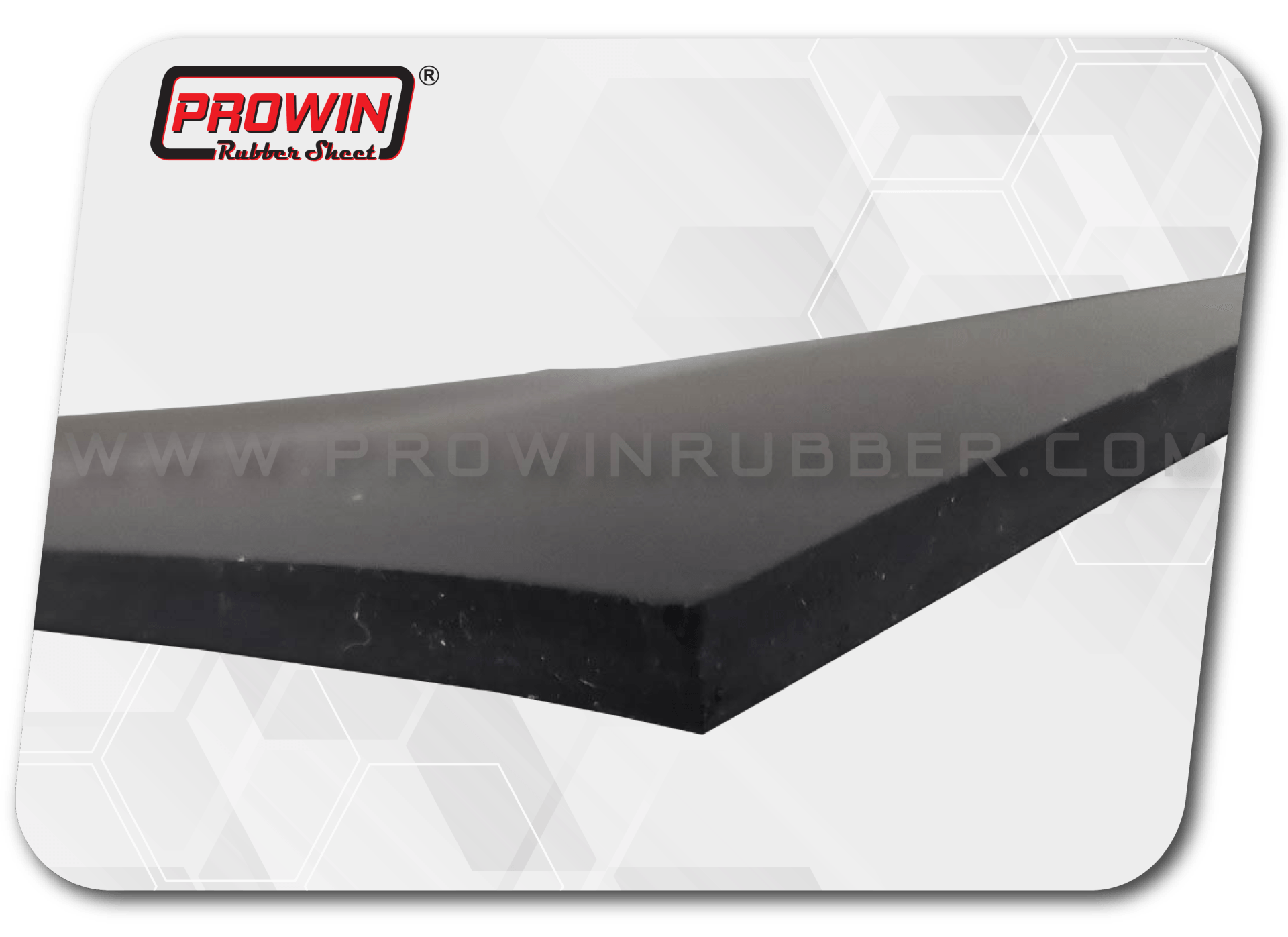

Preview of the rim

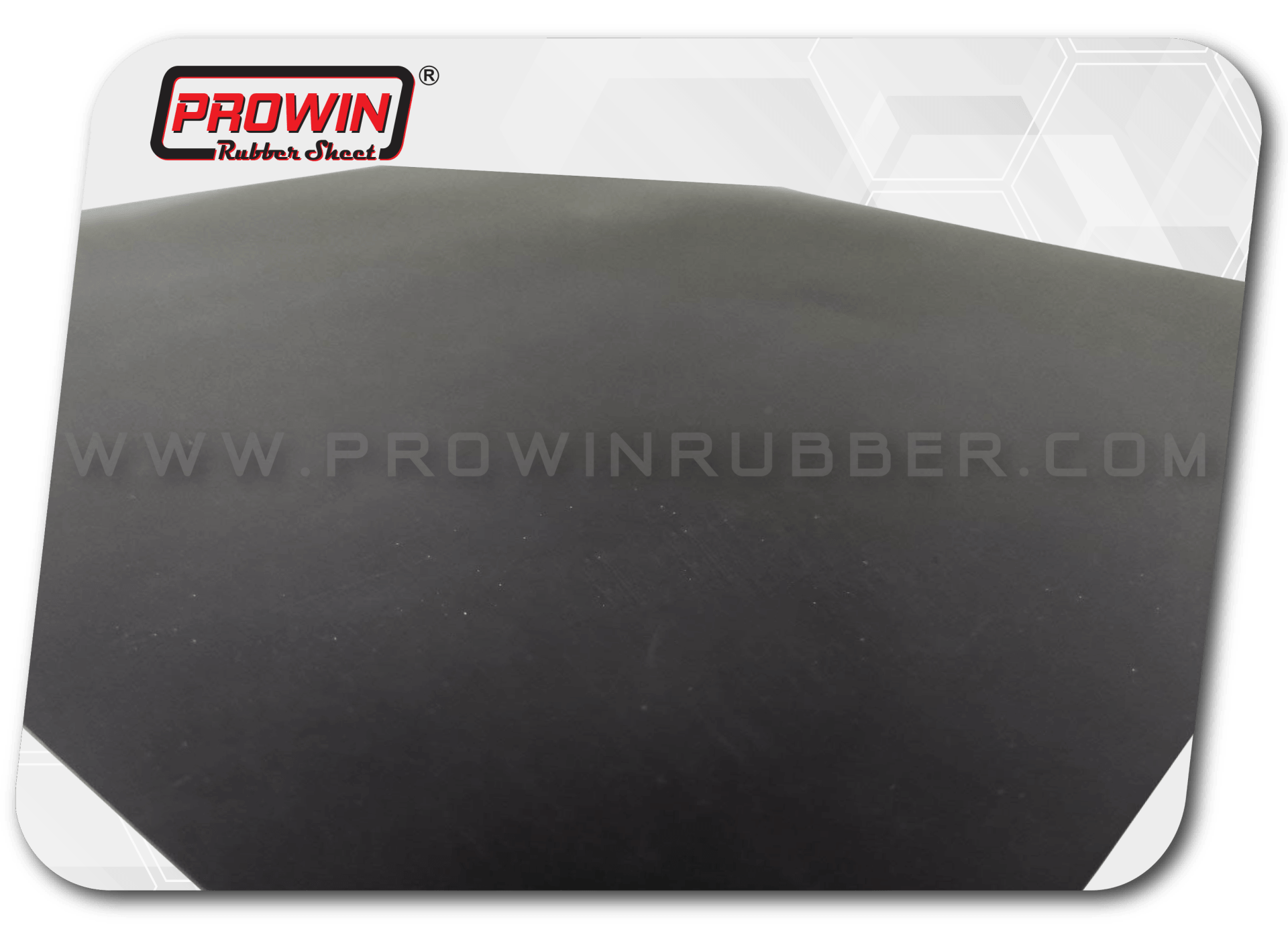

Sample image of rubber surface contact
Excellent chemical resistance, excellent heat resistance, can be used as rubber seal Even in heavy use, excellent pressure resistance, permeability of liquids, acids, alkalis, various harsh chemicals, good fire resistance
Automotive industry, chemical industry, air industry And space, liquid energy systems, railway energy systems, safety management, fuel systems, various devices
Properties of operating temperature range Operating in the low temperature range: -1 ° C to -30 ° C Operating in the continuous low temperature range (stable): -30 ° C Operating in the high temperature range: 240 ° C to 260 ° C use in continuous high temperature range (constant): 260 ° C
Performance Flammability resistance: 6 Gas permeability: 6 Ozone resistance: 6 Oxidation resistance: 6 Weather resistance: 6 Water resistance: 6 Score rate: 6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
