PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Chloroprene Rubber Sheet (CR-Neoprene)

Product Name : Chloroprene(CR) Rubber Sheet

Product Code : DCR145H65B

Product Grade : Superior Grade

Polymer : CR/NR

Color : Black

Size : 1 mm to 25 mm

Width : 1 meter, 1.2 meter, 1.4 meter, 1.5 meter

Status: In Stock

Mechanical and physical properties

Density (g/cm3) : 1.45

Tensile strength (MPa) : 5

Elongation at break (%) : 300

Hardness : 65 +/- 5 Shore A

Tear resistance (N/mm) : 17

Compression recovery (72 hours at 70 °C) : 40%

PROWIN superior grade Chloroprene(CR) rubber sheet - DCR145H65B

Superior grade Choroprene(CR) is made using high grade of raw natural rubber and high quality chemical, this CR has excellent wear resistance properties, excellent weather, ozone and UV resistance, it has been commonly use as bridge mounting, sea water corrosive application and rooftop application.

one of CR unique characteristic is flame retardant which it slow the flame rate and put off when fire is removed, this is main and only choice for circuit breaker, DB box and other electrical appliances.

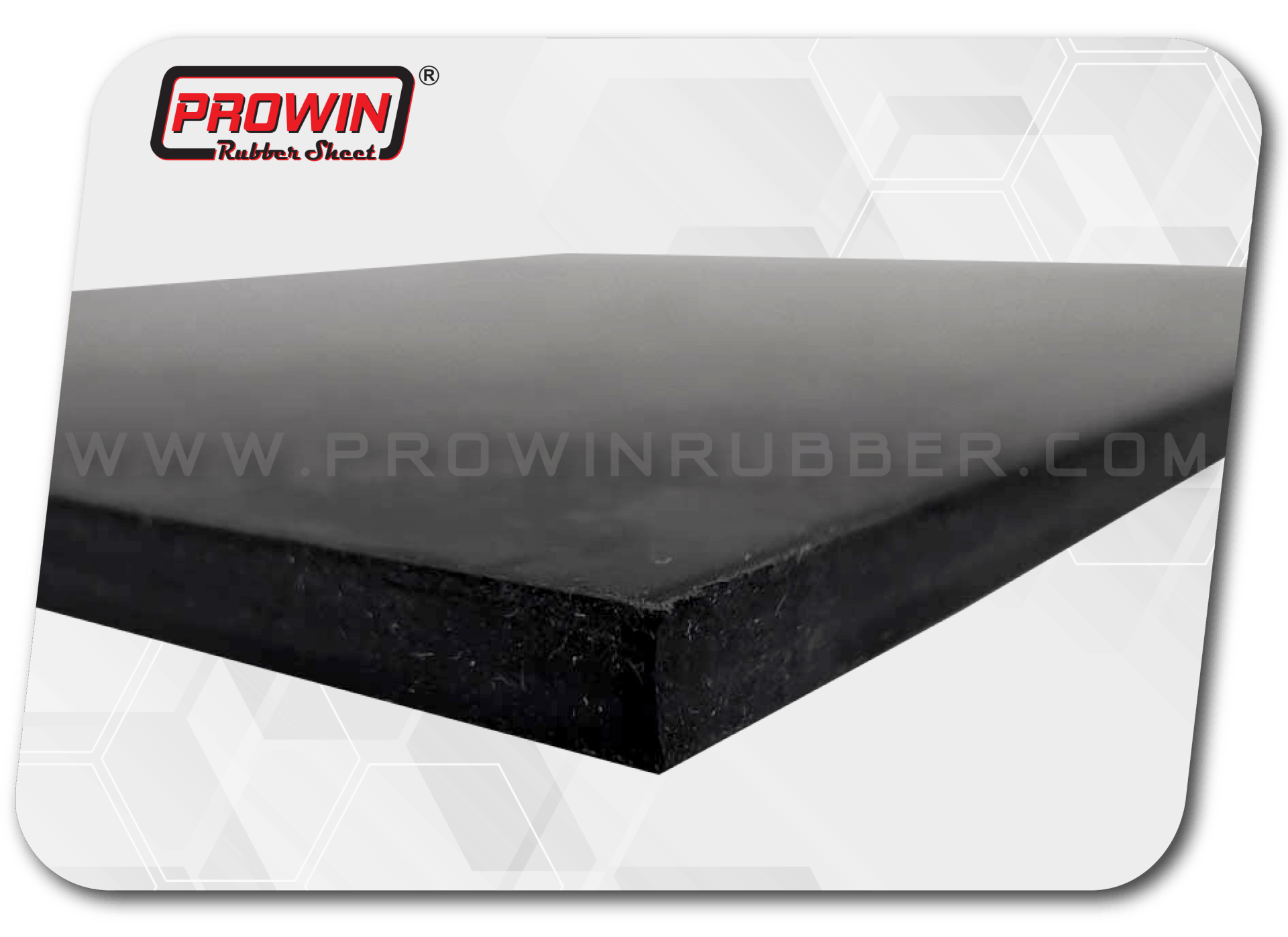

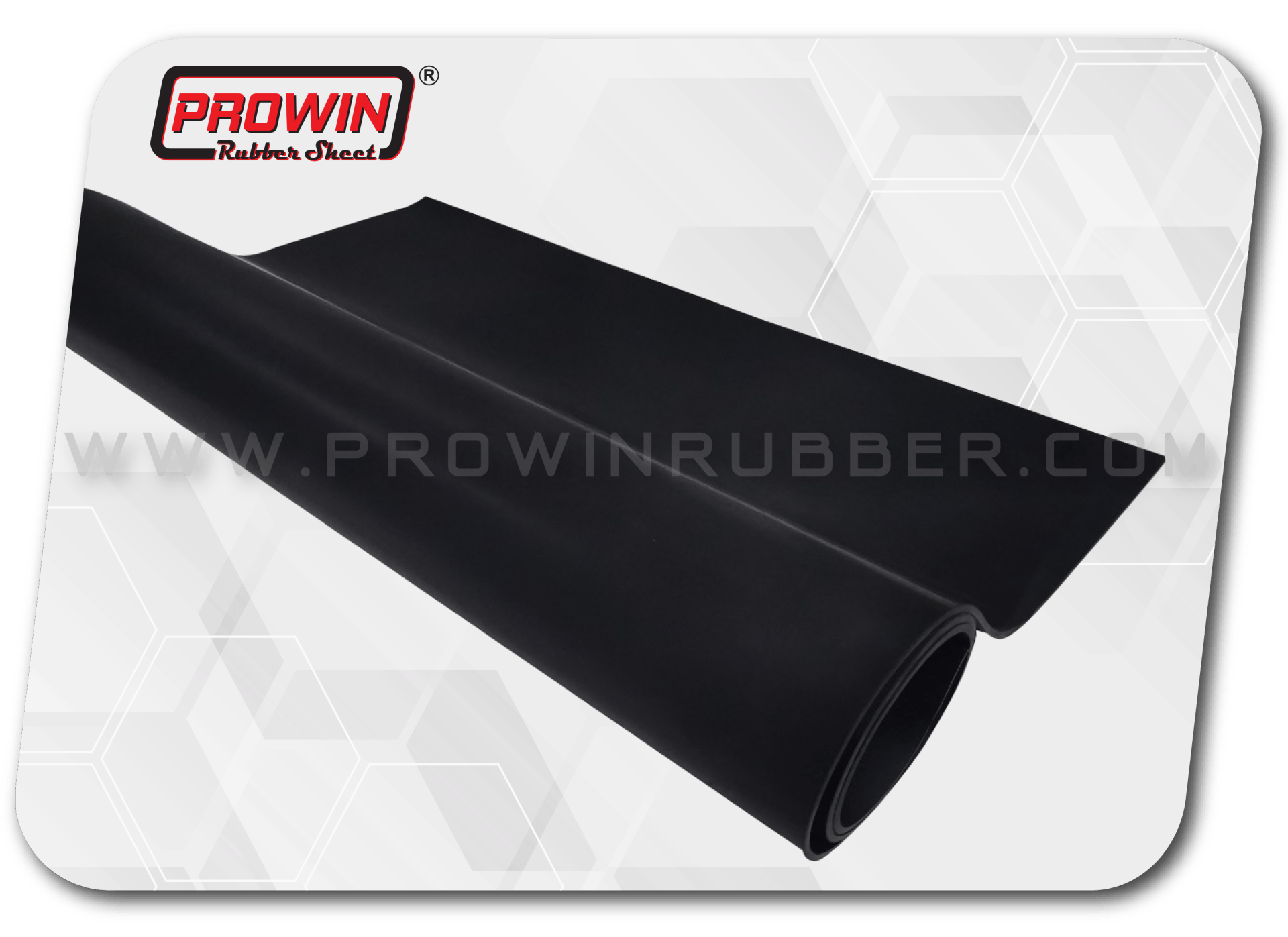

Rubber sheet sample image

Side view

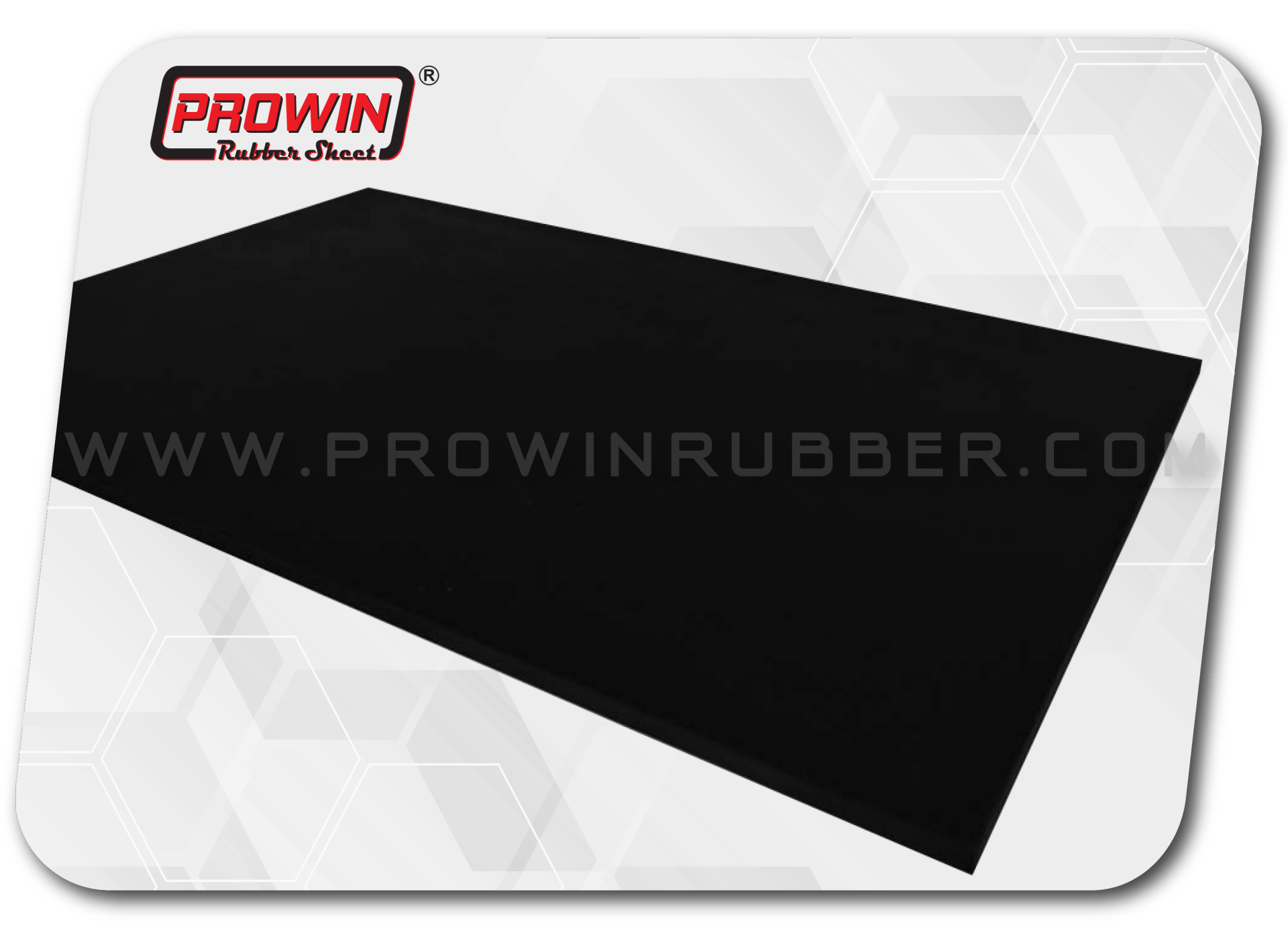

Sample image of rubber surface

Excellent ozone,UV, weather resistance, flame retardant, good abrasion and crack resistance, moderate oil resistance, acid and alkali resistance, good abrasion resistance

Applications :

Rubber lining, rooftop application, bridge mounting, gaskets and seals, salt sea water equipment

Operating temperature :

- Low temperature range : -1 °C to -30 °C

- Continuous low temperature : -30 °C

- High temperature range : 80 °C to 100 °C

- Continuous high temperature : 100 °C

Performance

Flammability resistance : 5

Gas permeability : 3

Ozone resistance : 5

Oxidation resistance : 5
