Premium Grade: Peroxide Cured EPDM Rubber Sheet (DPEP110H60B)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Peroxide Cured EPDM Rubber Sheet
Product Name : Peroxide Cured EPDM Rubber Sheet
Product Code : DPEP110H60B
Product Grade : Premium Grade
Polymer : EPDM
Color : Black
Size : 1 mm to 25 mm
Width : 1 meter, 1.2 meter, 1.4 meter, 1.5 meter
Status : Made to Order
Mechanical and physical properties
Density (g/cm3) : 1.10
Tensile strength (MPa) : 15
Elongation at break (%) : 400
Hardness : 60 +/- 5 Shore A
Tearing resistance (N / mm) : 50
Compression recovery (72 hours at 70 °C) : 20%
PROWIN premium peroxide cured Ethylene Propylene Diene Monomer(EPDM) rubber sheet - DPEP110H60B
Premium peroxide cured EPDM rubber sheet beside high quality chemical manufacturer this EPDM is cured with peroxide. EPDM peroxide cured possess excellent chemical and thermal resistance compared to sulfur cured, improved compression set and aging resistance. High heat and steam resistance up to 150 °C, excellent in UV, ozone, and extreme weather resistance. Premium EPDM also compliance with AZ/NZ 4020 and BS EN 681-1, it's stable composite make it safe for contact with drinking water when submerged under water.

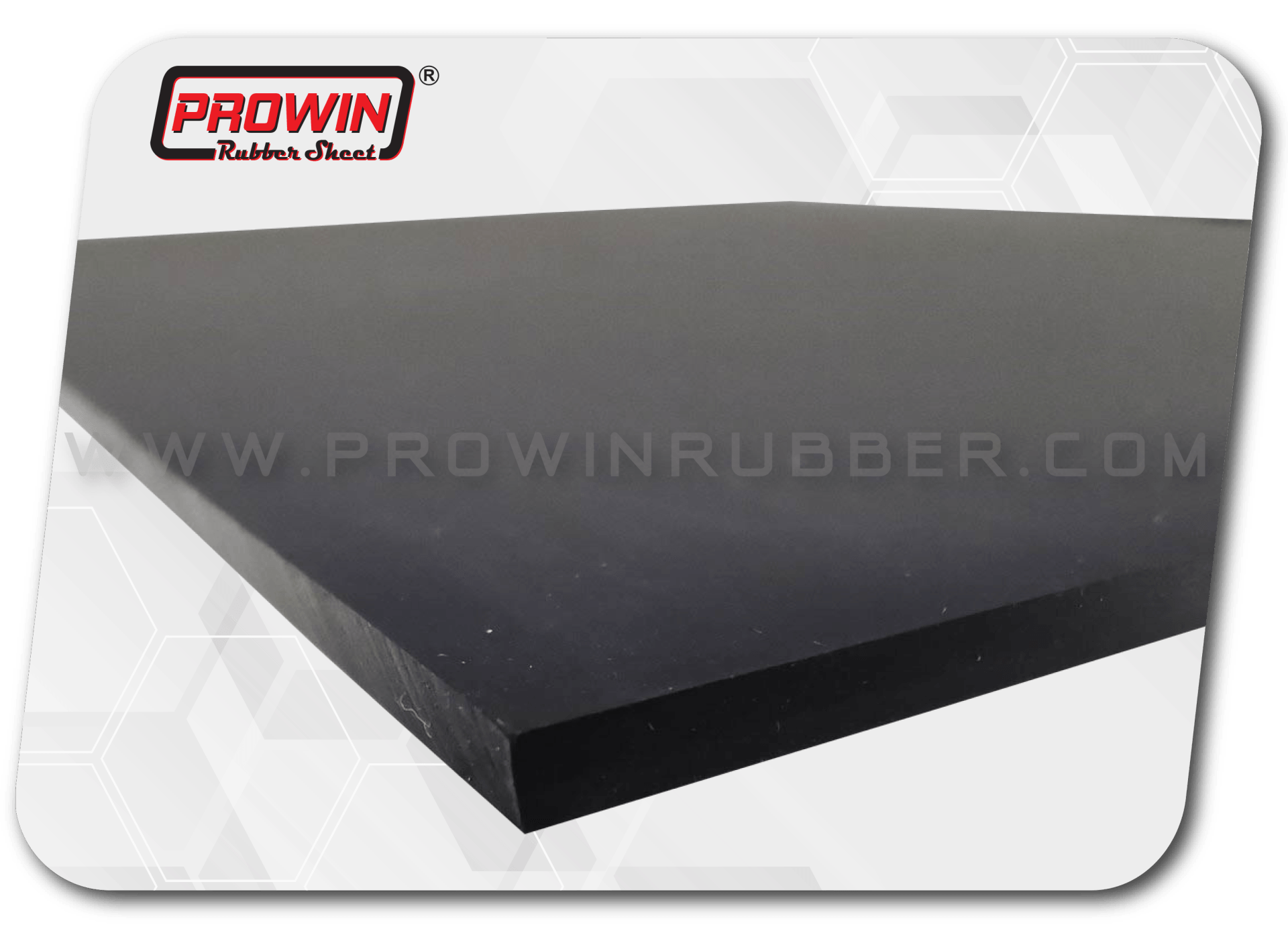

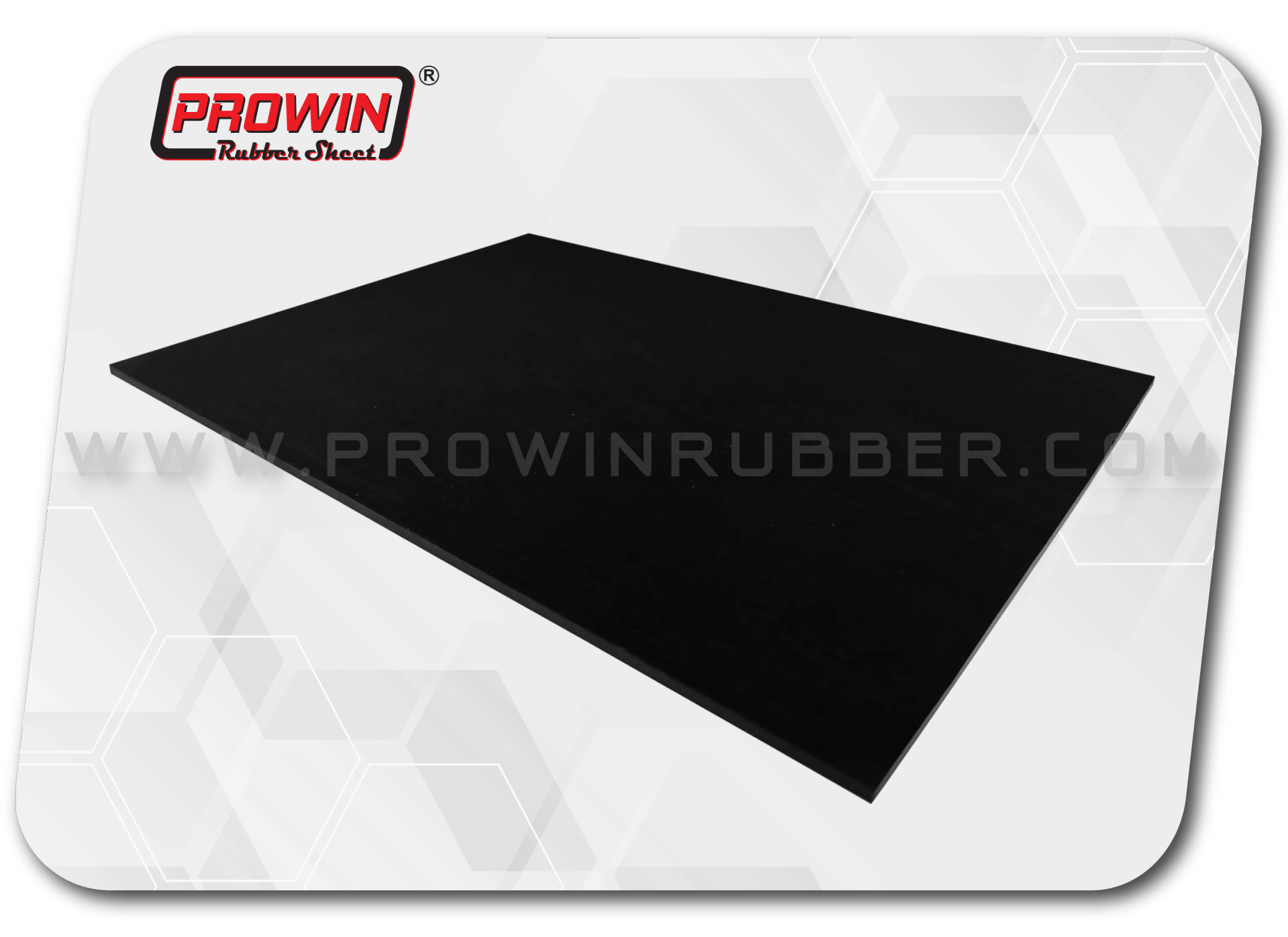

Rubber sheet sample image
Side view

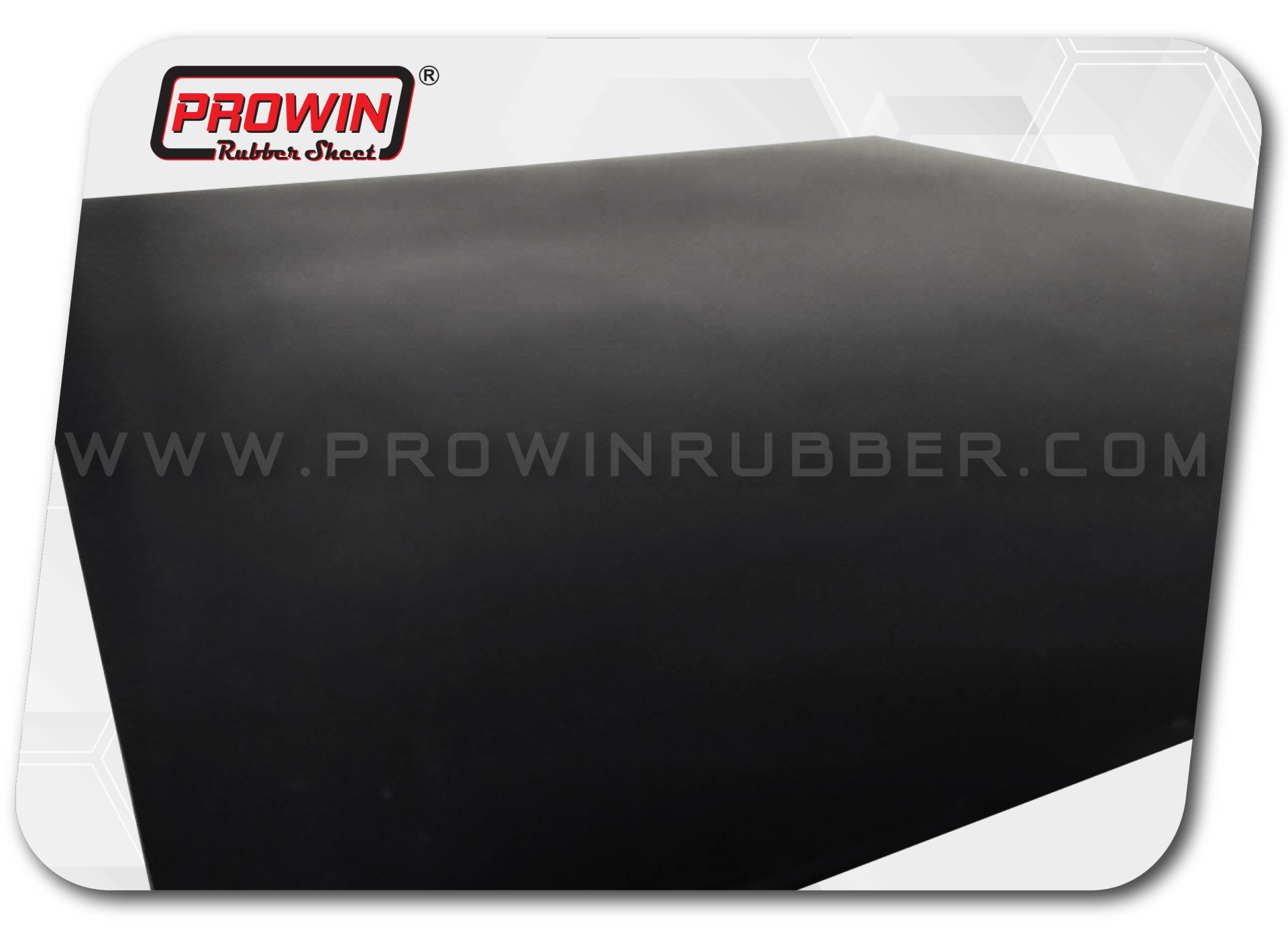

Sample image of rubber surface
Low compression set, working temperature up to 150 degrees Celsius, suitable for use with water Or safe drinking water for food. Excellent UV, ozone and extreme weather resistance.
Applications :
Automobile industry, chemical industry, aviation industry, liquid energy, drinking water industry, automotive power transmission, fuel systems, food electrical appliances.
Operating temperature :
- Low temperature range : -1 °C to -30 °C
- Continuous low temperature : -30 °C
- High temperature range : -30 °C to 150 °C
- Continuous high temperature : 150 °C
Performance
Flammability resistance : 2
Gas permeability : 4
Ozone resistance : 6
Oxidation resistance : 6
Weather resistance : 6
Water resistance : 6

Score rate :
6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
