EPDM White Rubber Sheet (DEP151H65W)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Ethylene Propylene Diene monomer Rubber Sheet (EPDM)
Product Name : Ethylene Propylene Diene monomer(EPDM) Rubber Sheet
Product Code : DEP151H65W
Product Grade : Basic Grade
Polymer : EPDM/NR
Color : White
Size : 1 mm to 25 mm
Width : 1 meter, 1.2 meter
Status : In Stock
Mechanical and physical properties
Density (g/cm3) : 1.51
Tensile strength (MPa) : 5
Elongation at break (%) : 250
Hardness : 65 +/- 5 Shore A
Tear resistance (N/mm) : 17
Compression recovery (72 hours at 70°C) : 40%
PROWIN basic white Ethylene Propylene Diene monomer (EPDM) rubber sheet - DEP151H65W
Basic white EPDM Rubber sheet has good resistance to heat, ozone and UV, suitable for outdoor applications, this is widely used in construction and roofing industries, automotive seal, gasket and others related applications. Beside EPDM also has good chemical resistance that make it good material for chemical tank rubber lining. EPDM can provide good sound insulation and cushioning for vibrating machinery. Basic white EPDM is widely used in food processing, clean chemical tank rubber lining and gasket.

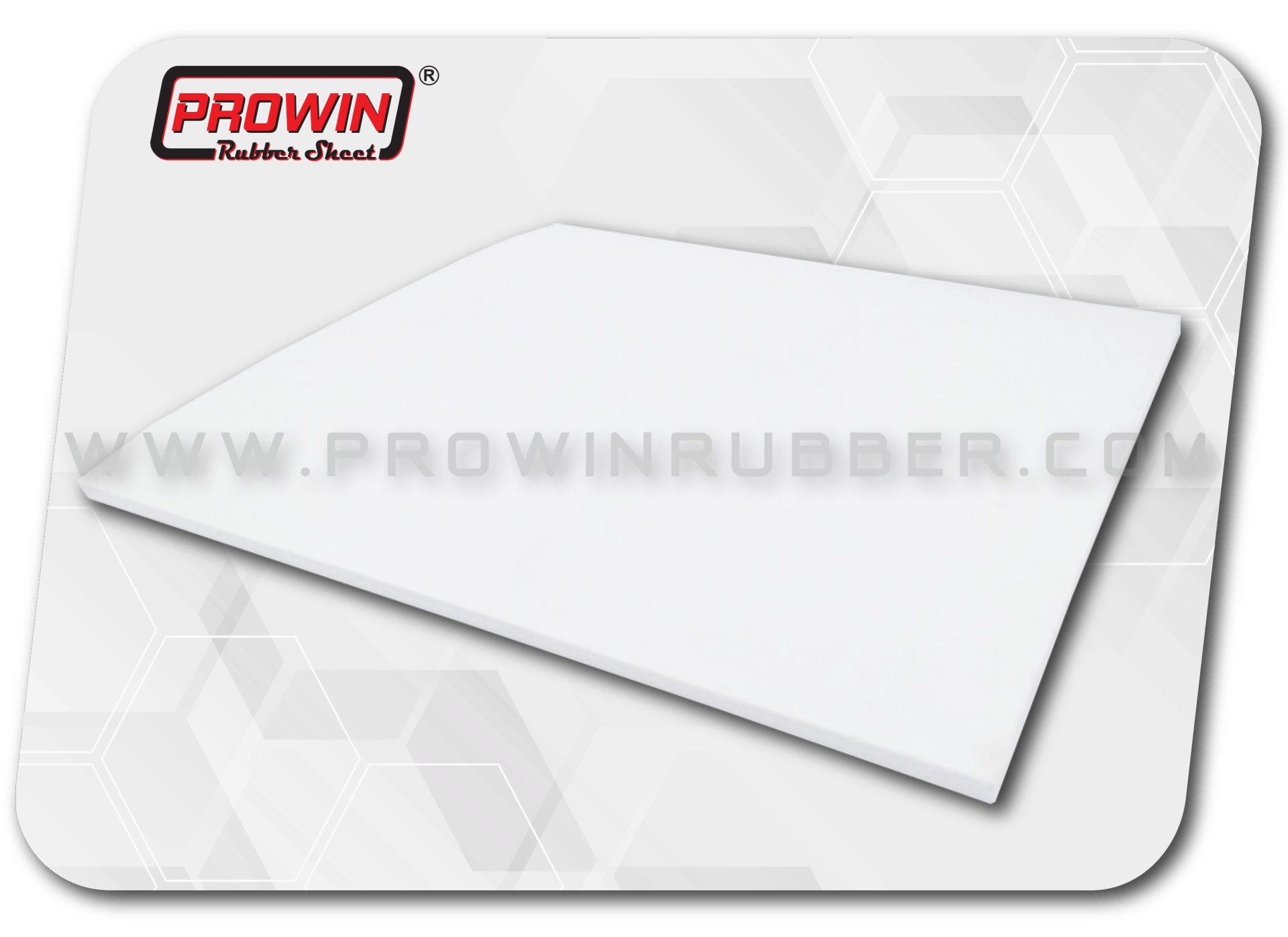

Rubber sheet sample image

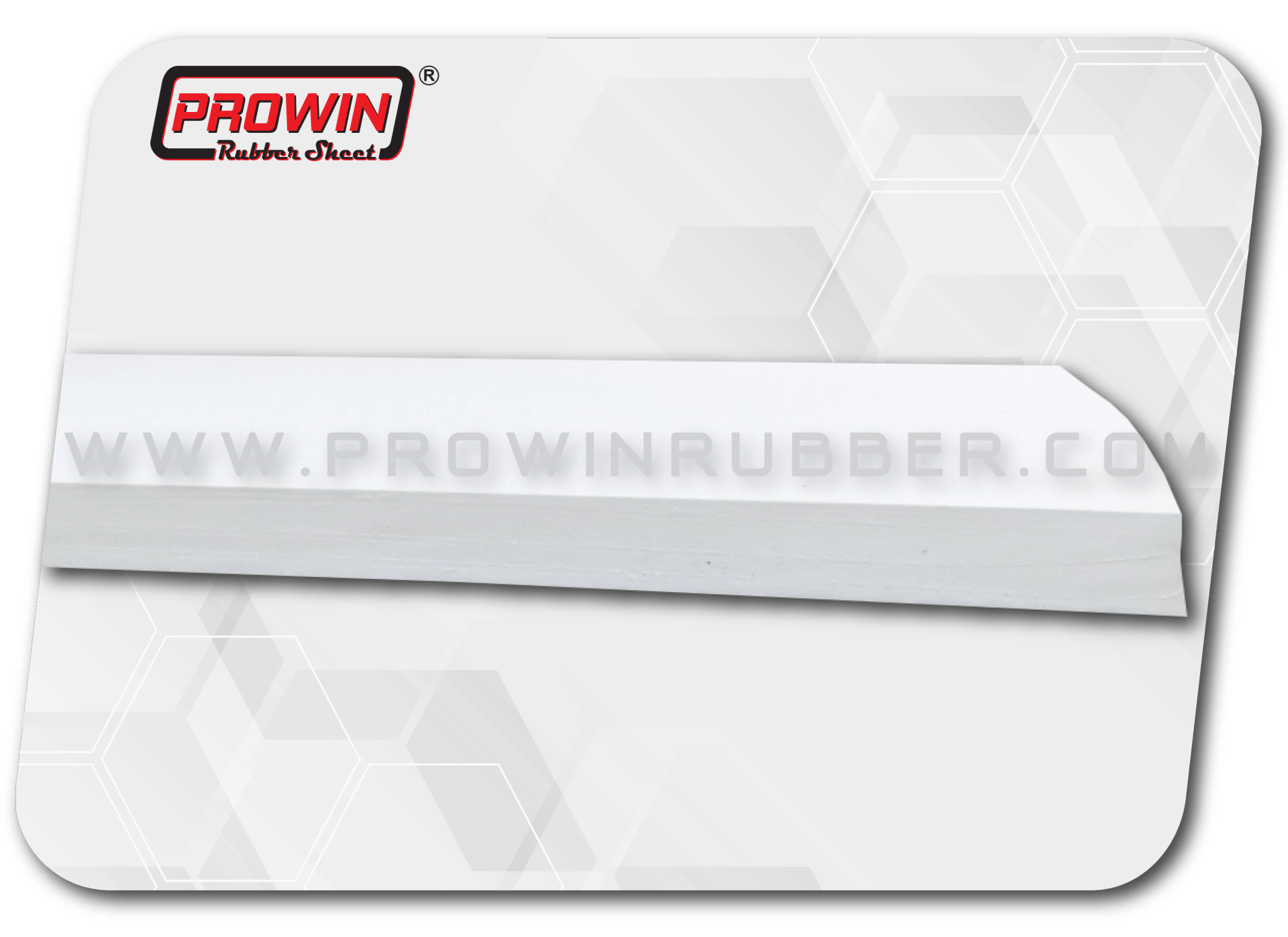

Side view

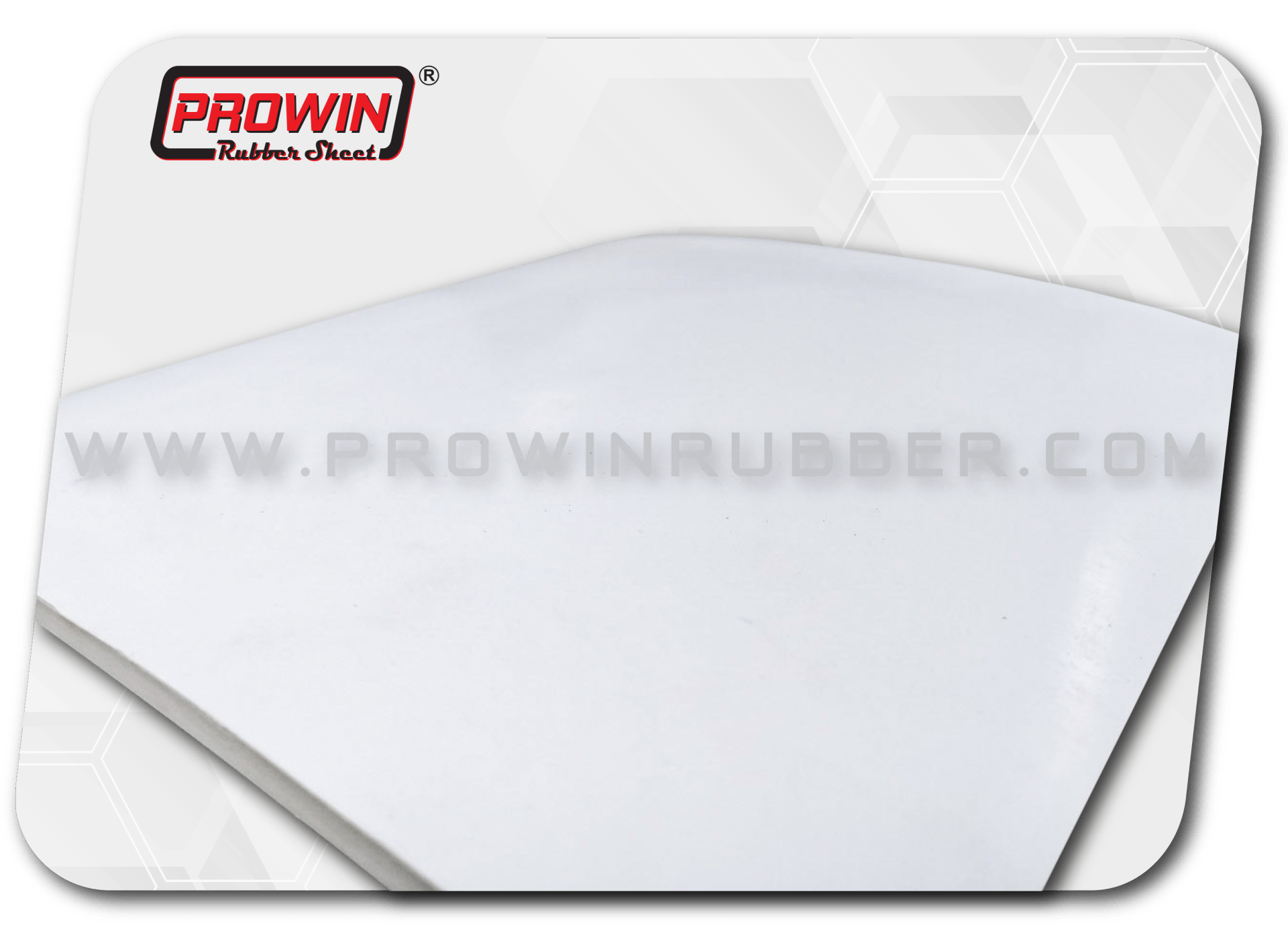

Sample image of rubber surface
Excellent resistance to water and steam, highly resistant to sunlight, ozone and radiation. UV has a very good stretch at low temperatures.
Applications :
Various seal and gasket components In the automotive, low-pressure pipe seal, glass door seal
Operating temperature :
- Low temperature range : -1 °C to -30 °C
- Continuous low temperature : -30 °C
- High temperature range : 90 °C to 110 °C
- Continuous high temperature : 110 °C
Performance
Flammability resistance : 2
Gas permeability : 3
Ozone resistance : 5
Oxidation resistance : 5
Weather resistance : 6
Water resistance : 6

Score rate :
6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
