PROWIN Rubber Sheet
- RUBBER SHEET YOU CAN TRUST -
CR / SBR rubber sheet
Product Name : Chloroprene Rubber Sheet
Product Code : SGCR151H65B
Product Grade : Commercial Grade
Polymer : CR / SBR
Color : Black
Size : 1 mm x to 25 mm
Width : 1 meter, 1.2 meter
Status : In Stock
Mechanical and physical properties
Density (g / cm3): 1.51
Tensile strength (MPa): 3
Elongation at break (%): 150
Hardness: 65 +/- 5 Shore A
PROWIN Rubber Sheet: Chloroprene Rubber (CR) / SBR (SGCR151H65B)
Commercial grade Chloroprene(CR) rubber sheet is suitable for general use, outdoor environment and mild diluted chemical environment. It has been commonly use for water resistance, mild diluted chemical resistance, none crucial gasket, machinery cushion pad, or anti skid sheet for floor.
Hardness - 65 +/- 5 Shore A
Tensile strength - 2.0 Mpa
Surface - Smooth
Chemical resistance - Diluted mild chemical
Materials: Main components such as ethylene propylene diene monomer(EPDM), styrene butadiene rubber(SBR) and carbon black. Sub-components such as zinc oxide, sulfur, catalyst (<1%) and antioxidants or stabilizers (<1%).

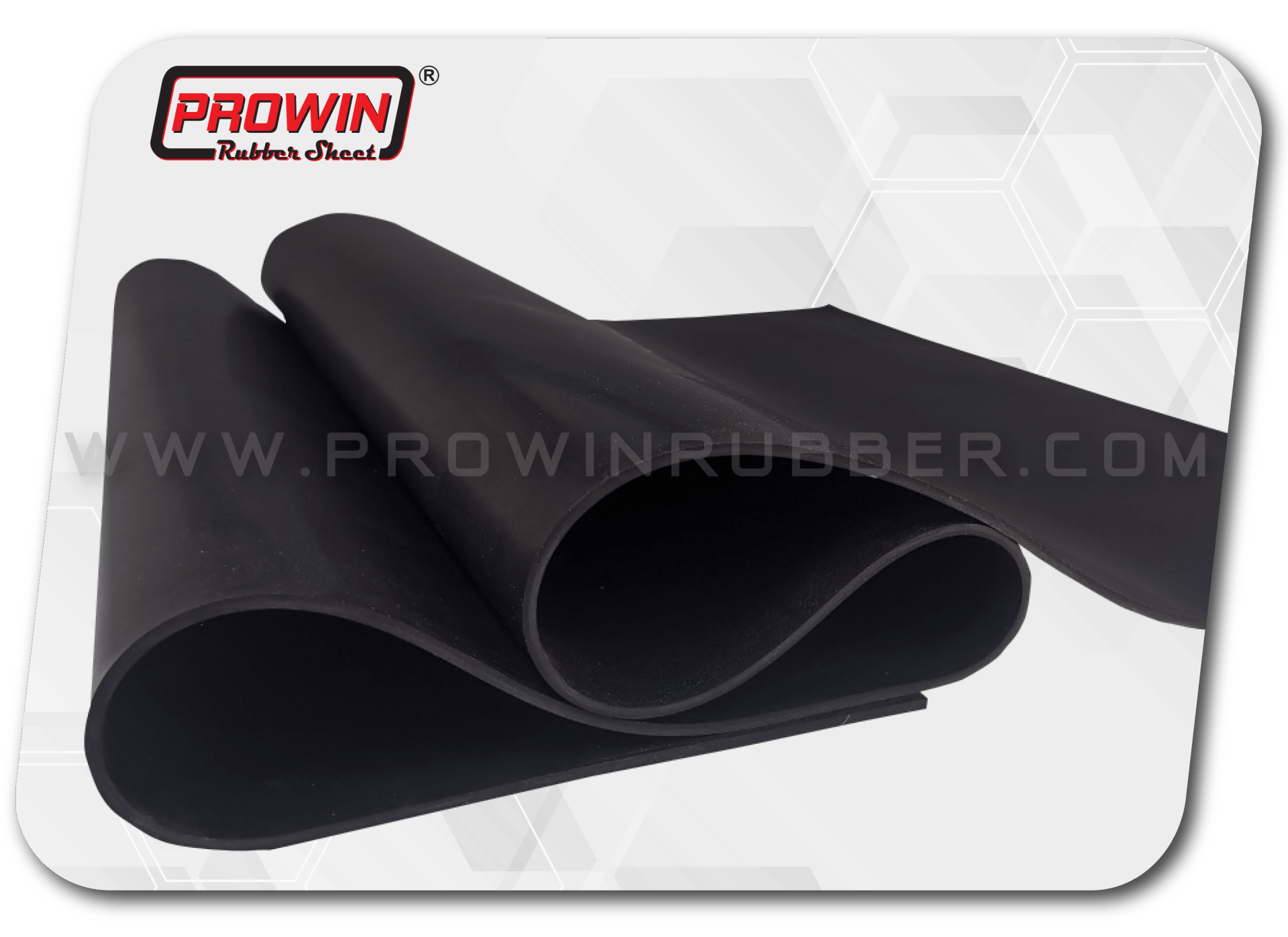

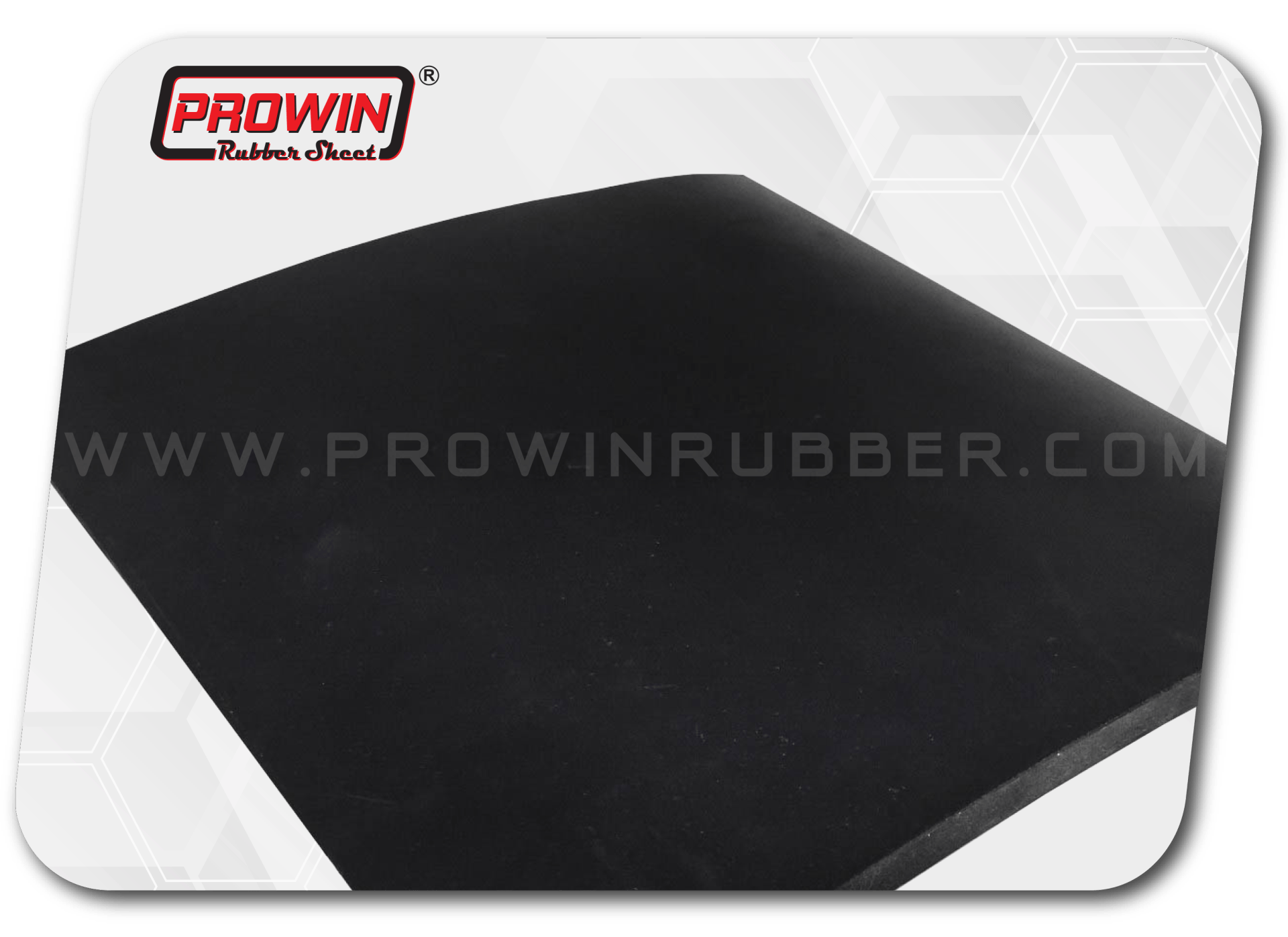

Rubber sheet sample image

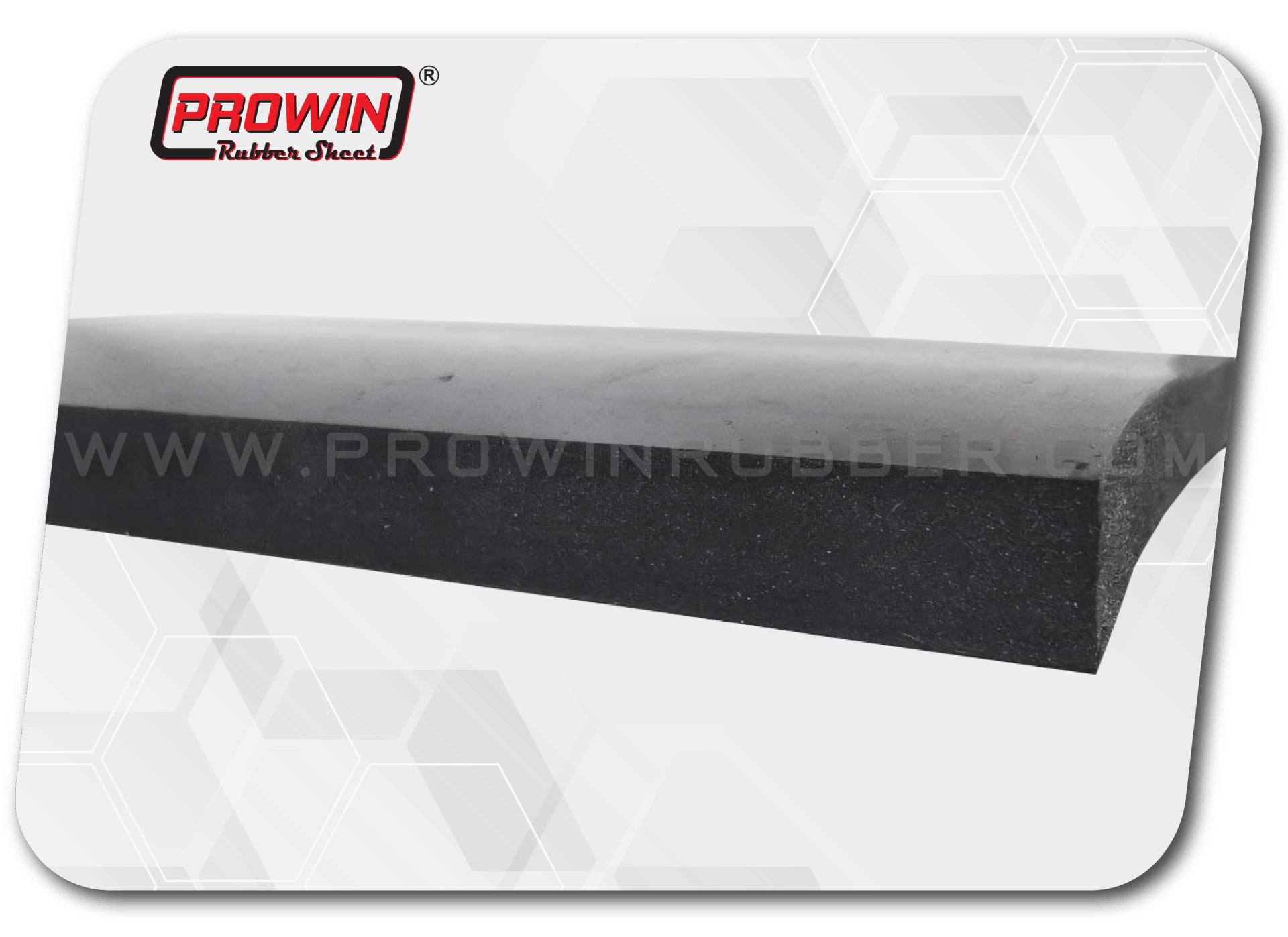

Side view

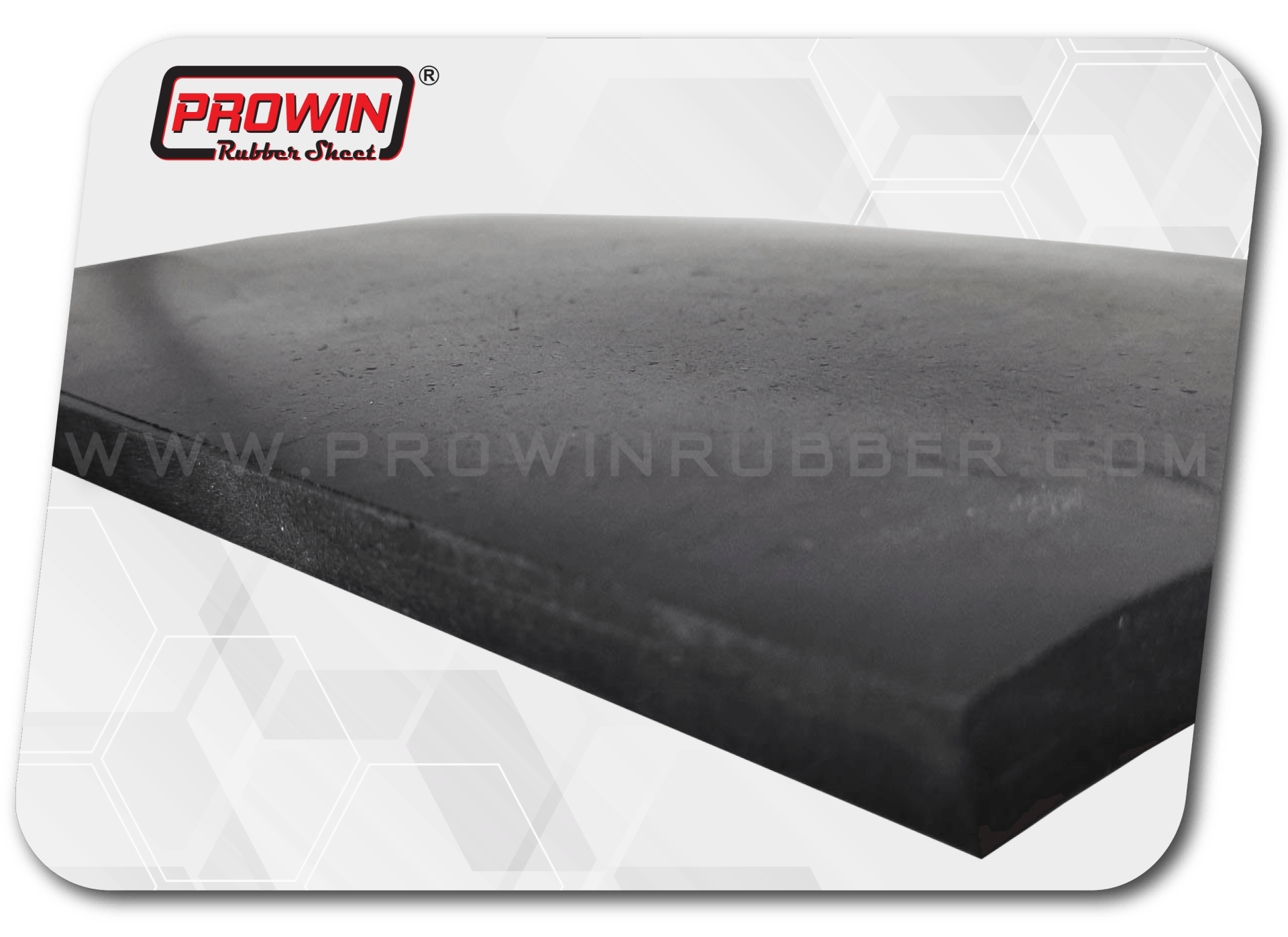

Sample image of rubber surface
Applications
- Use in water resistance applications
- Use in water resistance applications
- Use in diluted mild chemicals
- None crucial rubber seals
- None crucial rubber gaskets
Operating temperature :
- Low temperature range : 1 °C to -20 °C
- Continuous low temperature : -20 °C
- High temperature range : 60 °C to 80 °C
- Continuous high temperature : 80 °C
