EPDM Rubber Sheet (DEP151H65B)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Ethylene Propylene Diene monomer (EPDM) rubber sheet
Product Name : Ethylene Propylene Diene monomer(EPDM) Rubber Sheet
Product Code : DEP151H65B
Product Grade : Basic Grade
Polymer : EPDM/NR
Color : Black
Size : 1 mm to 25 mm
Width : 1 meter, 1.2 meter, 1.4 meter, 1.5 meter
Status : In Stock
Mechanical and physical properties
Density (g / cm3): 1.51
Tensile strength (MPa): 6
Elongation at break (%): 250
Hardness: 65 +/- 5 Shore A
Tear resistance (N / mm): 18
Compression recovery (72 hours tested at 70 °C): 40%
PROWIN basic Ethylene Propylene Diene Monomer(EPDM) rubber sheet - DEP151H65B
Basic EPDM Rubber sheet  made from 100% raw natural rubber and EPDM has good resistance to heat, ozone and UV, suitable for outdoor application, this is widely use in cunstruction and roofing industries, automotive seal, gasket and others related application. Beside EPDM also has good chemical resistance that make it good material for chemical tank rubber lining. EPDM can provide good sound insulation and cushioning for vibrating machinery.

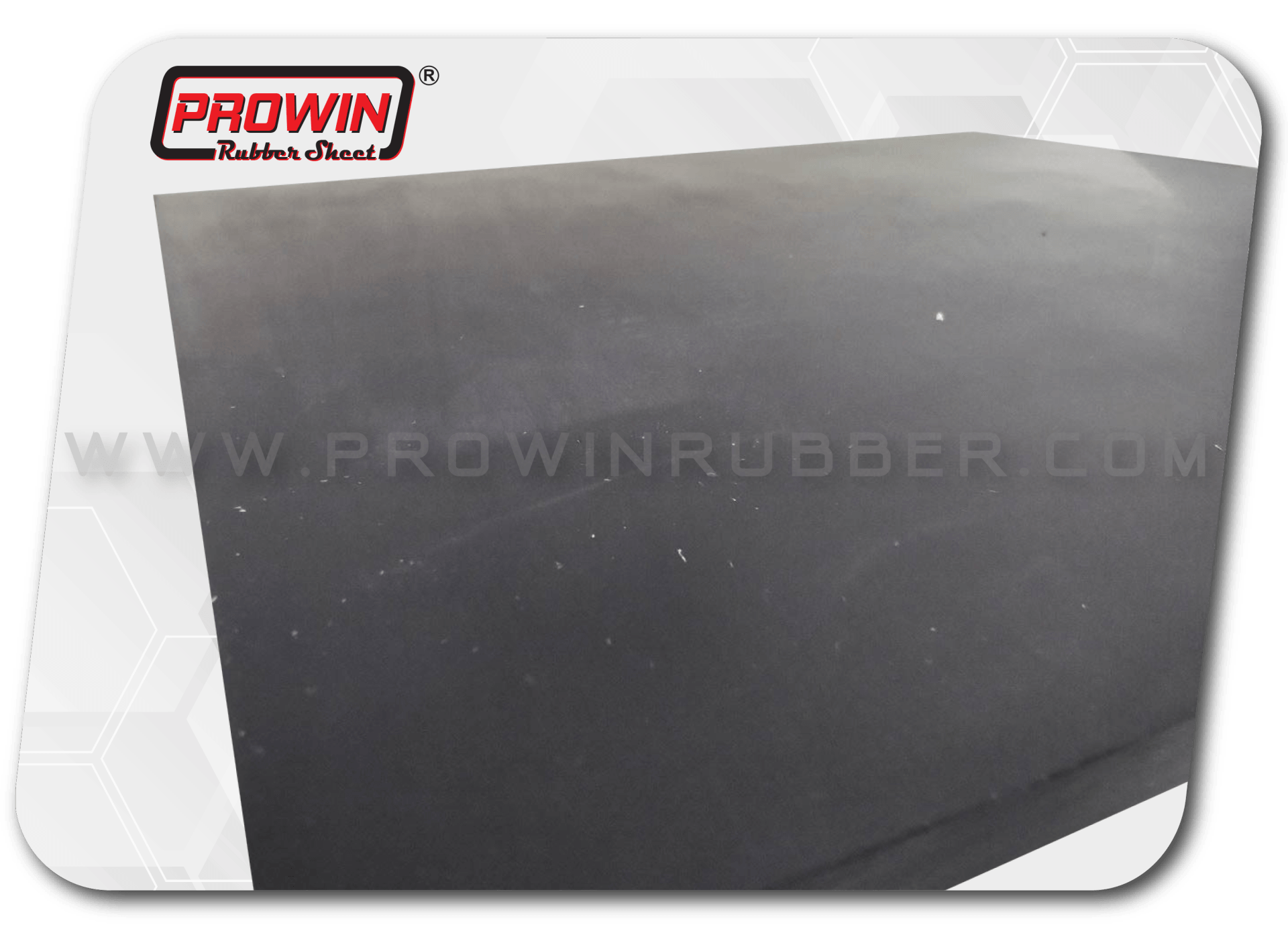

Rubber sheet sample image

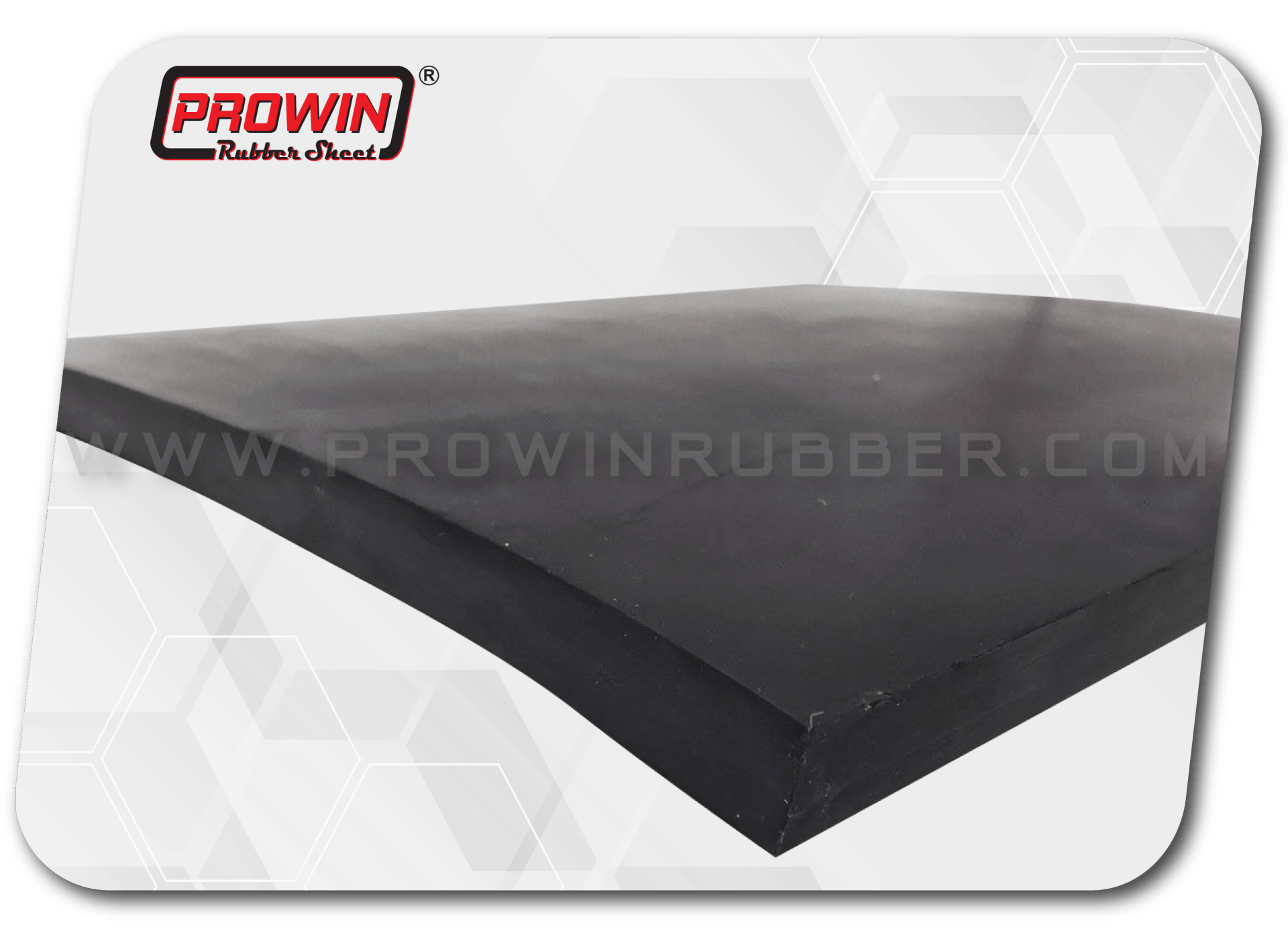

Side view

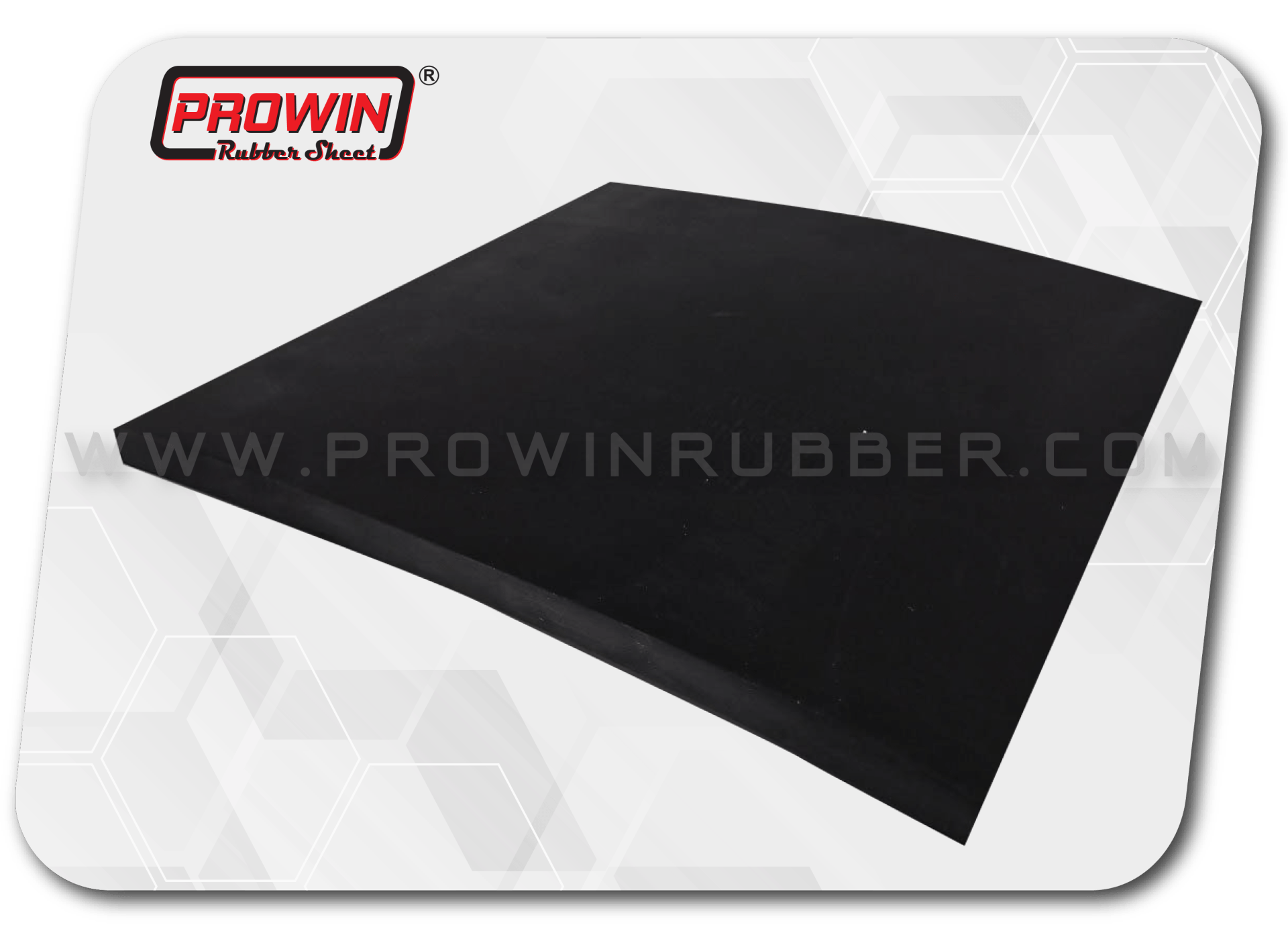

Sample image of rubber surface
Excellent resistance to water and steam, highly resistant to weather, ozone and UV radiation. Has a very good stretch at low temperatures, excellent in chemical resistance.
Application :
window seals rubber, various components In the automotive industry, rubber gasket, rubber lining.
Operating temperature :
- Low temperature range : -1 °C to -20 °C
- Continuous low temperature : -20 °C
- High temperature range : 60 °C to 80 °C
- Continuous high temperature : 80 °C
Performance :
Flammability resistance: 2
Gas permeability: 3
Ozone resistance: 5
Oxidation resistance: 5
Weather resistance: 6
Water resistance: 6

Score rate:
6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
