Premium Grade: CR Rubber Sheet (DCR140H60B)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Chloroprene Rubber Sheet (CR-Neoprene)
Product Name : Chloroprene(CR) Rubber Sheet
Product Code : DCR140H60B
Product Grade : Premium
Polymer : CR
Color : Black
Size : 1 mm to 25 mm
Width : 1 meter, 1.2 meter, 1.4 meter
Status : Made to Order
Mechanical and physical properties
Density (g/cm3) : 1.40
Tensile strength (MPa) : 10
Elongation at break (%) : 400
Hardness : 60 +/- 5 Shore A
Tear resistance (N/mm) : 30
Compression recovery (72 hours at 70 °C) : 35%
PROWIN premium grade Chloroprene(CR) rubber sheet - DCR140H60B
Premium Chloroprene(CR) rubber sheet is made from the finest raw material and unique formula. It has very good wear resistance properties, ozone, UV and extreme weather resistance, commonly used in automotive industry. It is excellent against saltwater corrosive which is widely used in onshore and offshore applications, water sport application. Another unique properties of CR is it's excellent fire retardant ability, this CR has been commonly used in construction, electronic circuit box, and other building safety equipment. CR rubber also has been the best choice for bridge mounting due to it's excellent acid rain, ozone,UV and extreme weather resistance.

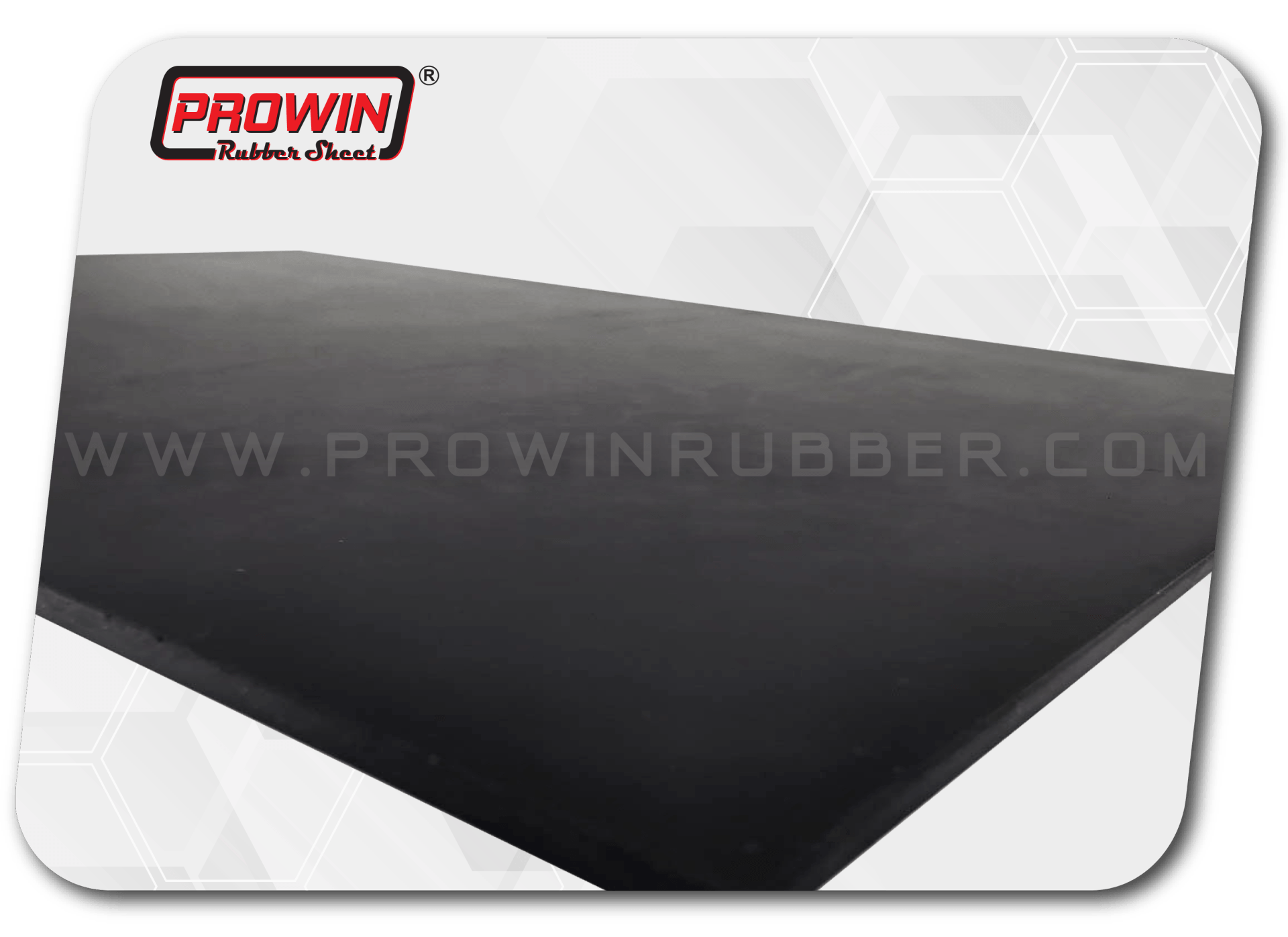

Rubber sheet sample image

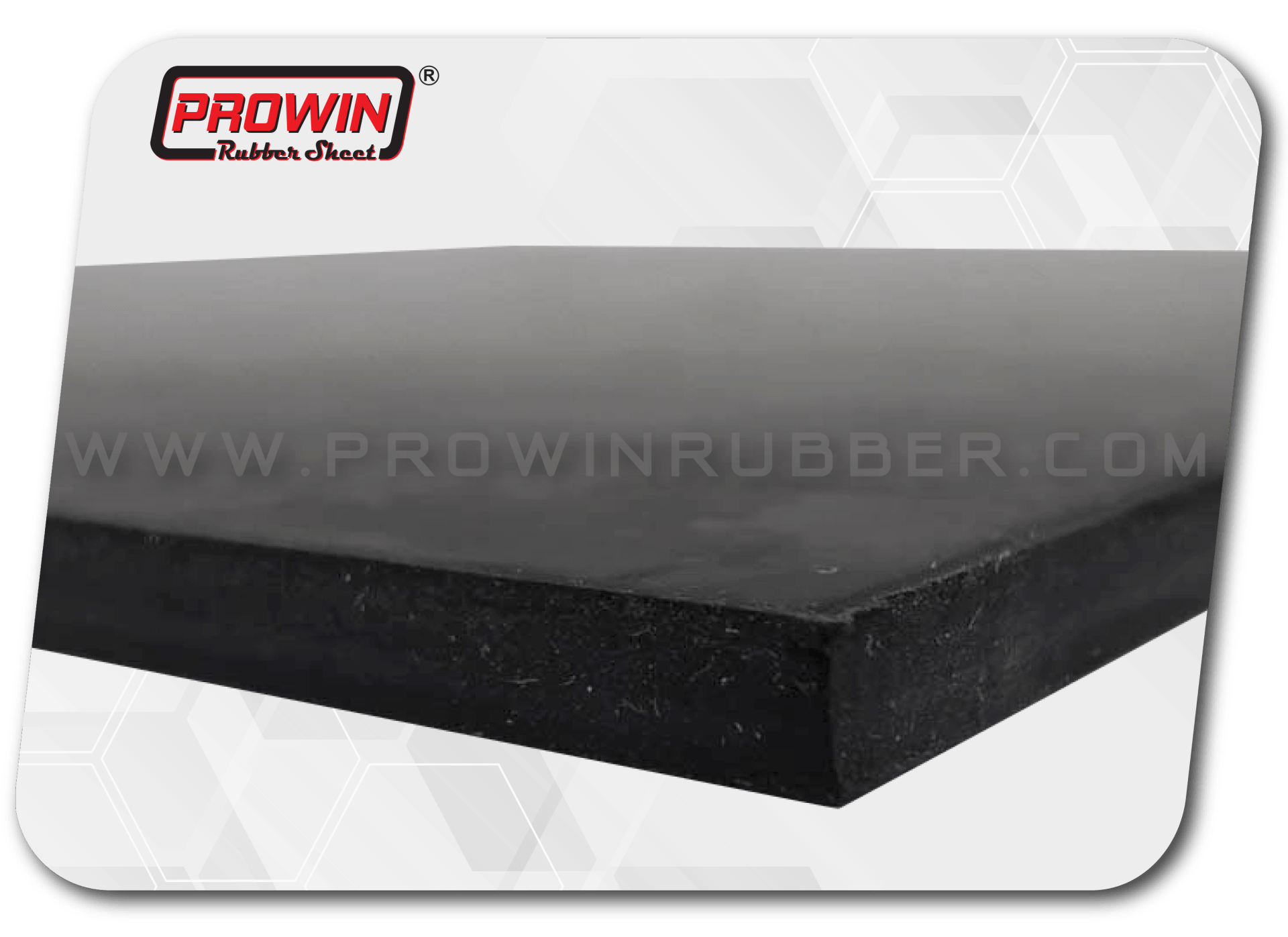

Side view

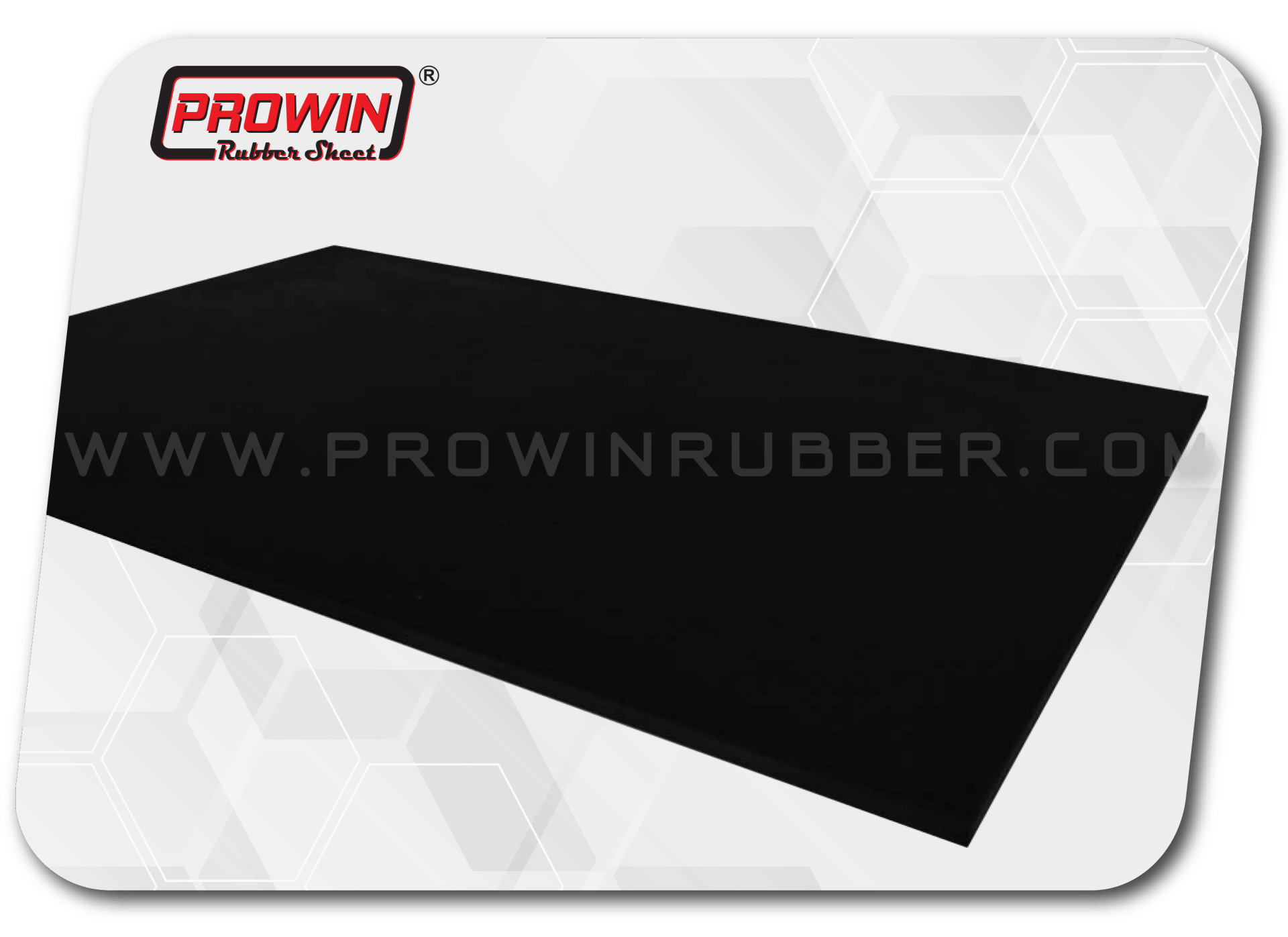

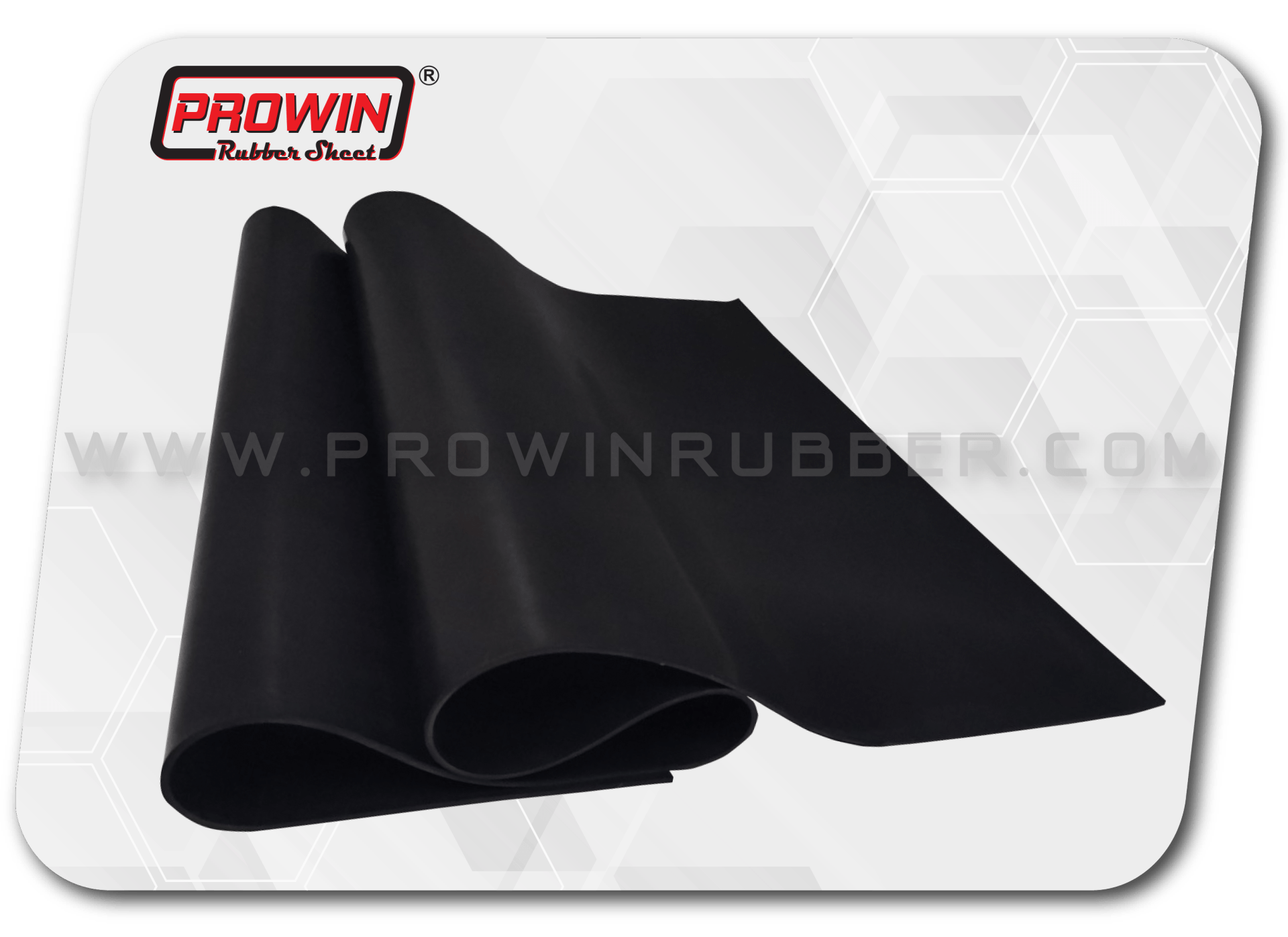

Sample image of rubber
Good abrasion and crack resistance, moderate oil resistance, chemical resistance, acid rain, extreme outdoor and weather resistance, saltwater corrosion resistance.
Applications of gaskets and seals, rubber coating, chemical containers, bridge mounting, rubber lining, sea sport equipment.
Operating temperature :
- Low temperature range : -1 °C to -30 °C
- Continuous low temperature : -30 °C
- High temperature range : 90 °C to 110 °C
- Continuous high temperature : 110 °C
Performance
Flammability resistance : 5
Gas permeability : 3
Ozone resistance : 5
Oxidation resistance : 5
Weather resistance : 3
Water resistance : 3

Score rate :
6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
