Chloroprene Rubber Sheet (CR-Neoprene)
Product Name : Chloroprene(CR) Rubber Sheet
Product Code : DCR153H65W
Product Grade : Basic Grade
Polymer : CR / NR
Color : White
Size : 1 mm to 25 mm
Width : 1 meter, 1.2 meter
Status : In Stock
Mechanical and physical properties
Density (g/cm3) : 1.53
Tensile strength (MPa) : 5
Elongation at break (%) : 250
Hardness : 65 +/- 5 Shore A
Tear resistance (N / mm): 17
Compression recover (72 hours at 70 ° C )
PROWIN basic white Chloroprene(CR) Rubber - DCR153H65W
Basic Chloroprene(CR) rubber or neoprene rubber is a rubber that has good wear-resistance property, ozone and UV resistance, it's abrasion resistance and crack resistance make it very suitable for outdoor application like bridge bearing. CR rubber flame retardant ability make it widely use in circuit box seal, flexible connectors. Basic white CR is widely used in food processing, clean chemical tank rubber lining and gasket.

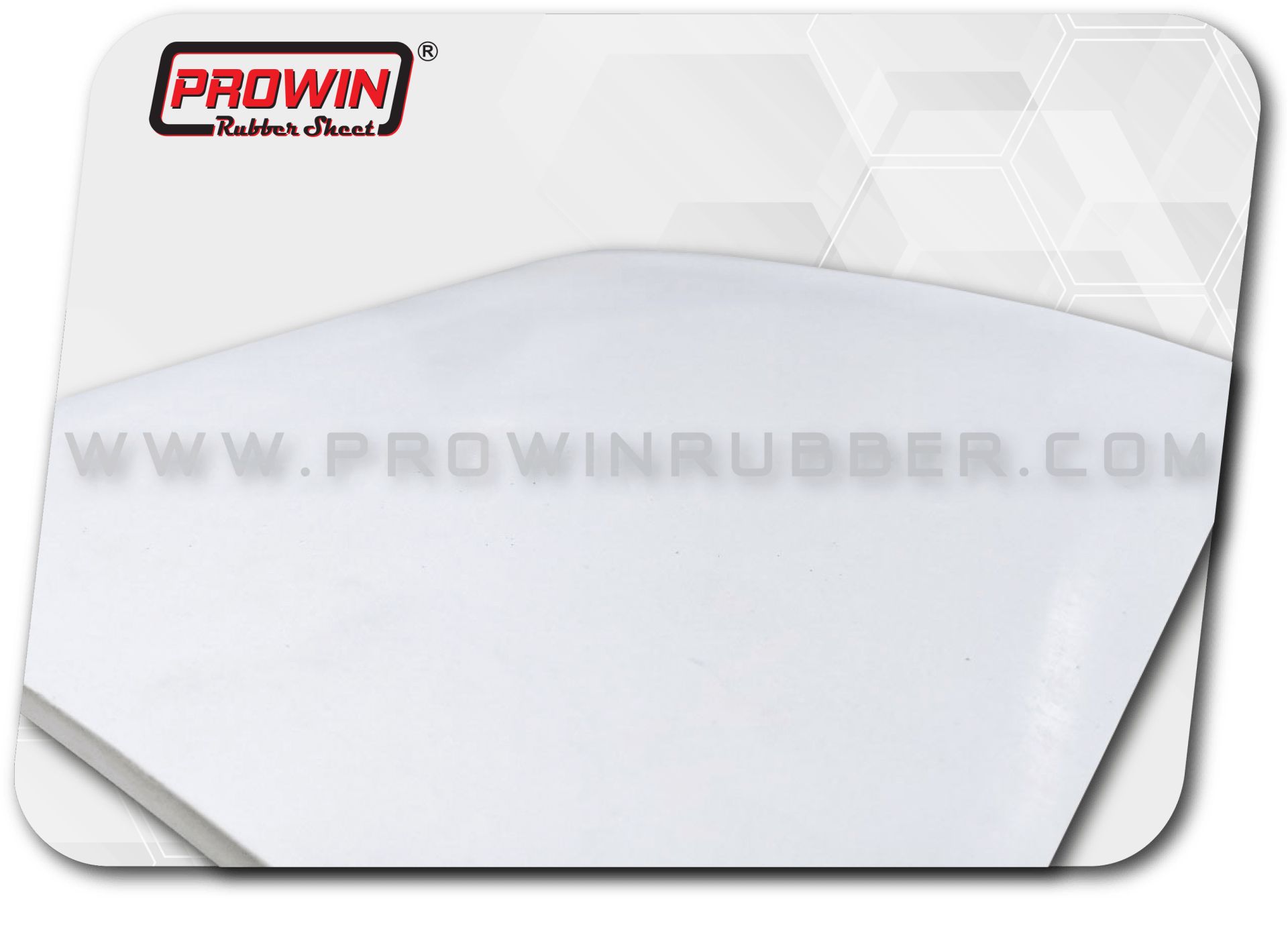

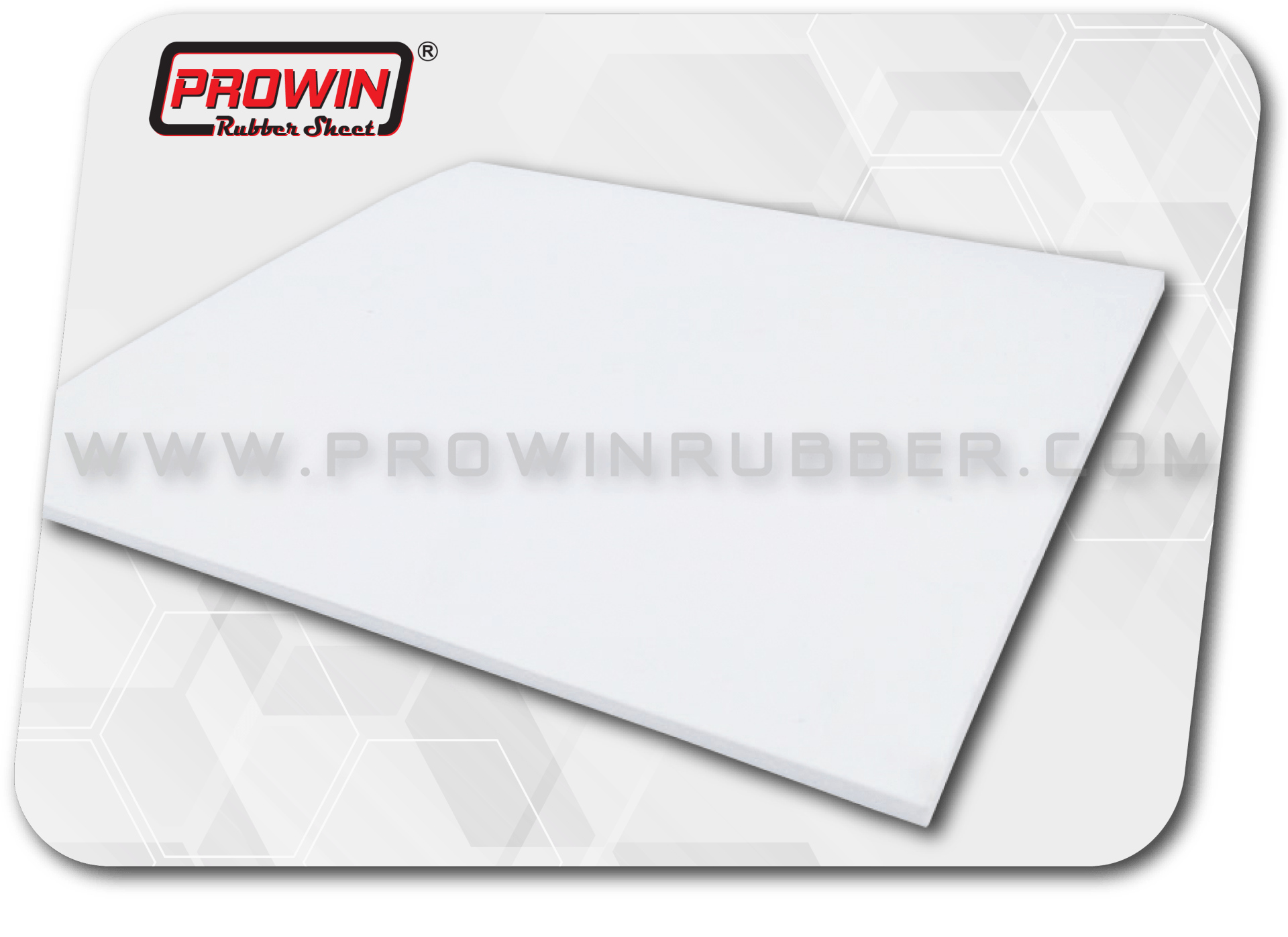

Rubber sheet sample image

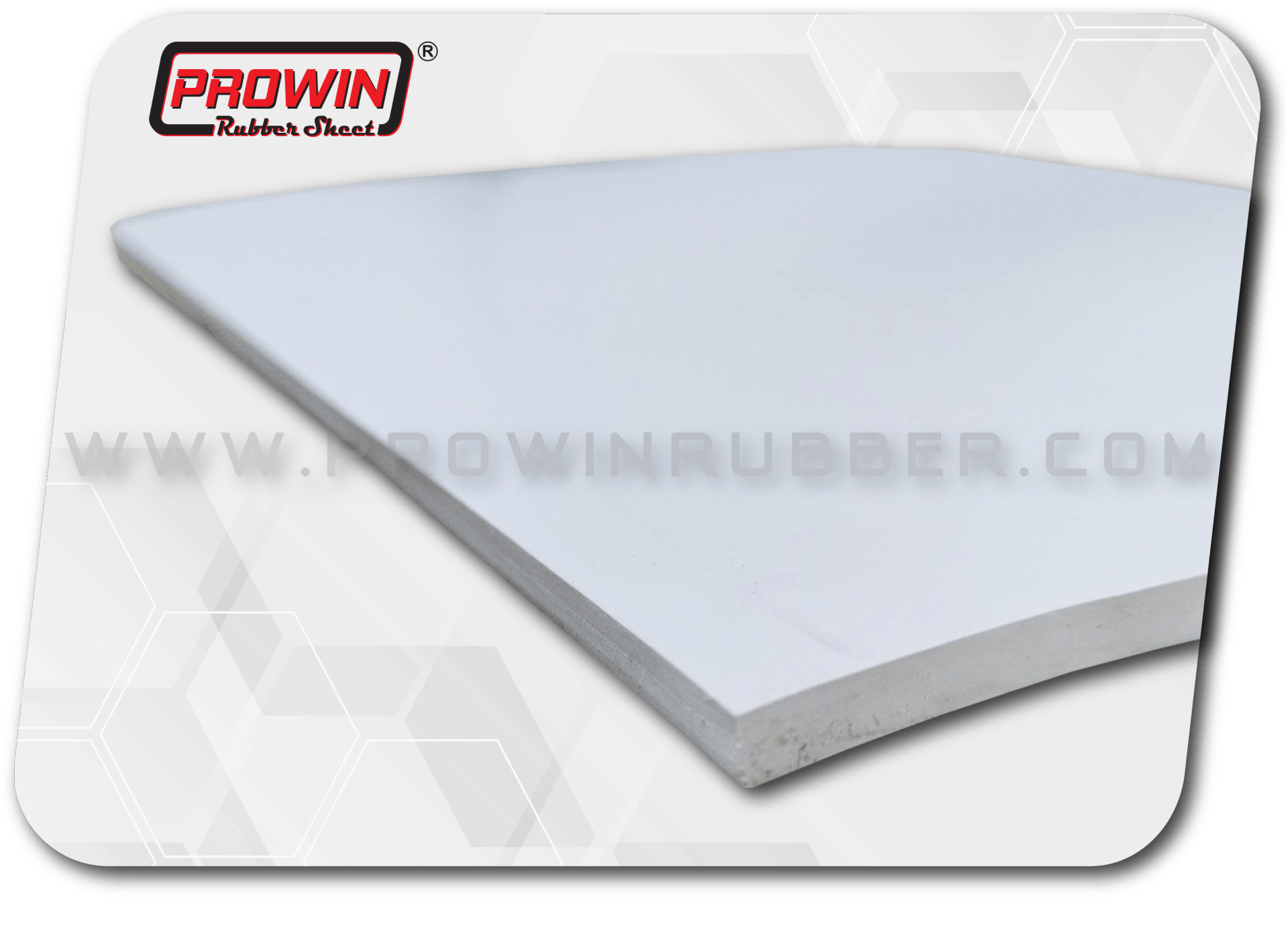

Side view
Sample image of rubber surface
Good abrasion and crack resistance, moderate oil resistance, acid and alkaline resistance, good abrasion resistance
Applications :
Food processing gaskets and seals, rubber lining, bridge bearing, flame retardant application.
Operating temperature :
- Low temperature range : -1 °C to -30 °C
- Continuous low temperature : -30 °C
- High temperature range : 80 °C to 100 °C
- Continuous high temperature : 100 °C
Performance
Flammability resistance : 5
Gas permeability : 3
Ozone resistance : 5
Oxidation resistance : 5
Weather resistance : 6
Water resistance : 6
Score rate :
6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
