PROWIN Rubber Sheet Logo
Superior Grade: NR Rubber Sheet (DNR105H38R)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Natural rubber (NR) sheet
Product Name : Natural Rubber Sheet
Product Code : DNR105H38R
Product Grade : Superior Grade
Polymer : NR
Color : Red
Size : 1 mm to 25 mm
Width : 1 meter, 1.2 meter, 1.4 meter, 1.5 meter
Status : In Stock
Mechanical and physical properties
Density (g/cm3) : 1.05
Tensile strength (MPa) : 20
Elongation at break (%) : 600
Hardness : 38 +/- 5 Shore A
Tearing resistance (N/mm) : 45
Compressive recovery (72 hour 70 °C) : 40%
Abrasion resistance index (mm3) : 150
PROWIN superior natural(NR) rubber sheet - DNR105H38R
Superior natural rubber sheet (NR) is made using 100% raw natural rubber. With no trace of recycled/reclaimed material. Prowin superior grade rubber sheet is environmental friendly, has a better tensile strength, higher elongation, better resistance to chemical, oil, higher abrasion resistance, and weather resistance. With higher grade of raw natural rubber, superior NR rubber sheet can better withstand scratches, bumps, abrasion and impact. Widely used in industries like sand blast, cement silo rubber chute, chemical tank rubber lining, mining and quarries.

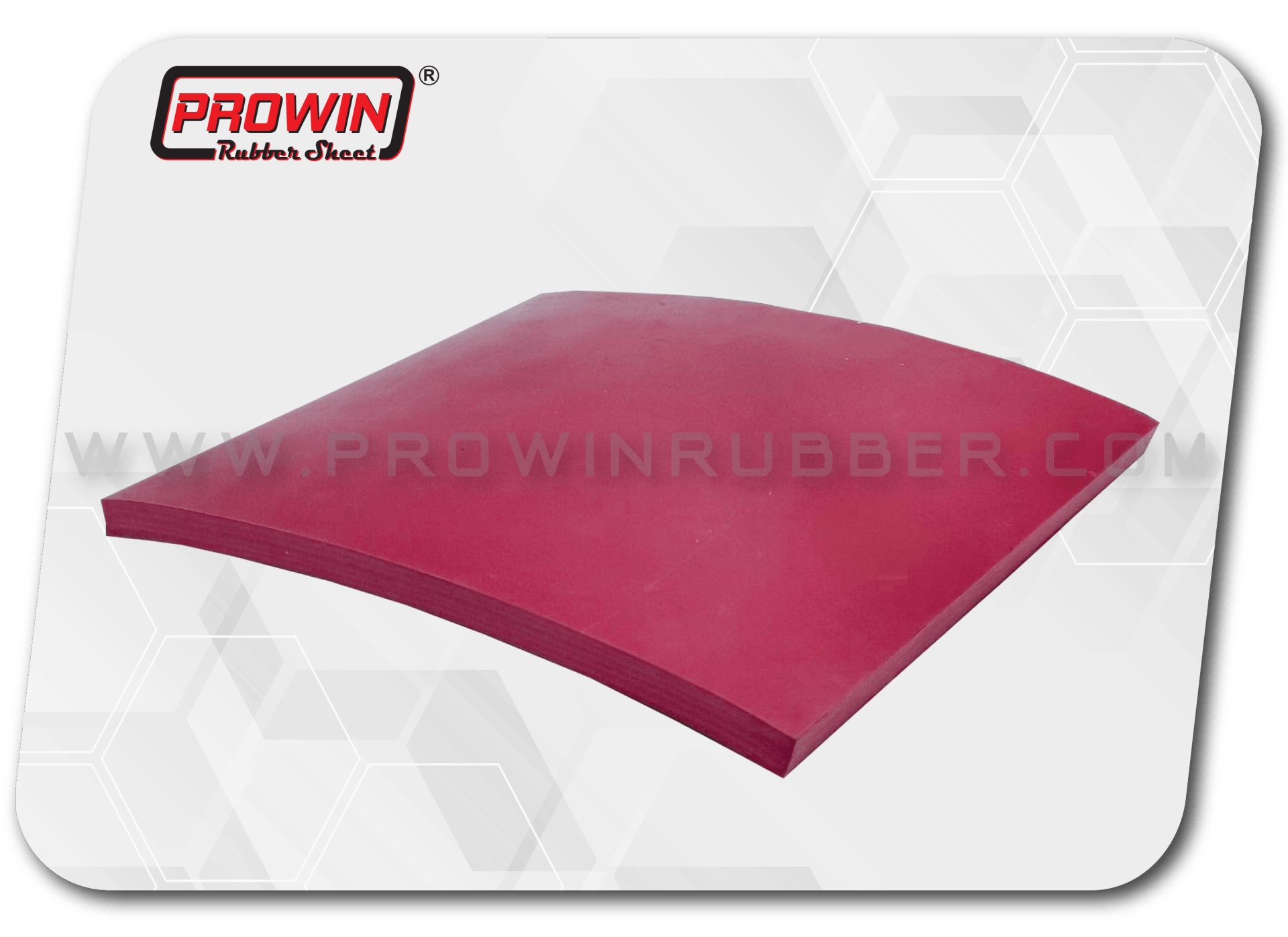

Rubber sheet sample image

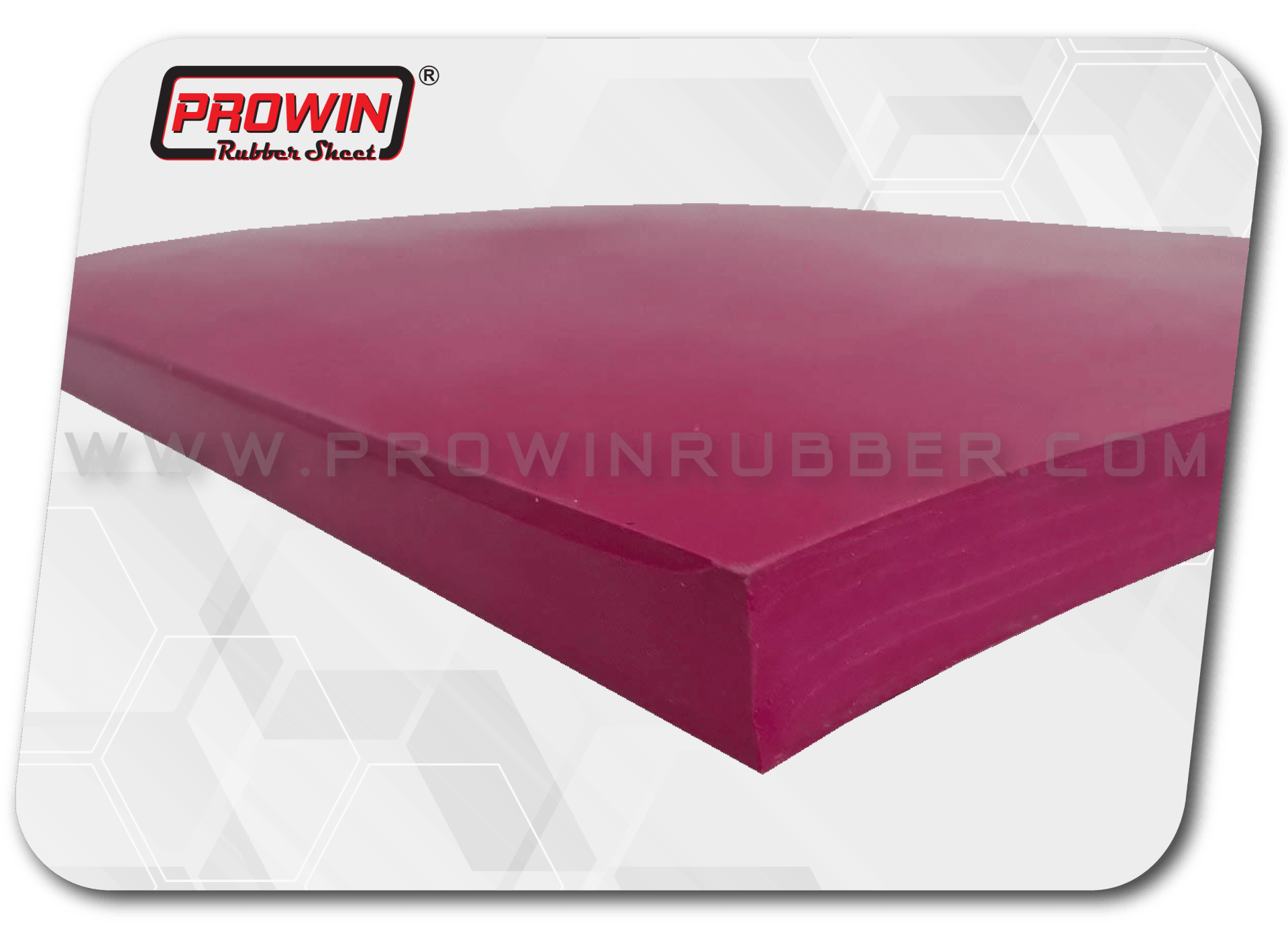

Side view

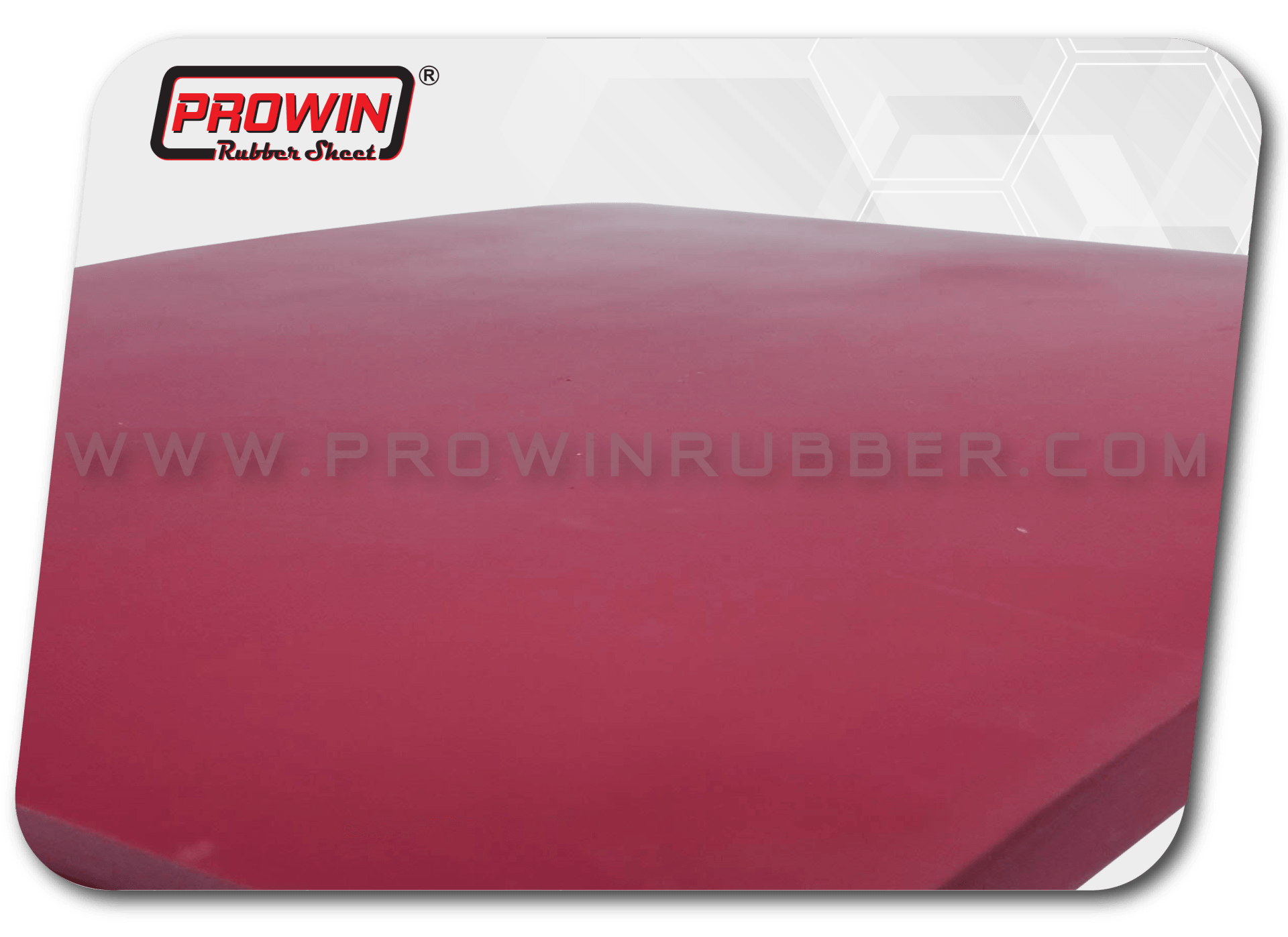

Sample image of rubber surface
Good resistance to scratches, bumps, abrasion, excellent impact resistance, cutting and tearing, excellent tensile strength, high flexibility
Rubber lining applications, slurry handling, coating tubes, coating pumps Chute valve coating, production of coated belts Hydrocyclones coated with a skirt board covered with Pulley
Operating temperature :
- Low temperature range : -1 °C to -20 °C
- Continuous low temperature : -20 °C
- High temperature range : 60 °C to 90 °C
- Continuous high temperature : 90 °C
Performance
Flammability resistance : 1
Dry and wet abrasion : 6
Gas permeability : 3
Ozone resistance : 1
Oxidation resistance : 4
Weather resistance : 1
Water resistance : 6

Score rate :
6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
