NBR Rubber Sheet (DNBR152H65B)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Nitrile Butadiene Rubber (NBR) Sheet
Product Name : Nitrile Butadiene(NBR) Rubber Sheet
Product Code : DNBR152H65B
Product Grade : Basic Grade
Polymer : NBR / NR
Color : Black
Size :1 mm to 25 mm
Width : 1 meter, 1.2 meter, 1.4 meter, 1.5 meter
Status: In Stock
Mechanical and physical properties
Density (g / cm3) : 1.52
Tensile strength (MPa) : 5
Elongation at break (%) : 250
Hardness : 65 +/- 5 Shore A
Tear resistance (N/mm) : 17
Compression recovery (72 hours at 70 °C) : 40%
PROWIN basic Nitrile Butadiene(NBR) rubber sheet - DNBR152H65B
Basic white NBR rubber sheet is made from 100% raw natural rubber and NBR, this basic NBR rubber sheet has a good resistance to mineral oil, is widely used in oil and gas industry and power plant. With temperatures ranging from -30 to 80 degree celsius NBR is also widely used in automotive seal and gasket.

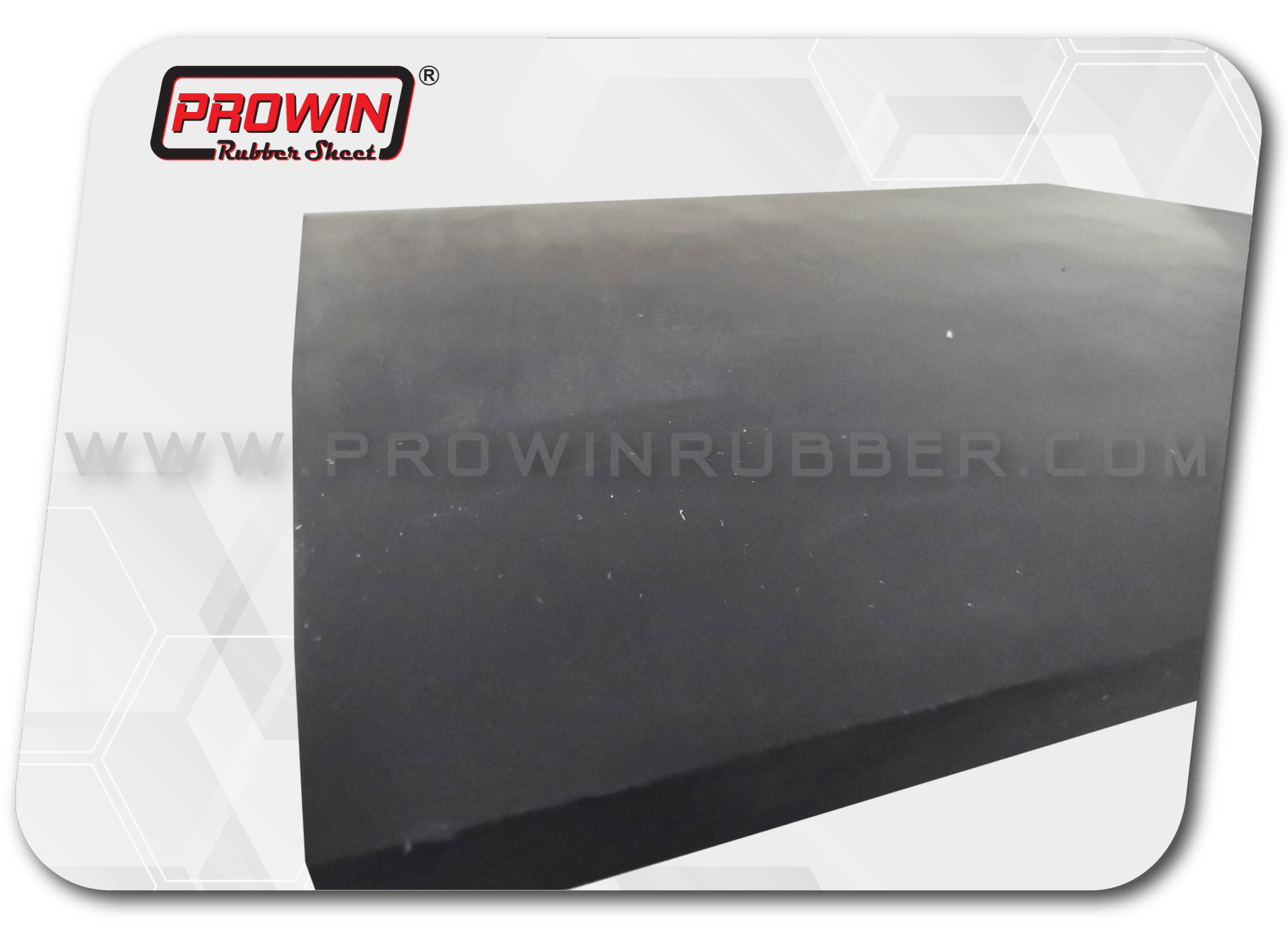

Rubber sheet sample image

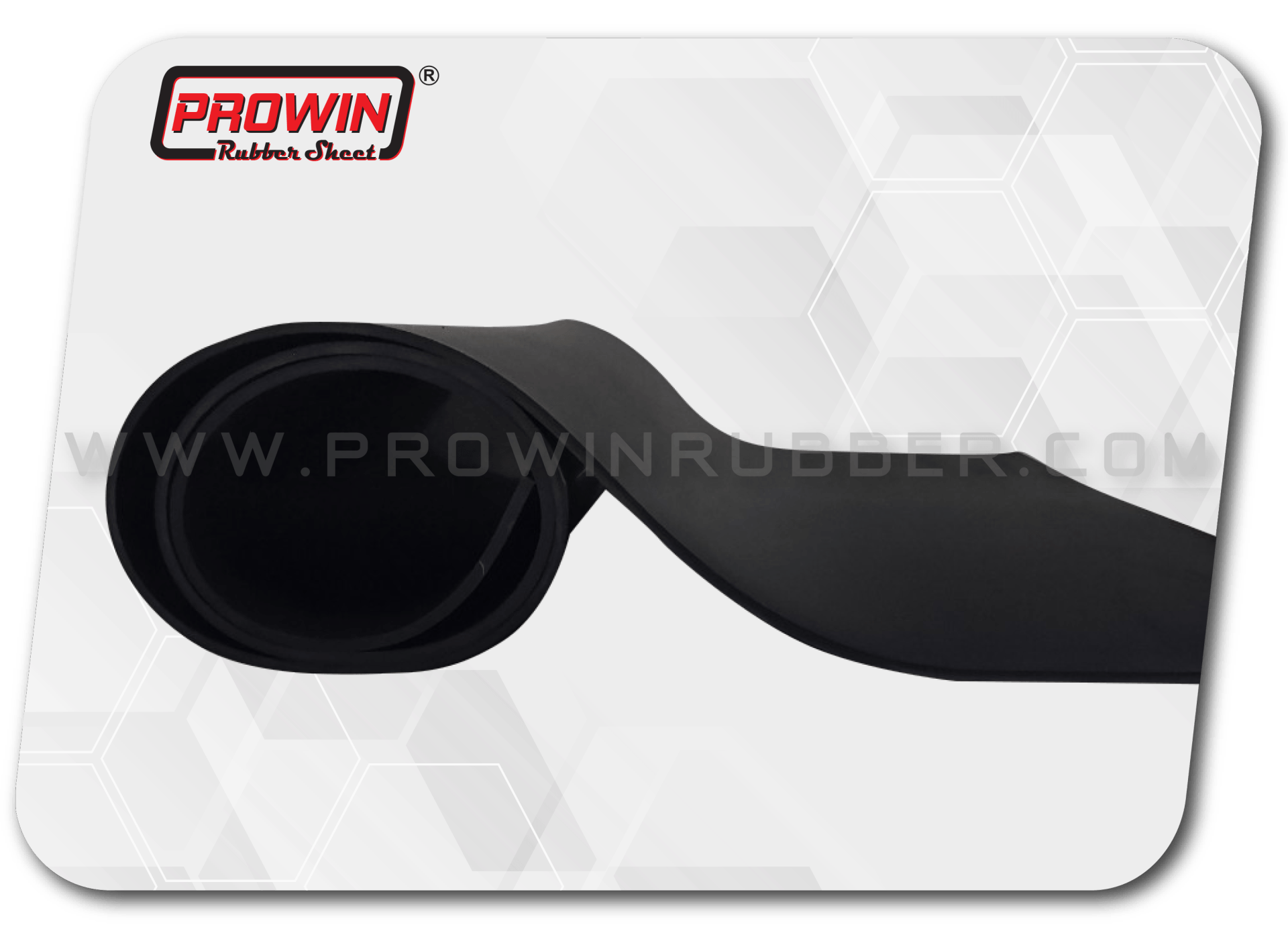

Side view

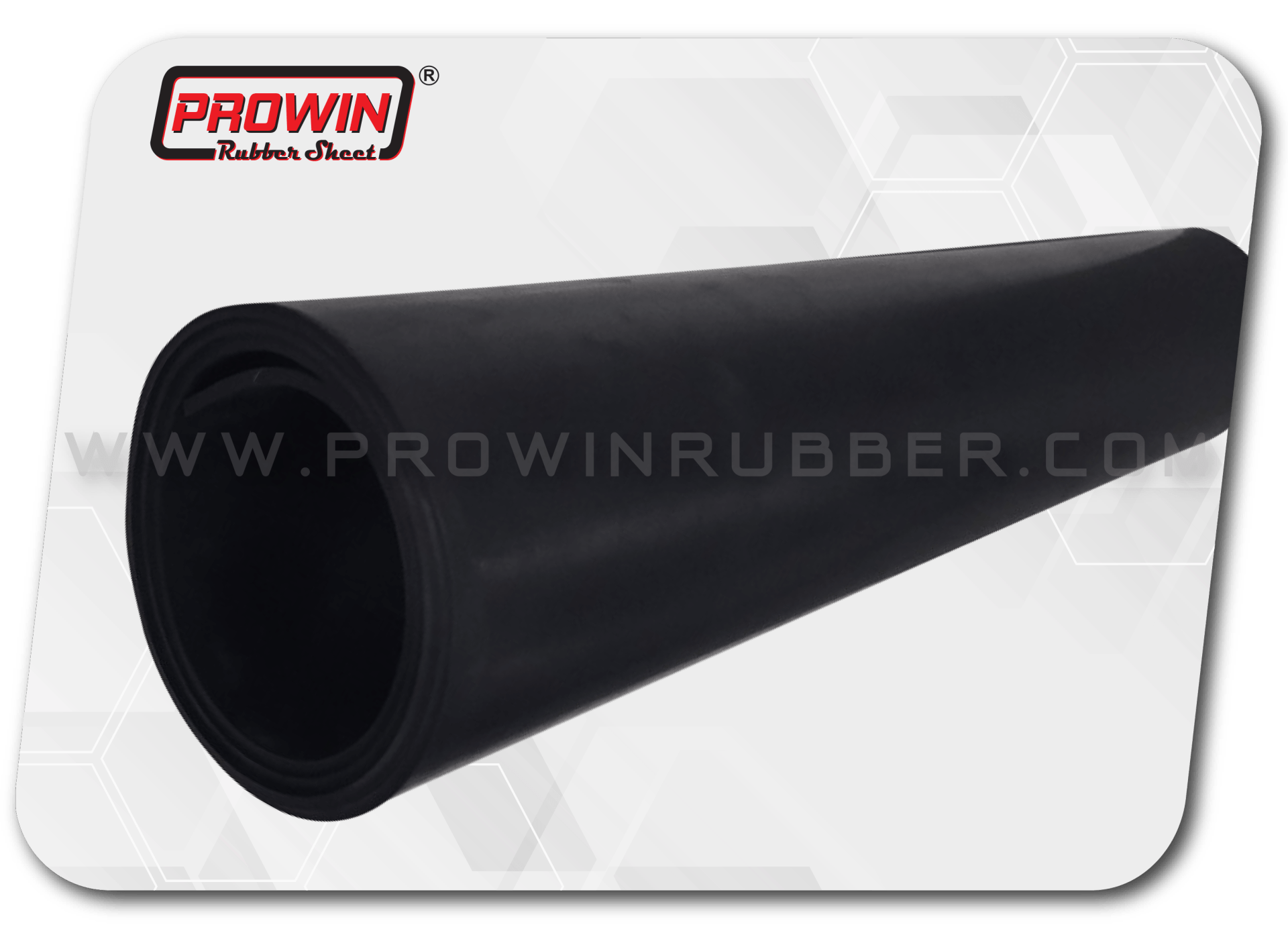

Sample image of rubber surface
Excellent oil resistance, good resistance to heat and aging and slow deterioration, good gas permeability, resistant to scraping, impact, and friction
Application :
Carburetor and diaphragm applications, fuel pumps, chemical tank lining, seals and gaskets, pipes or oil lines for vehicles
Operating temperature :
- Low temperature range : -1 °C to -20 °C
- Continuous low temperature : -20 °C
- High temperature range : 60 °C to 80 °C
- Continuous high temperature : 80 °C
Performance :
Flammability resistance : 2
Gas permeability : 3
Ozone resistance : 5
Oxidation resistance : 5
Weather resistance : 6
Water resistance : 6

Score rate :
6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
