EPDM / SBR Rubber Sheet (SGEP149H65B)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

EPDM / SBR rubber sheet
Product Name : Ethylene Propylene Diene monomer(EPDM) rubber sheet
Code : SGEP149H65B
Product Grade : Commercial Grade
Polymer : EPDM/SBR
Color : Black
Size : 1 mm to 25 mm
Width : 1 meter, 1.2 meter
Status : In Stock
Mechanical properties:
Density (g / cm3): 1.49
Tensile strength (MPa): 3
Elongation at break (%): 150
Hardness: 65 +/- 5 Shore A
PROWIN Rubber Sheet: Ethylene Propylene Diene monomer rubber sheet (EPDM)/ SBR (SGEP149H65B).
Commercial grade EPDM rubber sheet is suitable for general application and normal environment. It has been commonly use for water resistant, none crucial gasket, machinery cushion pad, or anti skid sheet for factory floor.
Hardness of 65 +/- 5 Shore A
Tensile strength - 3.0 Mpa
Surface - Smooth
Chemical resistance - Diluted mild chemical

Materials: Main components such as ethylene propylene diene monomer(EPDM), styrene butadiene rubber(SBR) and carbon black. Sub-components such as zinc oxide, sulfur, catalyst (<1%) and antioxidants or stabilizers (<1%).

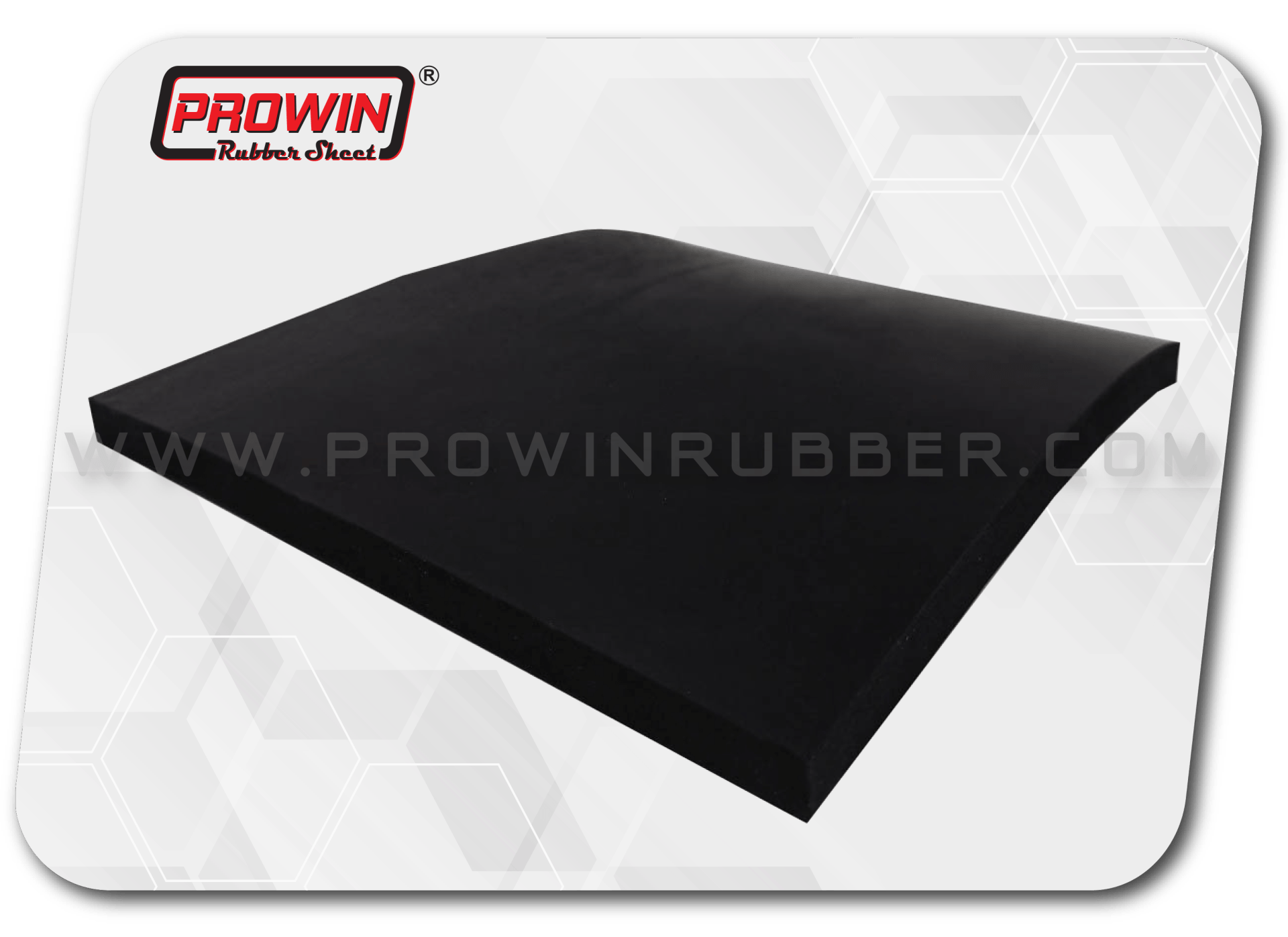

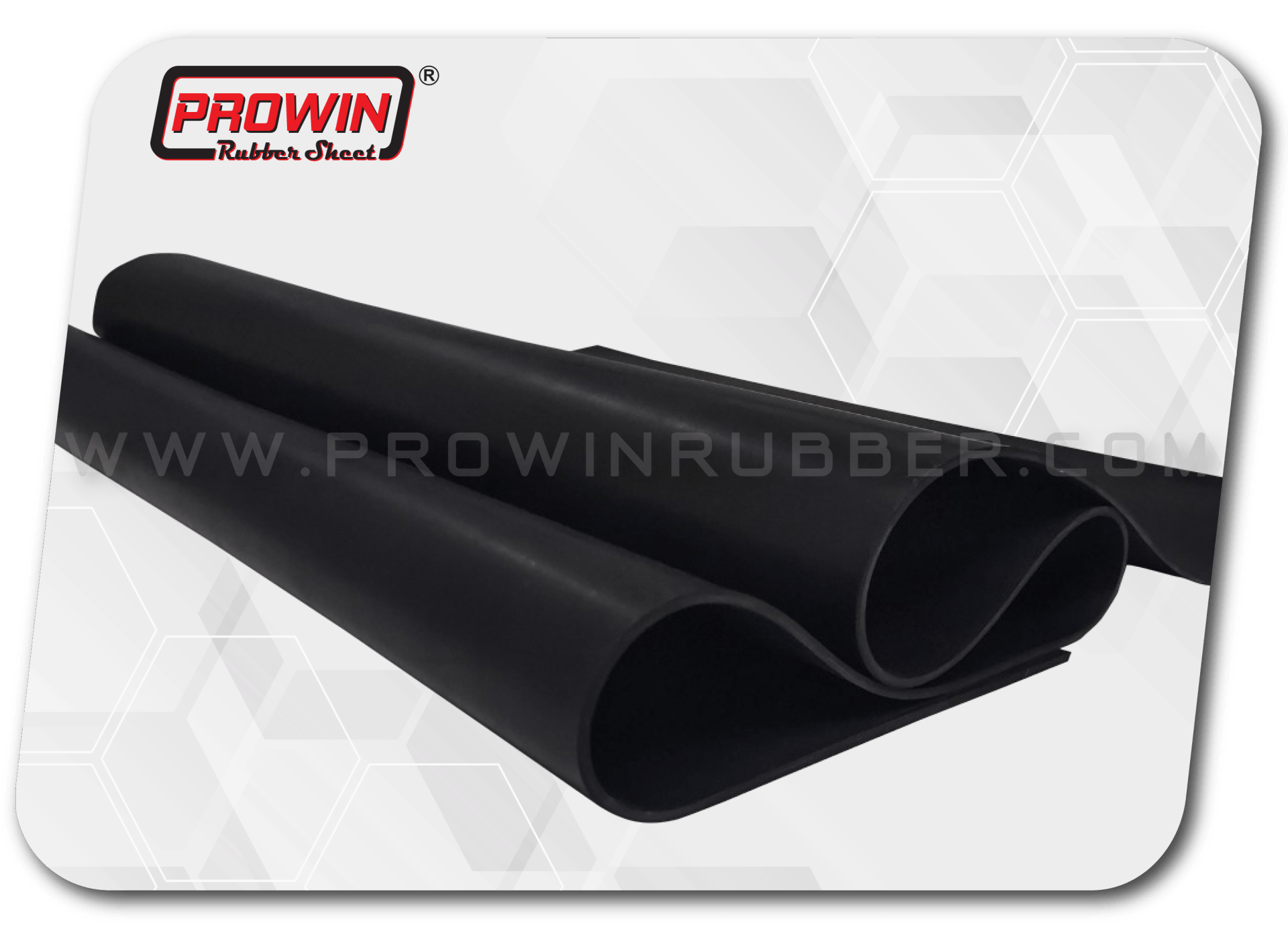

Rubber sheet sample image

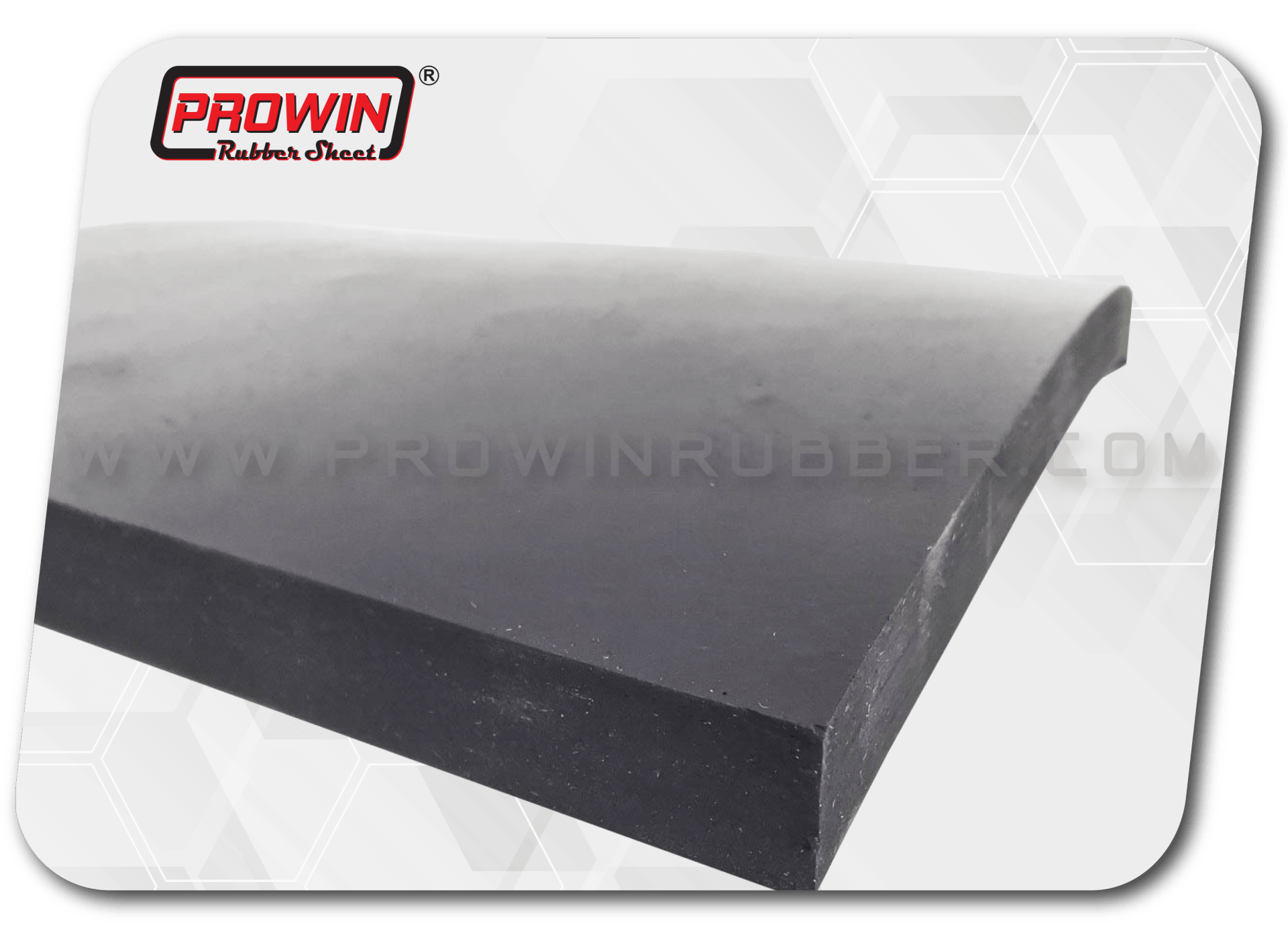

Side view

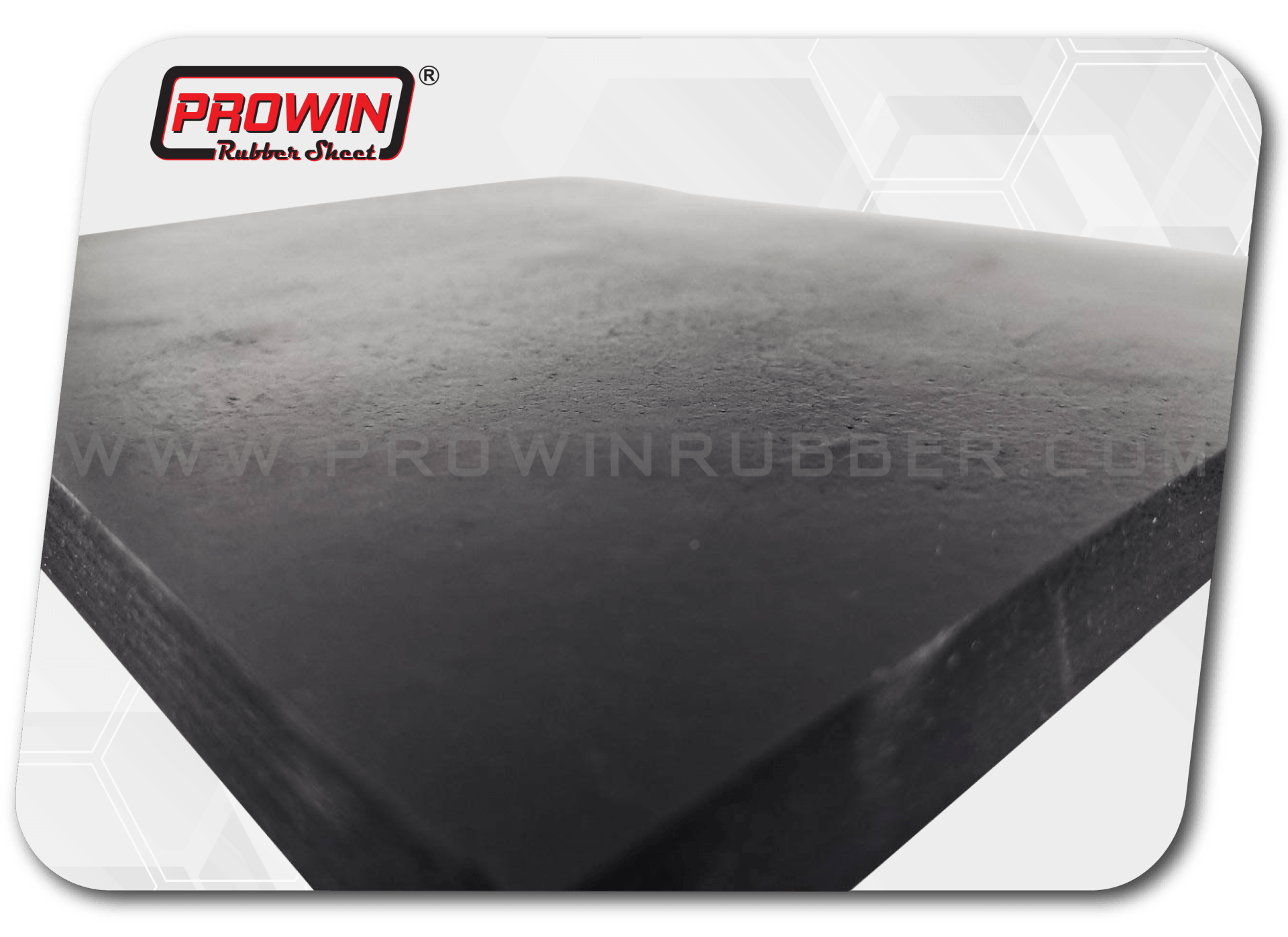

Sample image of rubber surface
Applications
- Use in water resistance applications
- Use in diluted mild chemicals
- None crucial rubber seals
- None crucial rubber gaskets
Operating temperature:
- Low temperature range : -1 °C to -20 °C
- Continuous low temperature : -20 °C
- High temperature range : 60 °C to 80 °C
- Continuous high temperature : 80 °C
