NBR White Rubber Sheet (DNBR152H65W)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Nitrile Butadiene Rubber (NBR) Sheet
Product Name : Nitrile Butadiene(NBR)
Product Code : DNBR152H65W
Product Grade : Basic Grade
Polymer : NBR / NR
Color : White
Size : 1 mm to 25 mm
Wisth : 1 meter, 1.2 meter
Status : In Stock
Mechanical and physical properties
Density (g/cm3) : 1.52
Tensile strength (MPa) : 5
Elongation at break (%) : 250
Hardness : 65 +/- 5 Shore A
Tear resistance (N / mm): 17
Compression recover (72 hours at 70° C) : 40%
PROWIN basic white NBR Rubber Sheet:
Basic NBR rubber sheet is made from 100% raw natural rubber and NBR, this basic NBR rubber sheet has a good resistance to mineral oil, is widely used in oil and gas industry and power plant. With temperatures ranging from -30 to 125 degrees Celsius NBR is also widely used in automotive seal and gasket. Basic white NBR rubber sheet is widely used in food processing, clean chemical tank rubber lining and gasket.

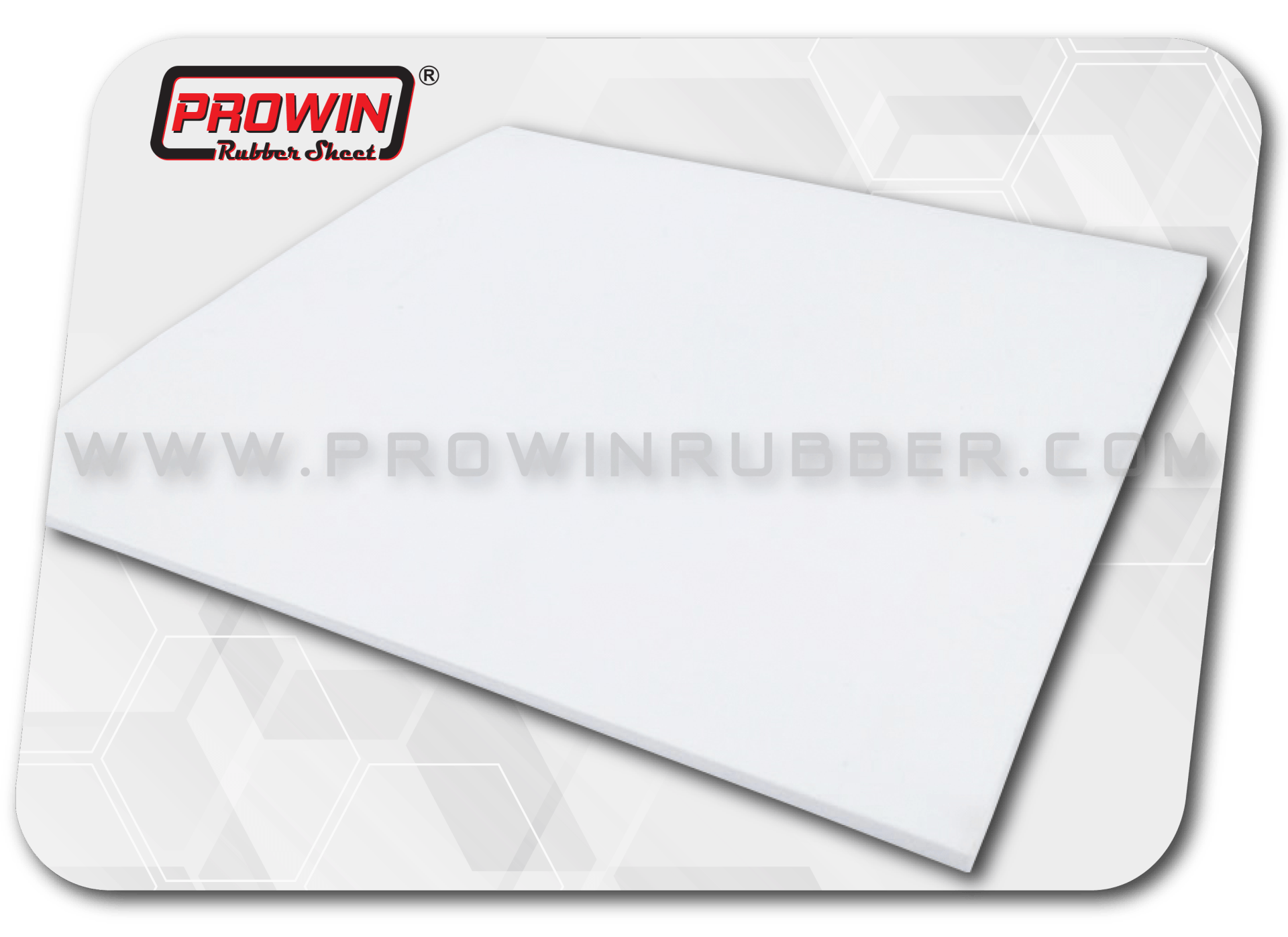

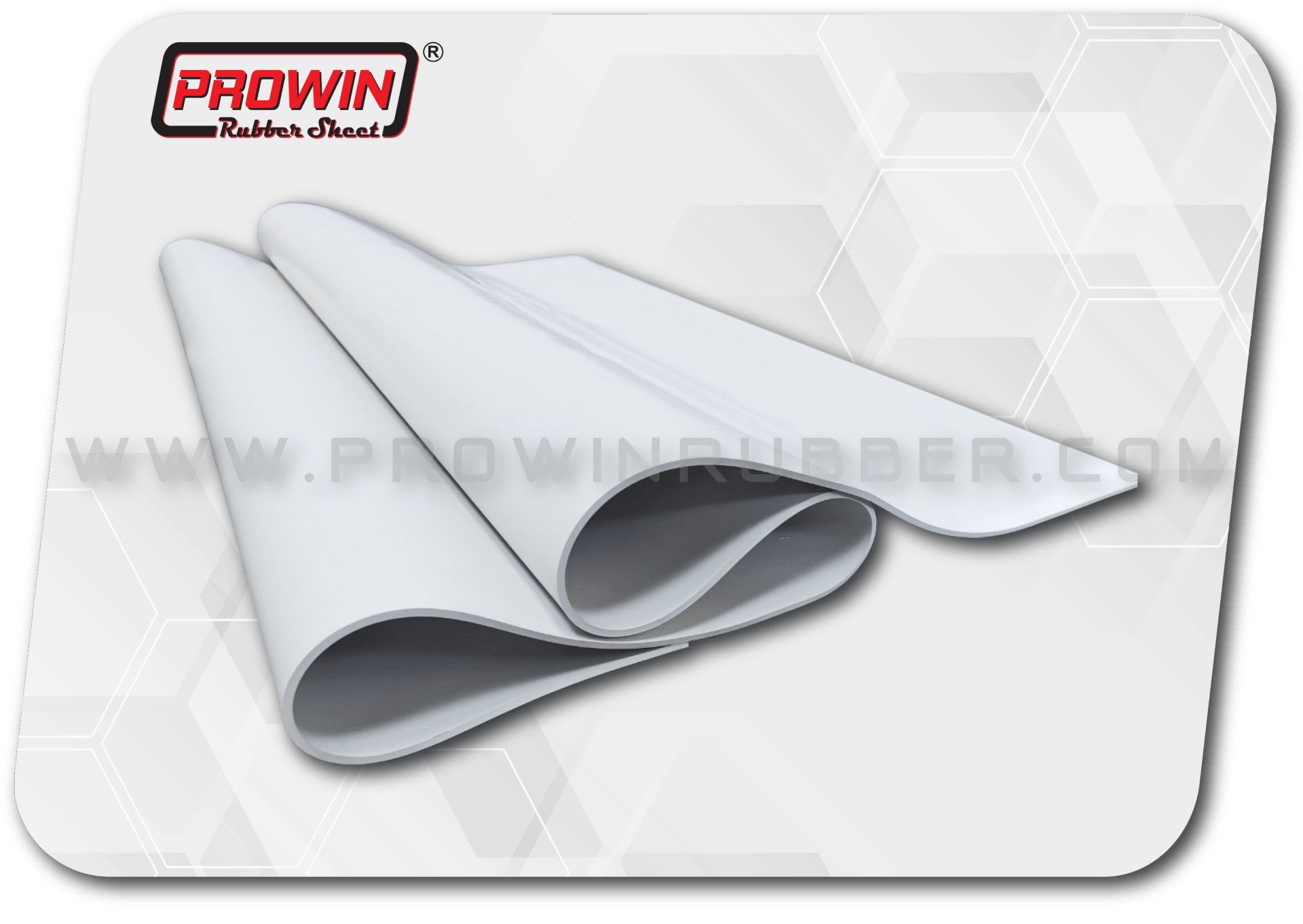

Rubber sheet sample image

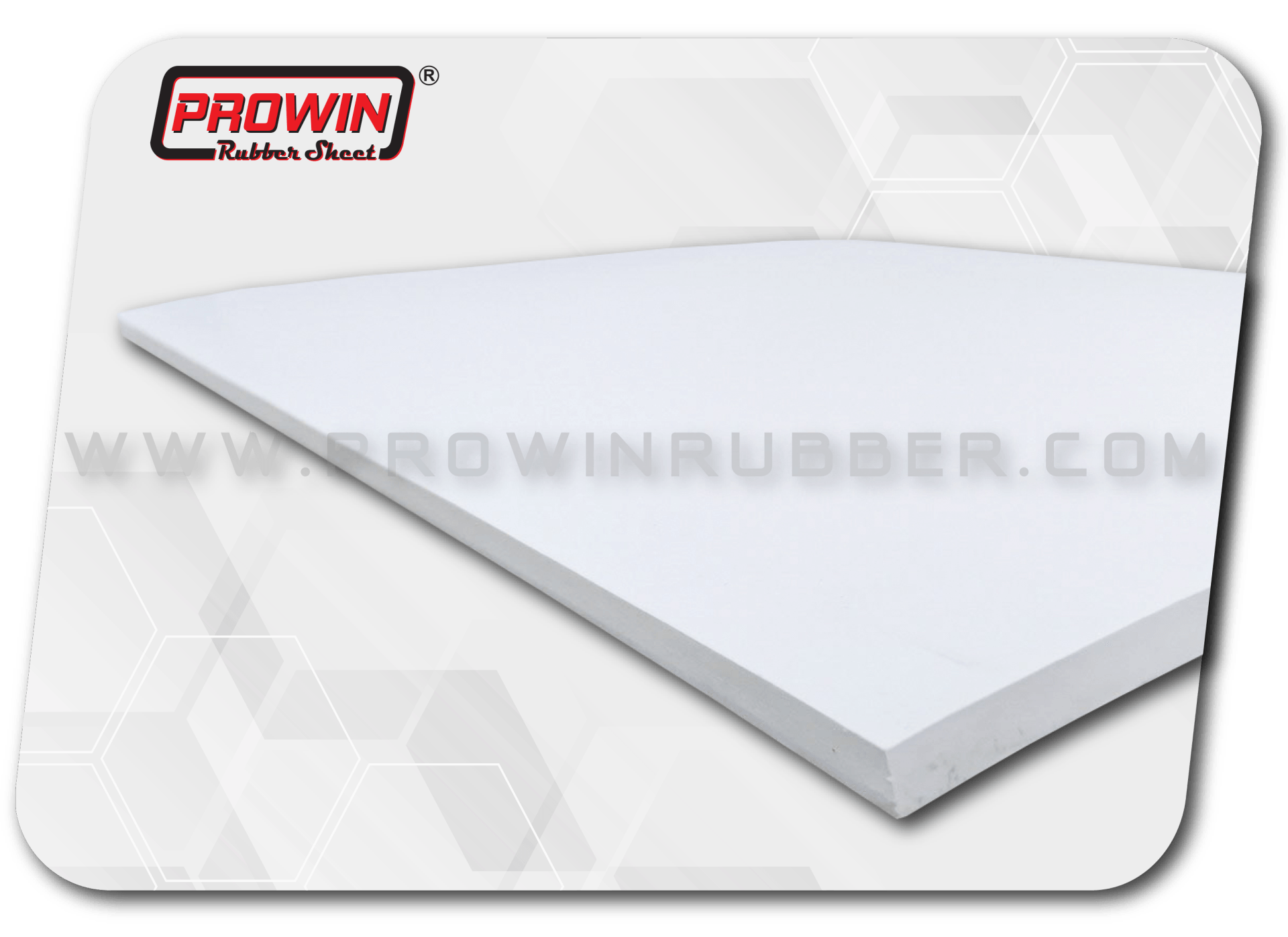

Side view

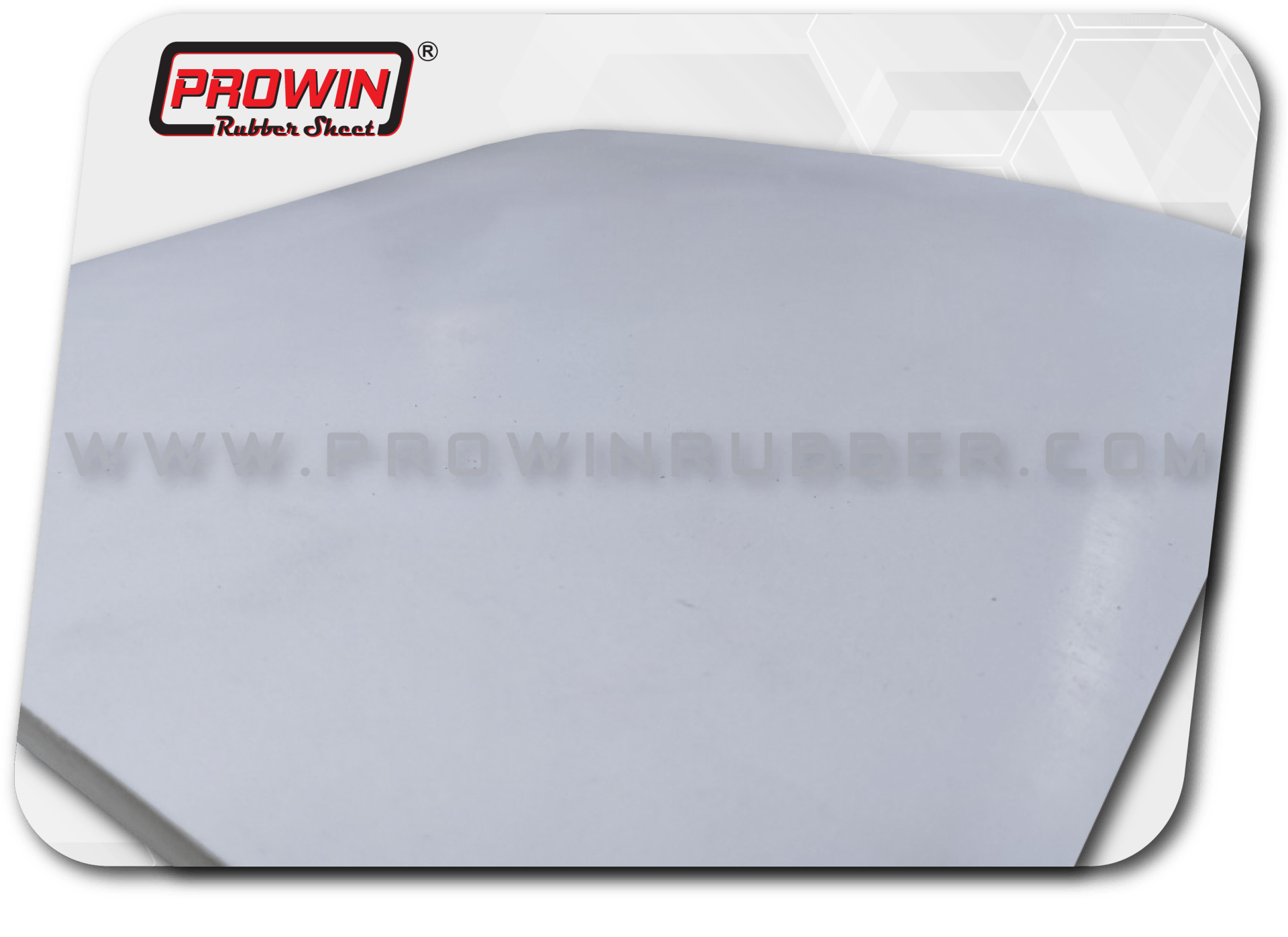

Sample image of rubber surface
Excellent oil resistance, good resistance to heat and aging and slow deterioration, good gas permeability, resistant to scraping, impact, and abrasion.
Application :
Carburetor and diaphragm gasket and seal applications, fuel pumps, rubber lining, seals and gaskets, pipes or oil lines for automotive air conditional.
Operating temperature :
- Low temperature range : -1 °C to -30 °C
- Continuous low temperature : -30 °C
- High temperature range : 80 °C to 100 °C
- Continuous high temperature : 100 °C
Performance :
Flammability resistance : 2
Gas permeability : 3
Ozone resistance : 5
Oxidation resistance : 5
Weather resistance : 6
Water resistance : 6

Score rate :
6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
