PROWIN Rubber Sheet Logo
NR White Rubber Sheet (DNR150H65W)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Natural rubber (NR) sheet
Product Name : Natural Rubber Sheet
Product Code : DNR150H65W
Product Grade : Basic Grade
Polymer : NR
Color : White
Size : 1 mm to 25 mm
Width : 1 meter, 1.2 meter
Status: In Stock
Mechanical and physical properties
Density (g/cm3) : 1.50
Tensile strength (MPa) : 6
Elongation at break (%) : 250
Hardness : 65 +/- 5 Shore A
Tear resistance (N/mm) : 18
Compression recovery ( 72 hours at 70°C) : 40%
PROWIN basic white natural rubber Sheet (NR) - DNR150H65W
Basic Natural Rubber Sheet (NR) is made from 100% raw natural rubber which can better withstand scratches, bumps, and friction, it's  excellent elongation and tensile strength makes it widely used in mining rubber lining, gasket, abrasion resistance, bumper impacts absorbance, rubber lining for chemical tank. White rubber sheet is use especially in food processing and clean environment application.

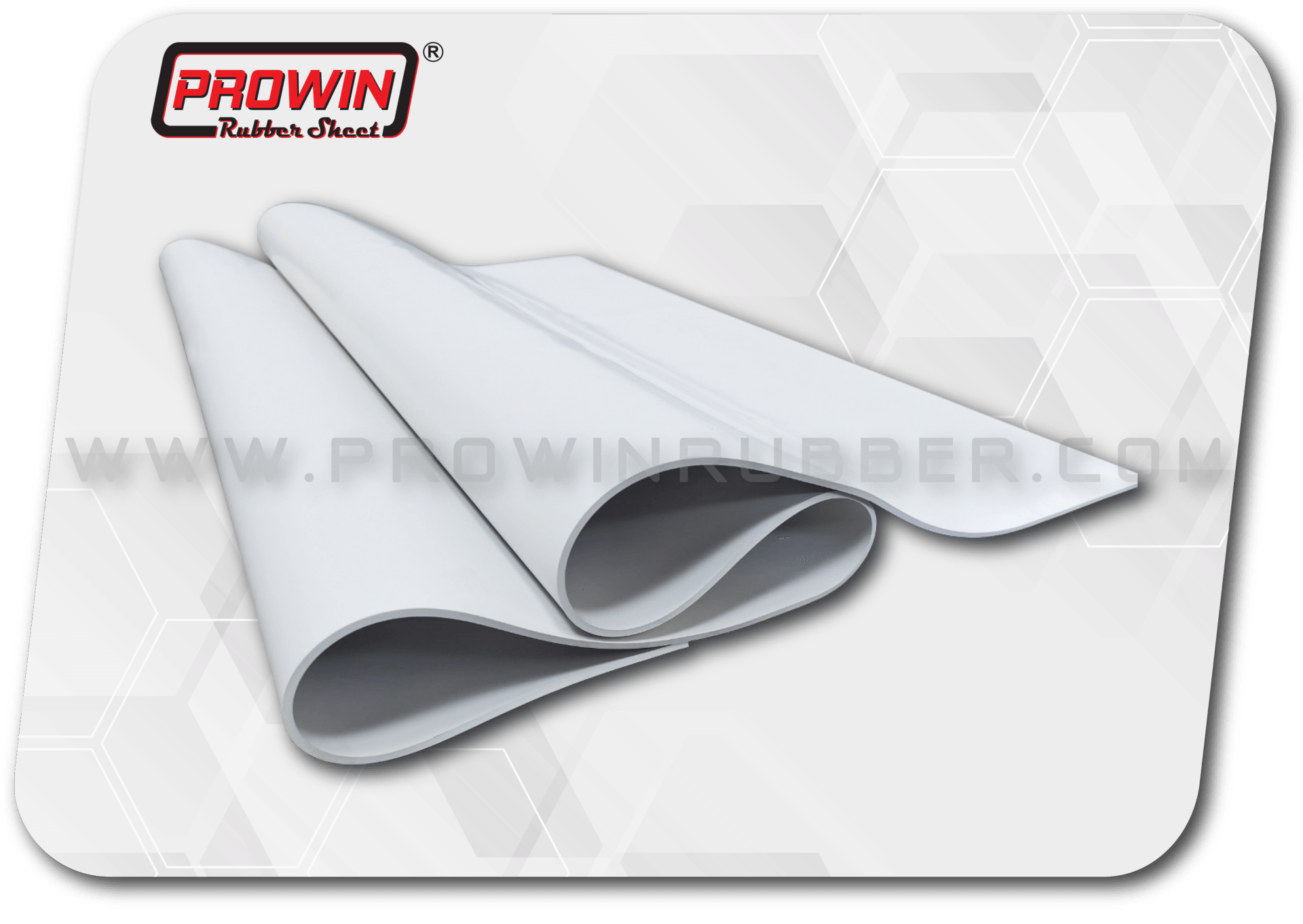

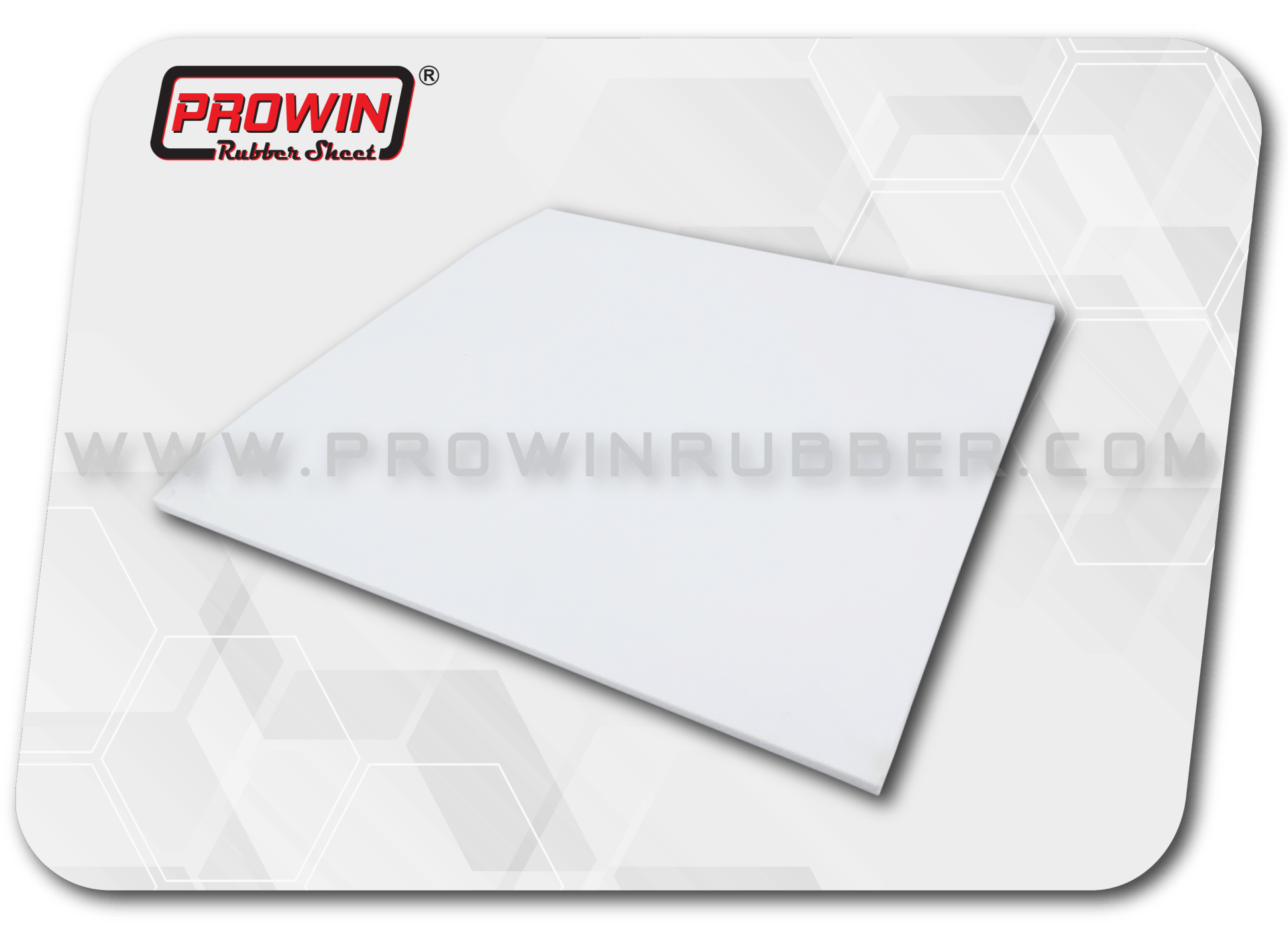

Rubber sheet sample image

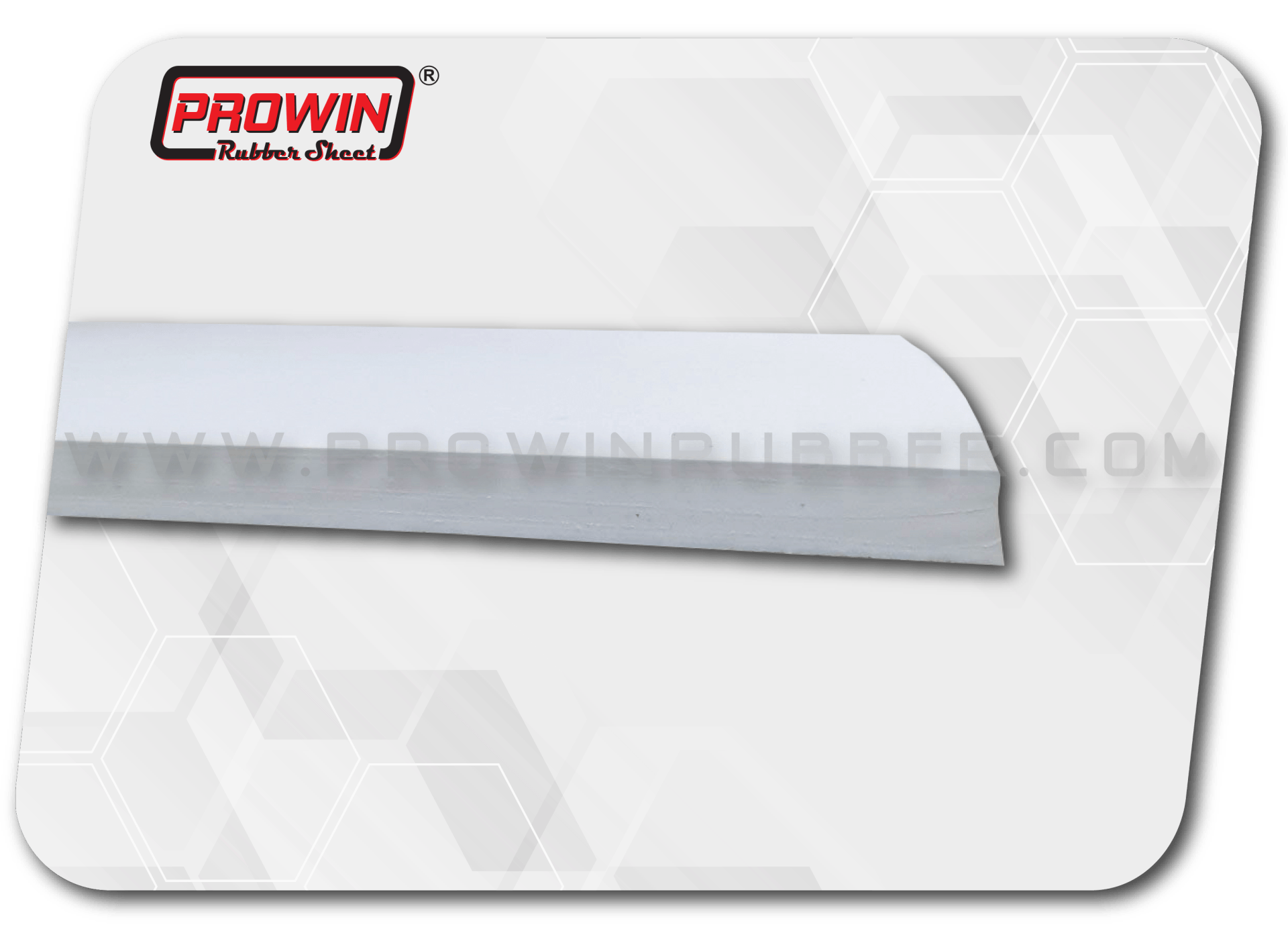

Side view

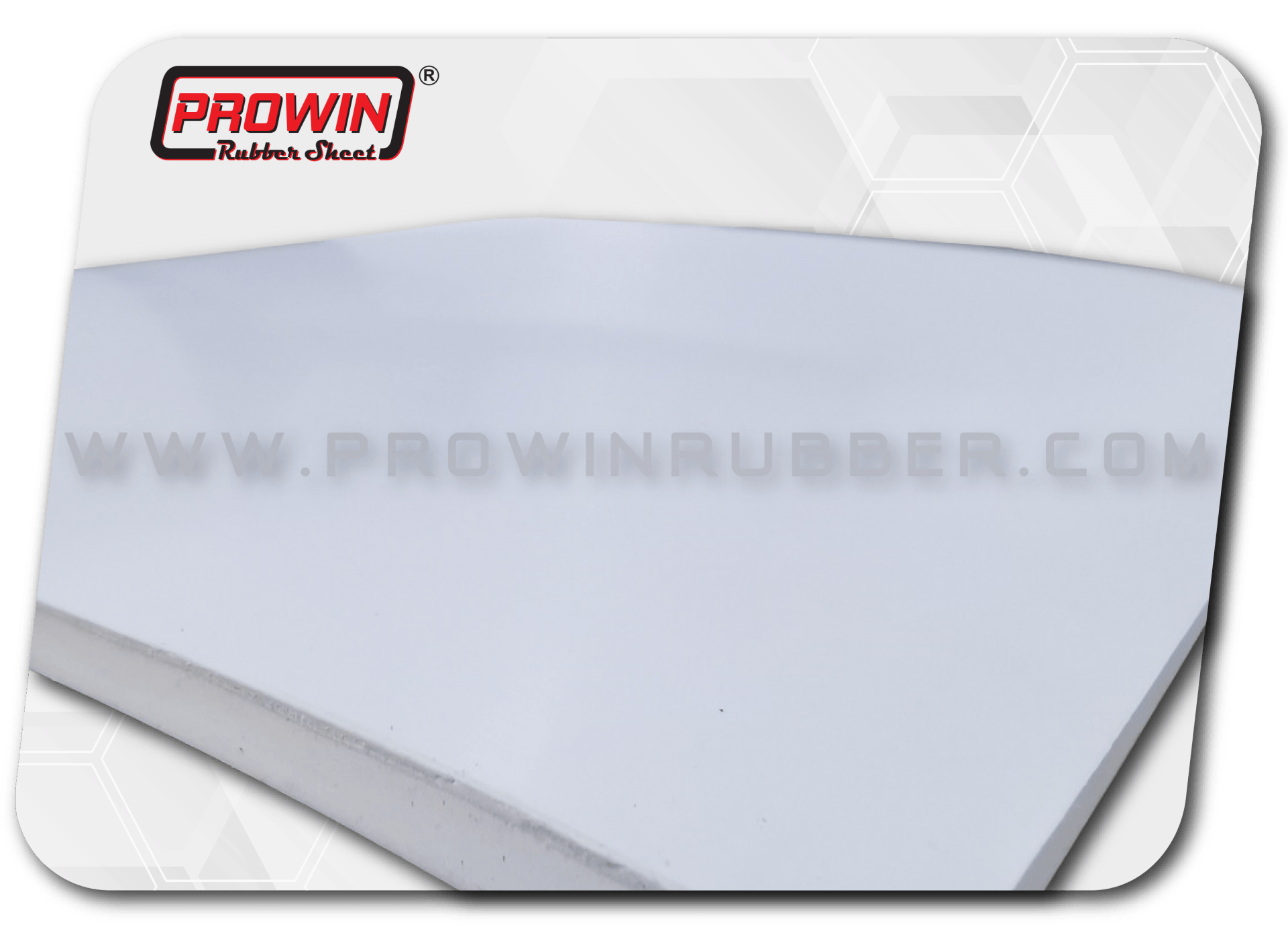

Sample image of rubber surface
Good resistance to scratches, bumps, friction, excellent impact resistance, cutting and tearing, excellent tensile strength, high flexibility
Applicetion :
Tank coating applications, slurry handling, coating tubes, coating pumps Chute valve coating, production of coated belts Hydrocyclones coated with a skirt board covered with Pulley
Operating temperature :
- Low temperature range: -1 °C to -30 °C
- Continuous low temperature : -20 °C
- High temperature range: 70 °C to 90 °C
- Continuous high temperature : 90 °C
Performance :
Flammability resistance : 0
Dry and wet abrasion : 6
Gas permeability : 3
Ozone resistance : 1
Oxidation resistance : 4
Weather resistance : 1
Water resistance : 6

Score rate:
6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
