Chloroprene Rubber Sheet (CR-Neoprene)
Product Name : Chloroprene(CR) Rubber Sheet
Product Code : DCR153H65B
Product Grade : Basic Grade
Polymer : CR / NR
Color : Black
Size : 1 mm to 25 mm
Width : 1 meter, 1.2 meter, 1.4 meter, 1.5 meter
Status : In Stock
Mechanical and physical properties
Density (g/cm3) : 1.53
Tensile strength (MPa) : 5
Elongation at break (%) : 250
Hardness : 65 +/- 5 Shore A
Tear resistance (N/mm) : 17
Compression recovery (72 hours at 70 °C) : 40%
PROWIN basic Chloroprene Rubber(CR) - DCR153H65B
Basic Chloroprene(CR) Rubber or Neoprene Rubber is a rubber that has good wear-resistance property, ozone and UV resistance, it's abrasion resistance and crack resistance make it very suitable for outdoor application like bridge bearing. CR rubber flame retardant ability make it widely use in circuit box seal, flexible connectors.

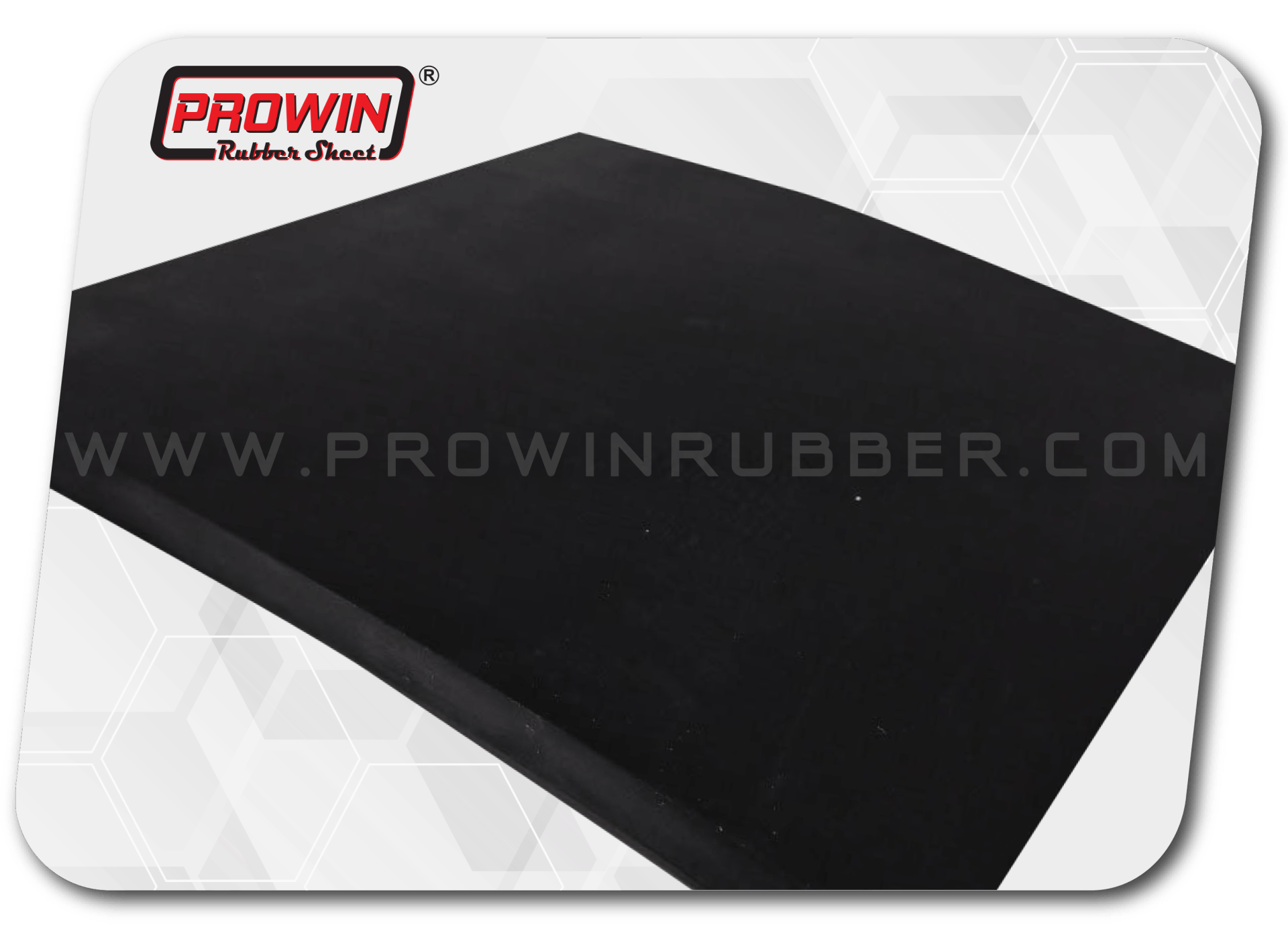

Rubber sheet sample image

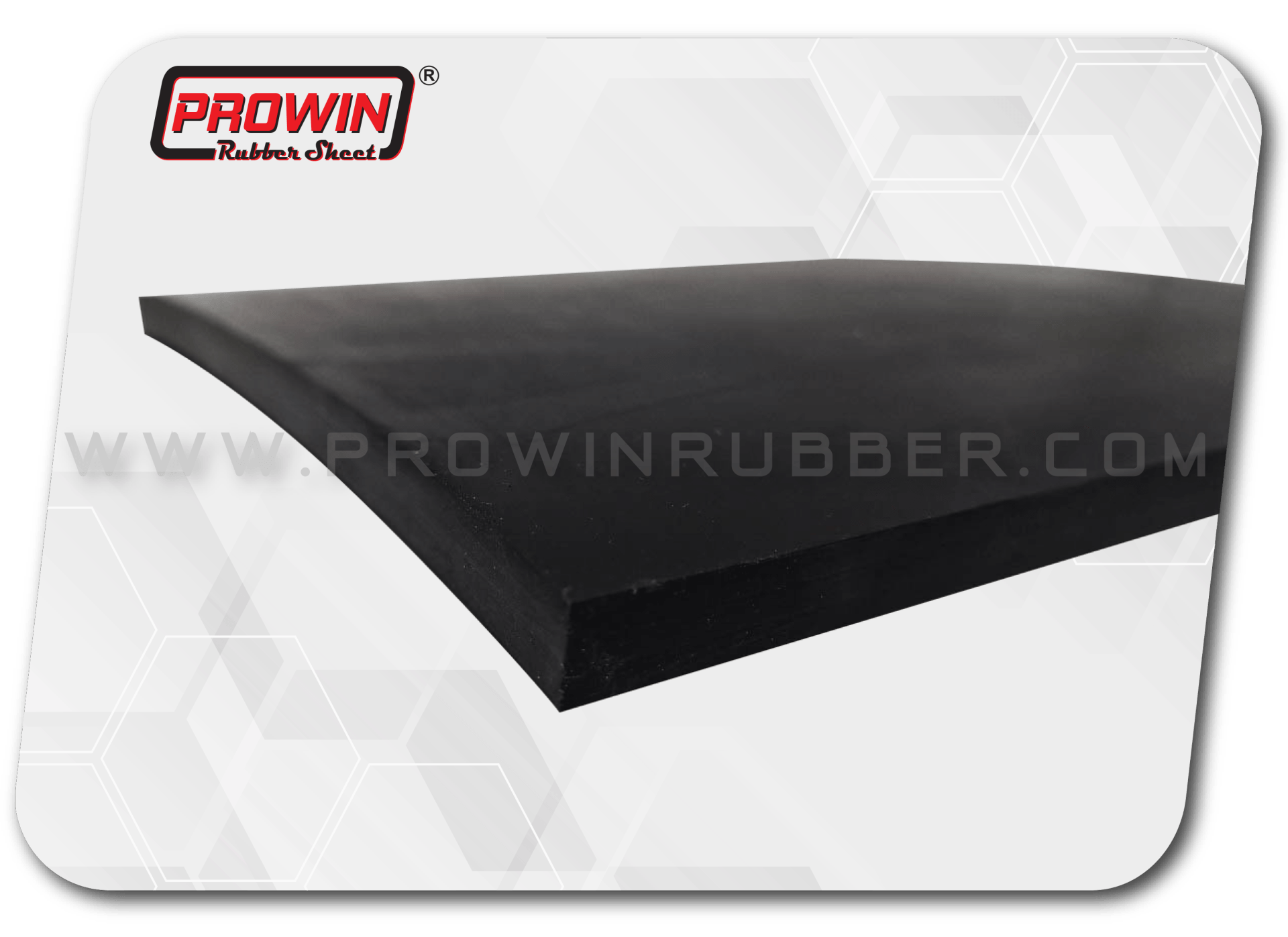

Side view

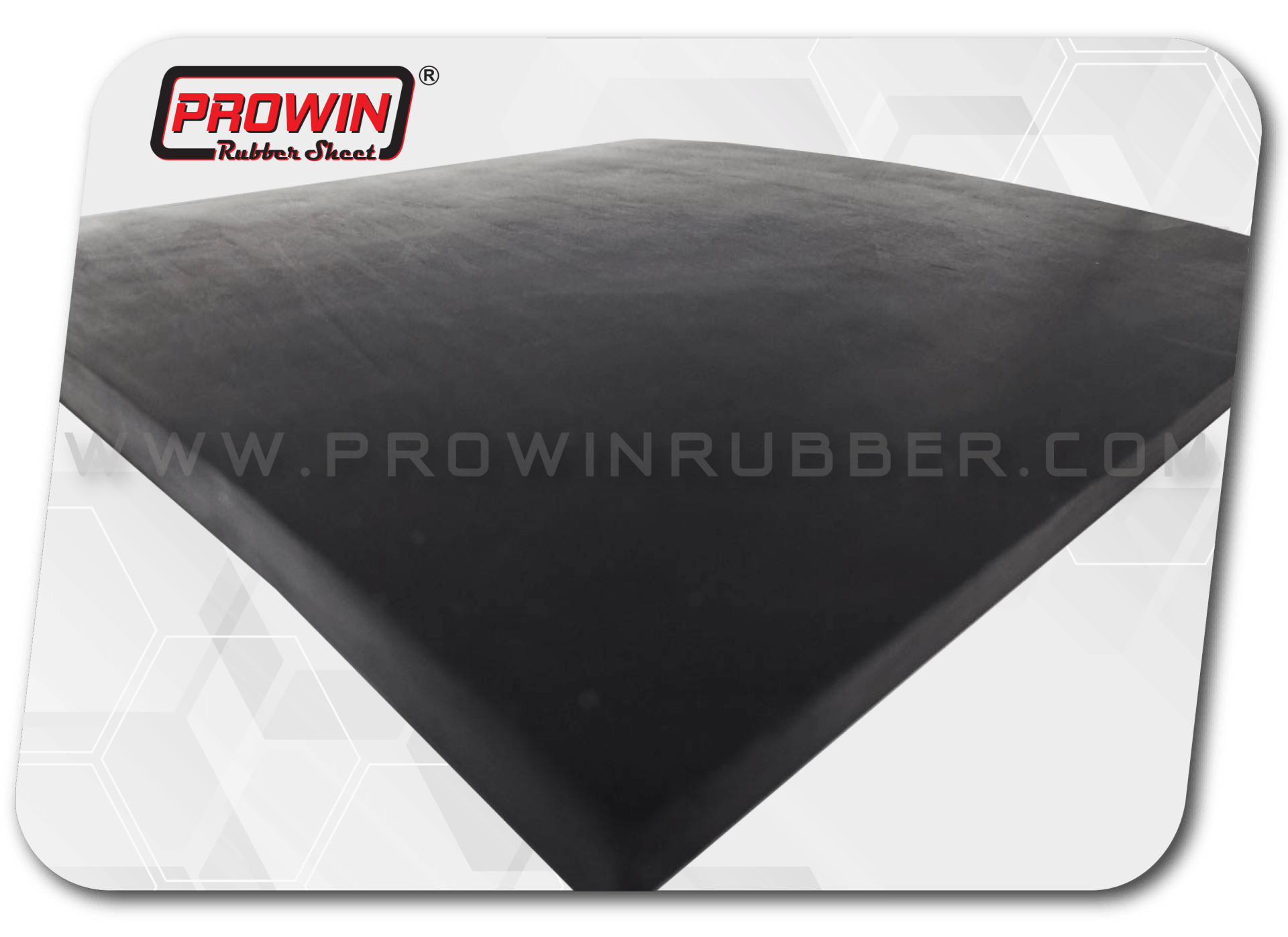

Sample image of rubber surface
Good abrasion and crack resistance, moderate oil resistance, acid and alkali resistance, good abrasion resistance
Applications :
Bridge bearing, rubber lining for chemical container, flame retardant application.
Operating temperature :
- Low temperature range : -1 °C to -20 °C
- Continuous low temperature : -20 °C
- High temperature range : 60 °C to 80 °C
- Continuous high temperature : 80 ° C
Performance
Flammability resistance : 5
Gas permeability : 3
Ozone resistance : 5
Oxidation resistance : 5
Weather resistance : 6
Water resistance : 6
Score rate :
6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
