PROWIN Rubber Sheet
- RUBBER SHEET YOU CAN TRUST -
NR / SBR rubber sheet
Product Name : Natural Rubber Sheet
Product Code : SG170H65B
Product Grade : Commercial Grade
Polymer : NR/SBR
Color : Black
Size : 1 mm to 25 mm
Width : 1 meter, 1.2 meter
Status : In Stock
Mechanical and physical properties
Density (g / cm3) : 1.70
Tensile strength (MPa) : 2
Elongation at break (%) : 120
Hardness : 65 +/- 5 Shore A
PROWIN commercial grade natural rubber sheet (NR) / SBR (SG170H65B)
Commercial Grade NR rubber sheet is a general purpose rubber sheet suitable for general application and normal environment. It has been commonly use for water resistant, none crucial gasket, machinery cushion pad, or anti skid sheet for factory floor.
Hardness - 65 +/- 5 Shore A
Tensile strength - 2.0 Mpa
Surface - Smooth
Materials: Main components such as styrene butadiene rubber(SBR) and carbon black. Sub-components such as zinc oxide, sulfur, catalyst (<1%) and antioxidants or stabilizers (<1%).

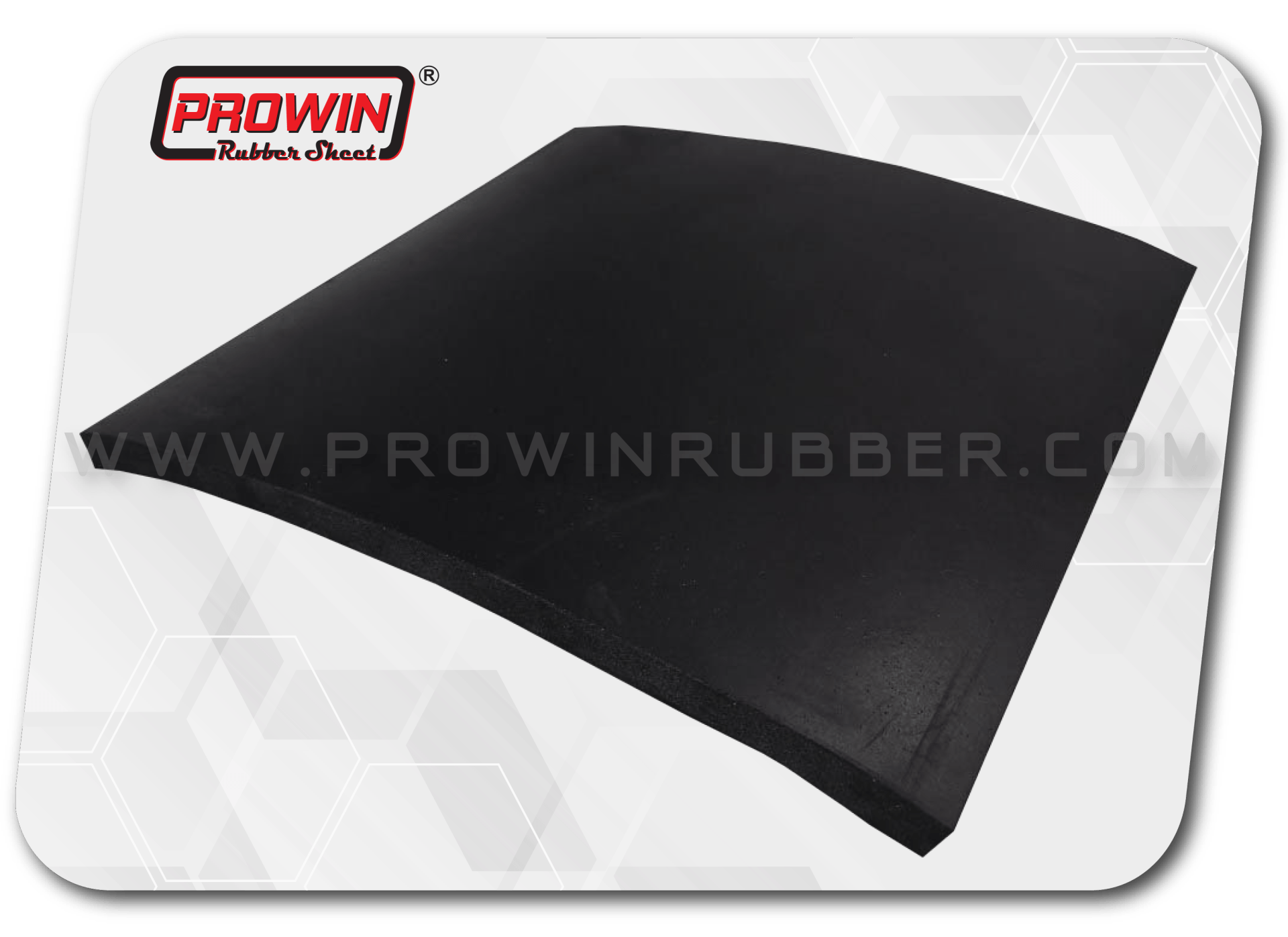

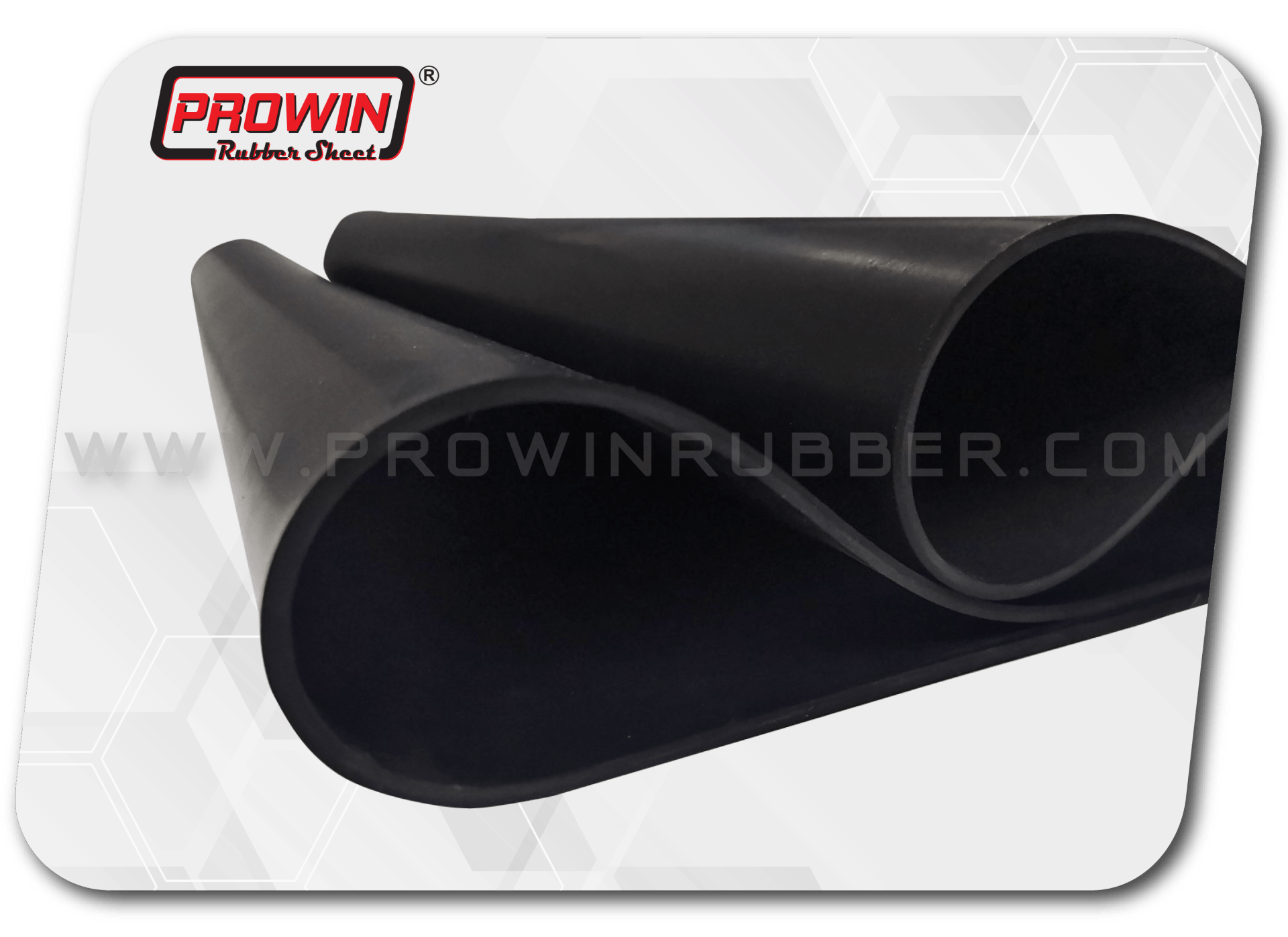

Rubber sheet sample image

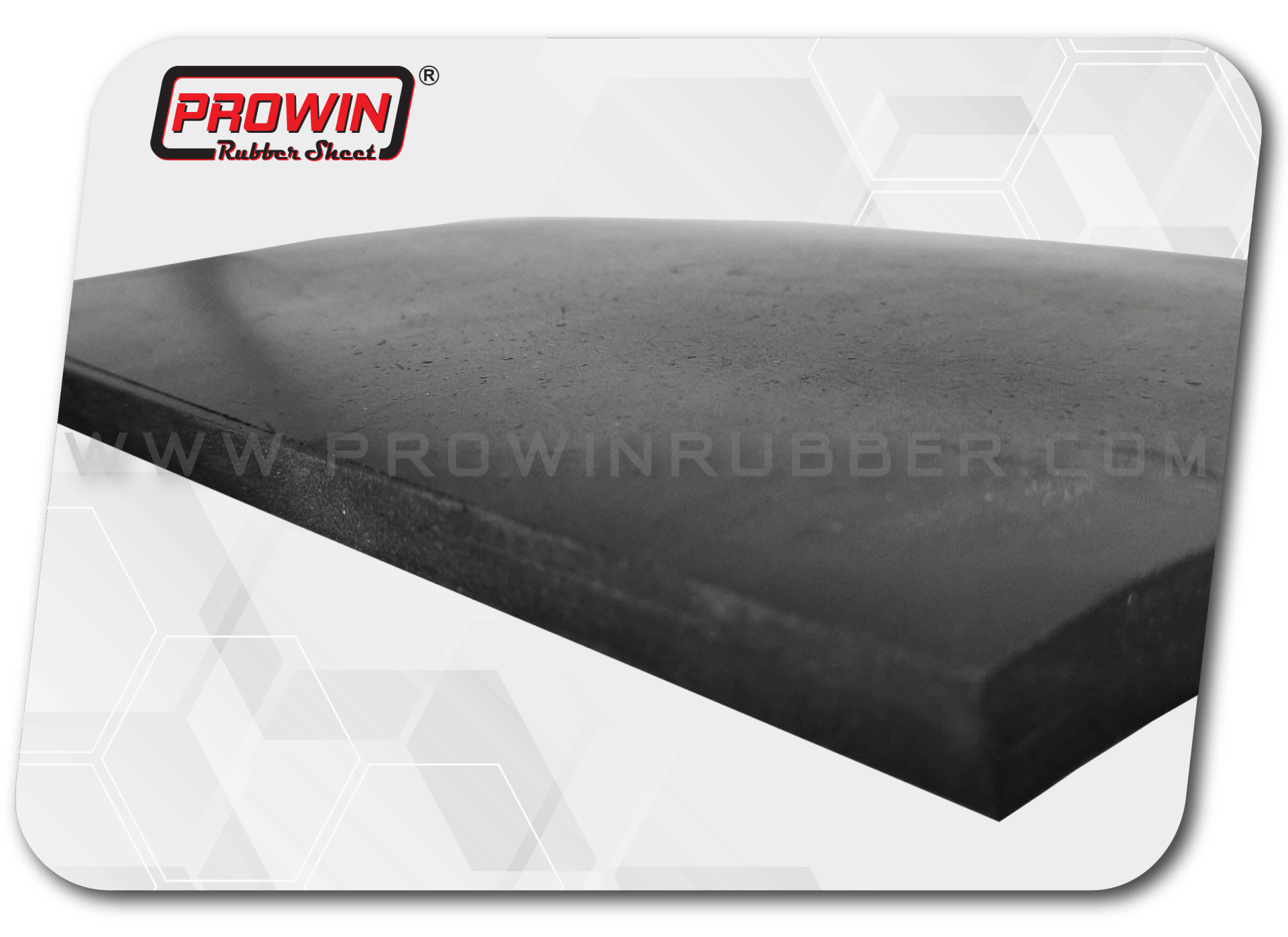

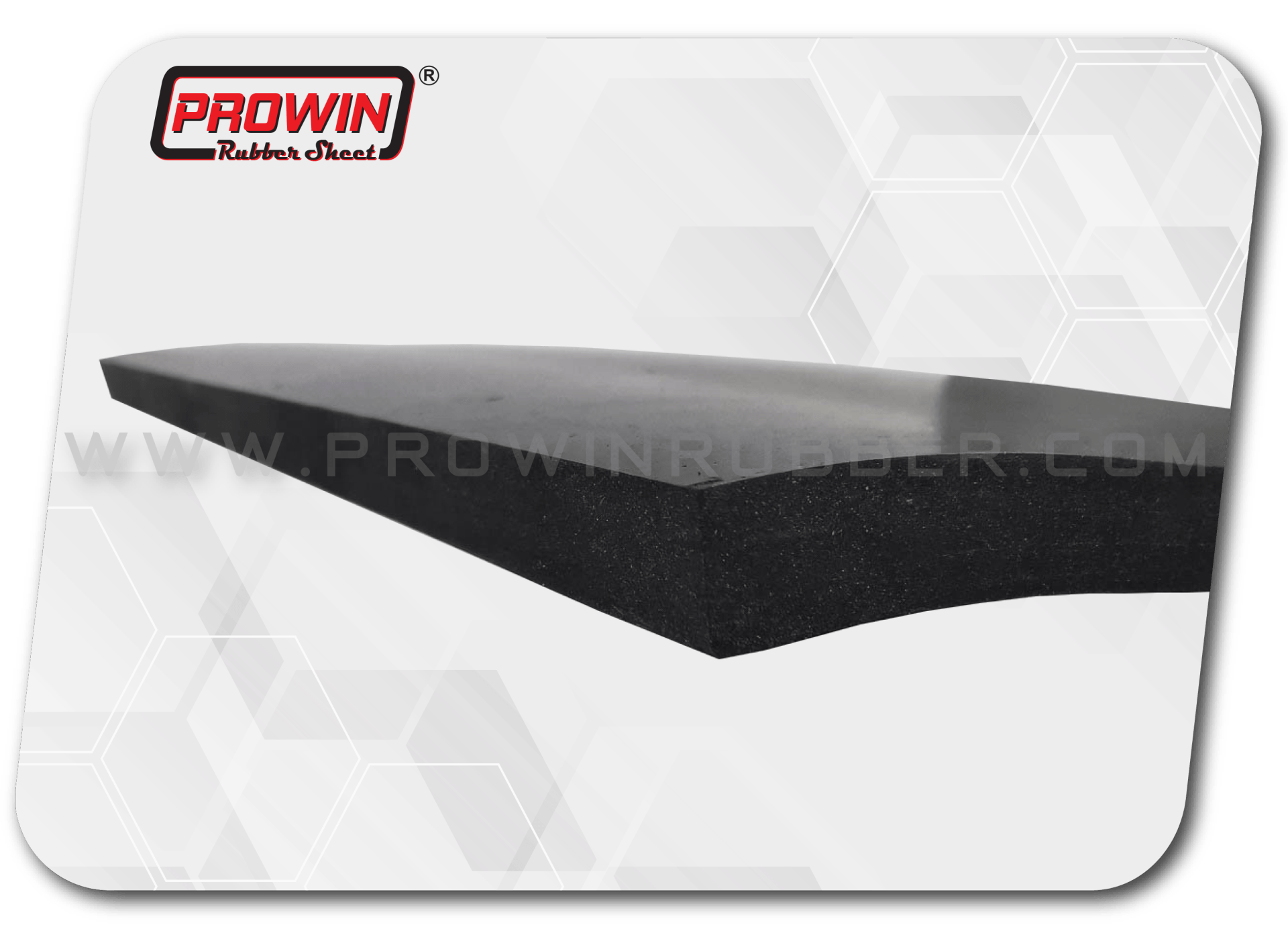

Side view
Sample image of rubber surface
Applications
- Use in water resistance applications
- Use in diluted mild chemicals
- None crucial rubber seals
- None crucial rubber gaskets
Operating temperature :
- Low temperature range: -1 °C to -20 °C
- Continuous low temperature : -20 °C
- High temperature range: 50 °C to 70 °C
- Continuous high temperature : 70 °C
Related products (Commercial grade rubber sheet, NR rubber sheet)

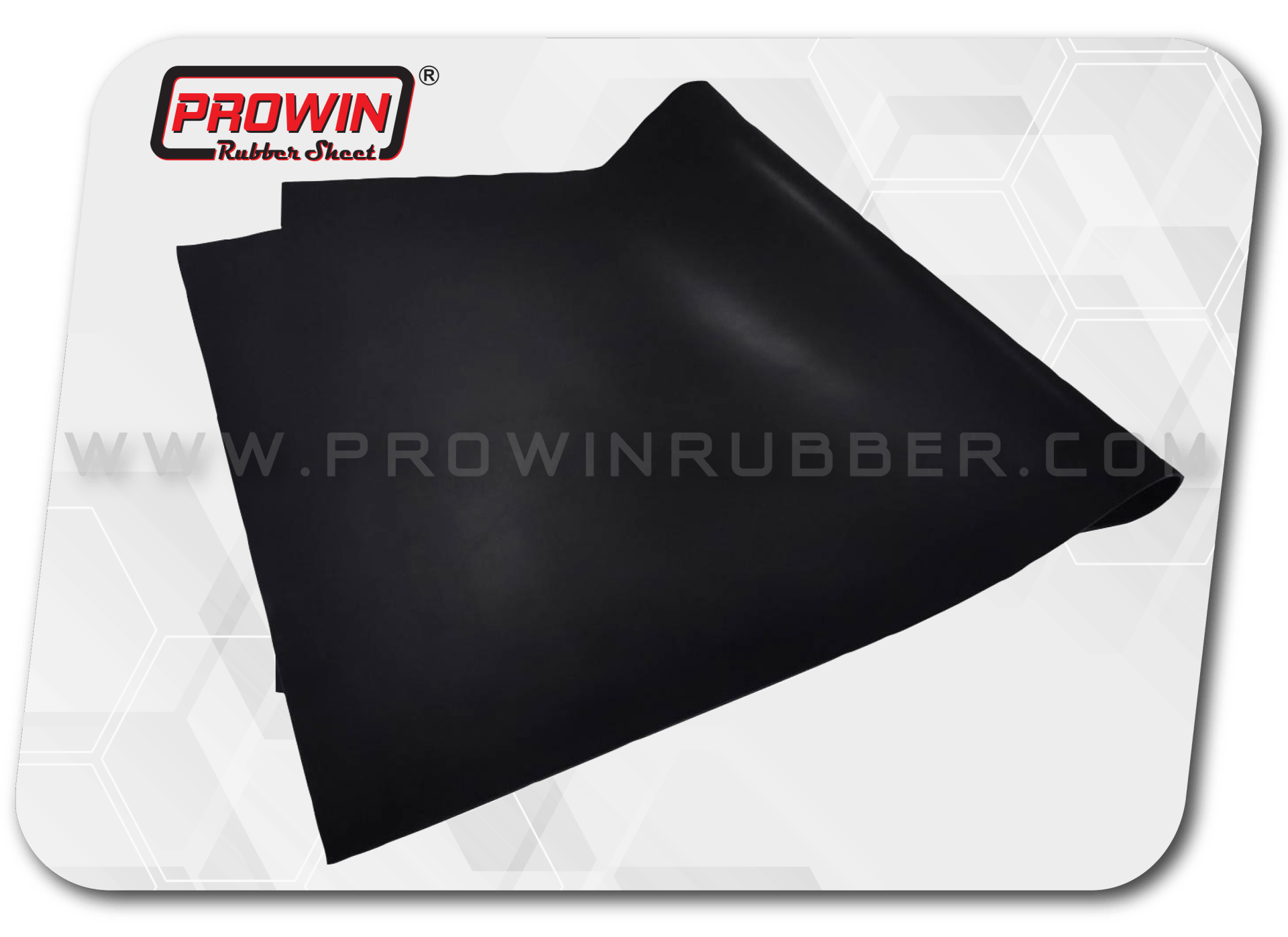

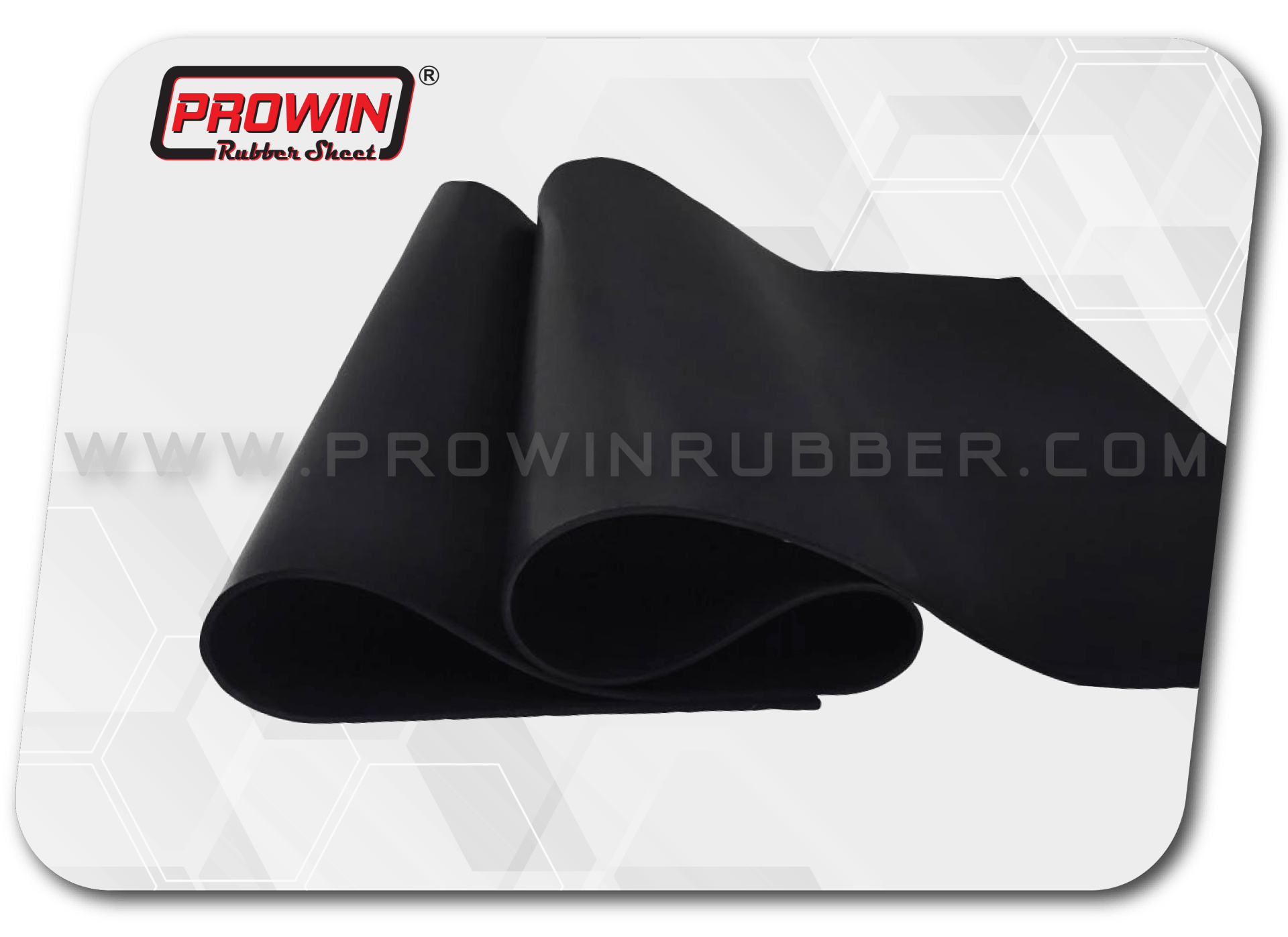

NR / SBR Rubber Sheet (SGNR150H65B)
Hardness range: 65 +/- 5 Shore A

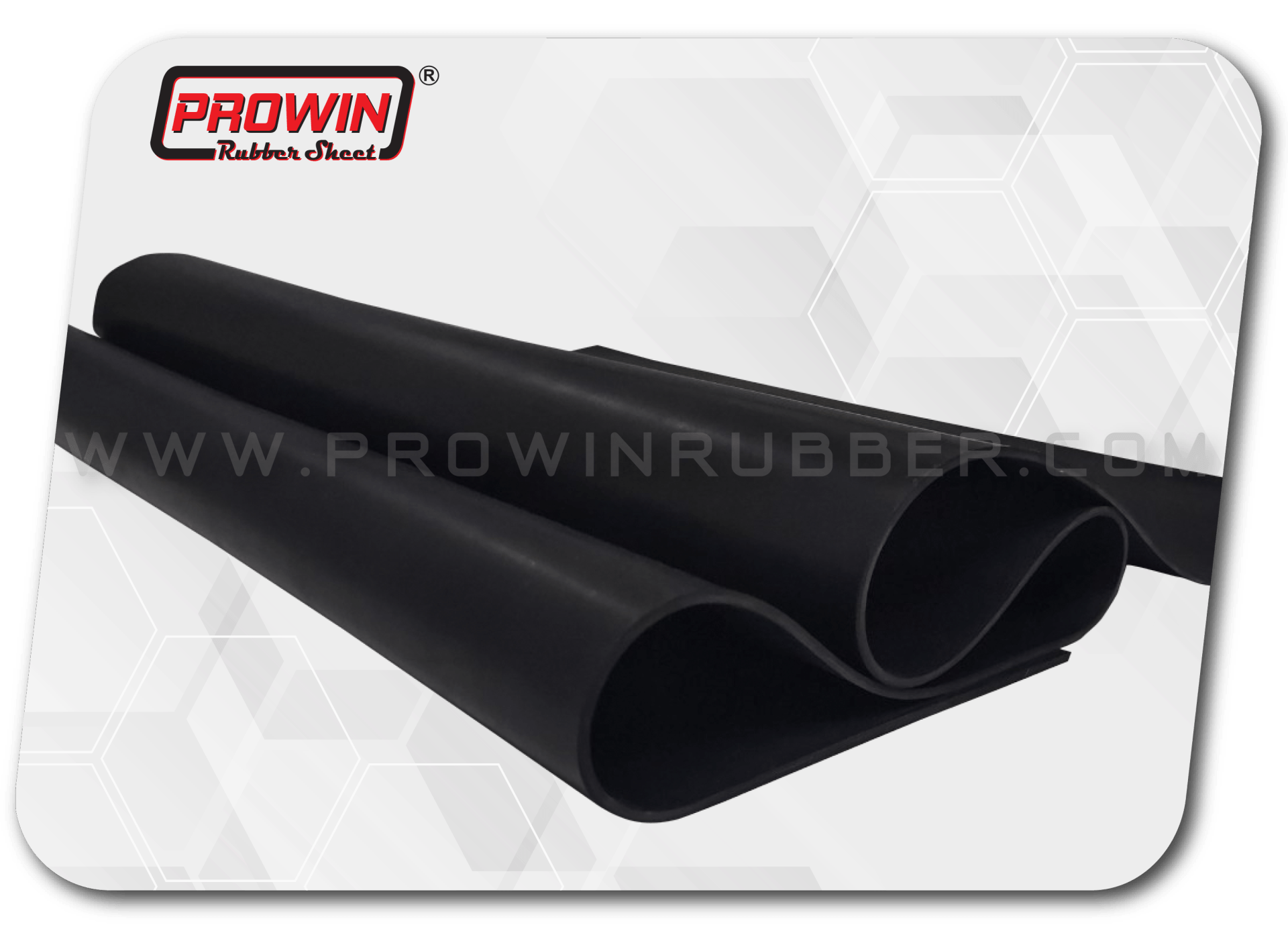

EPDM / SBR Rubber Sheet (SGEP149H65B)
Hardness range: 65 +/- 5 Shore A
NBR / SBR Rubber Sheet (SGNBR148H65B)
Hardness range: 65 +/- 5 Shore A

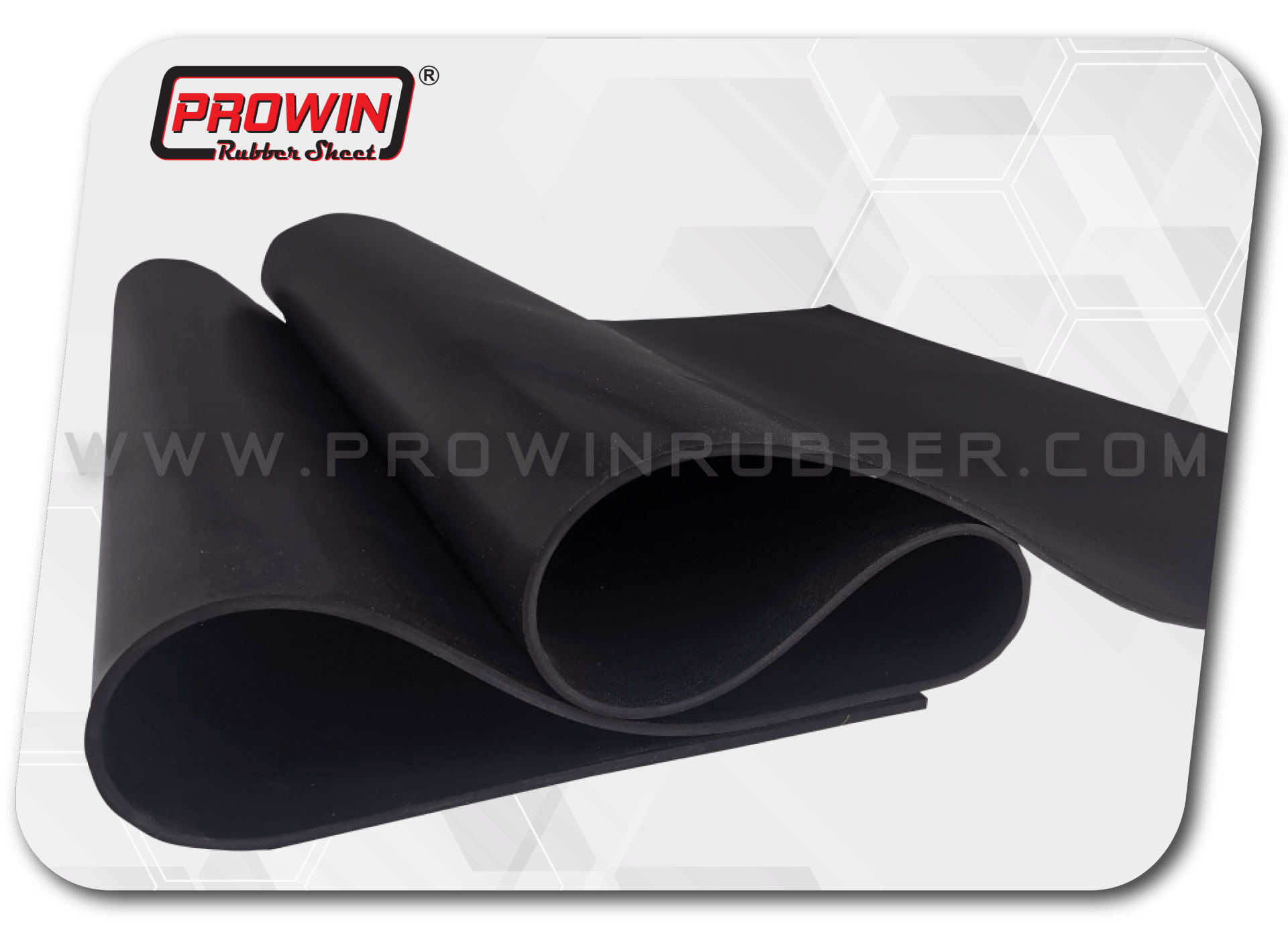

CR / SBR Rubber Sheet (SGCR151H65B)
